Water Supply System with two Horizontal Straight Centrifugal

Domestic Pump

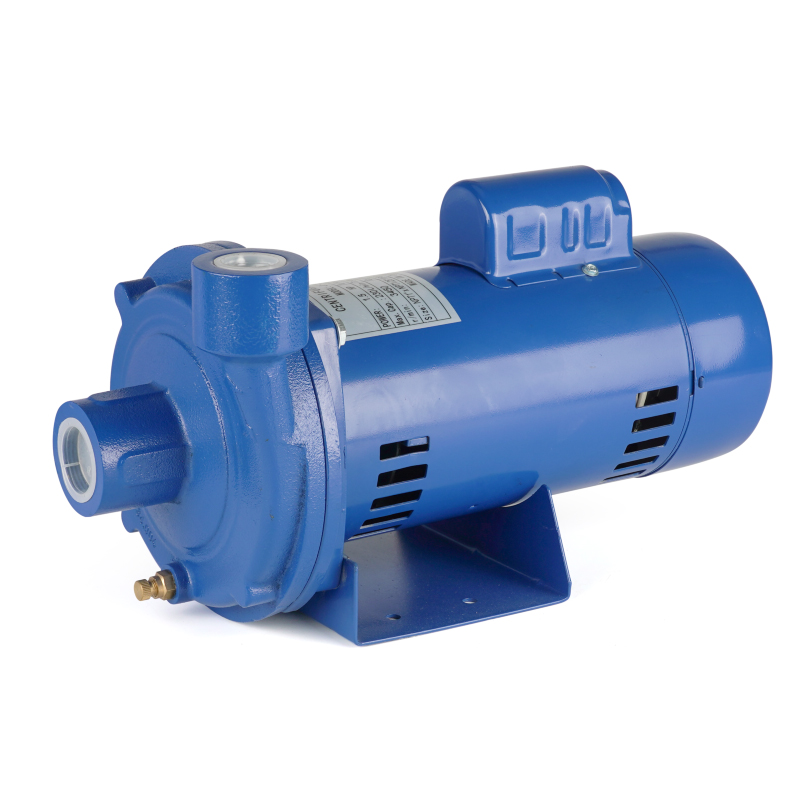

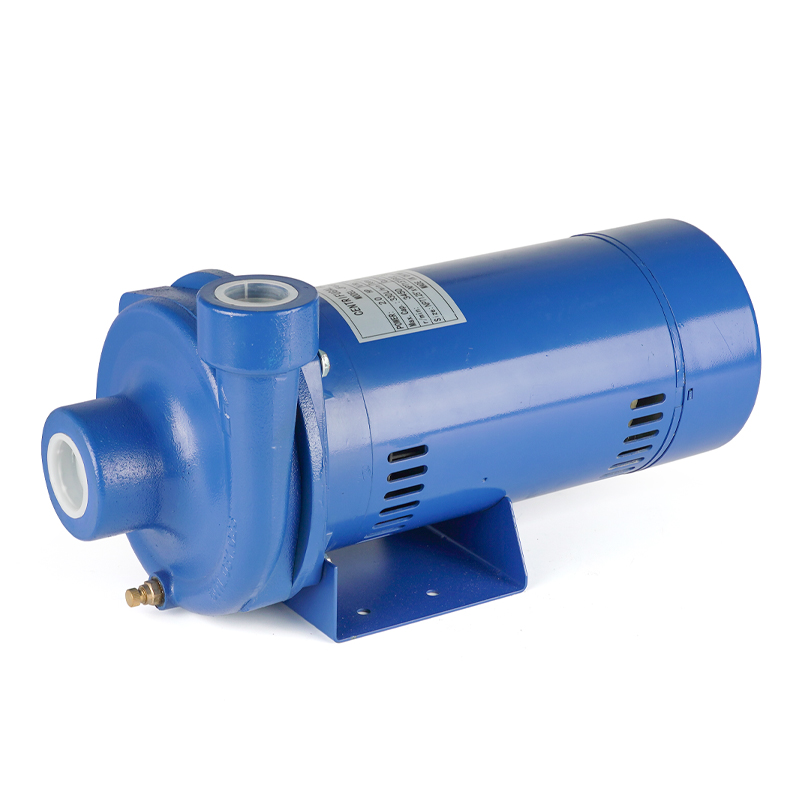

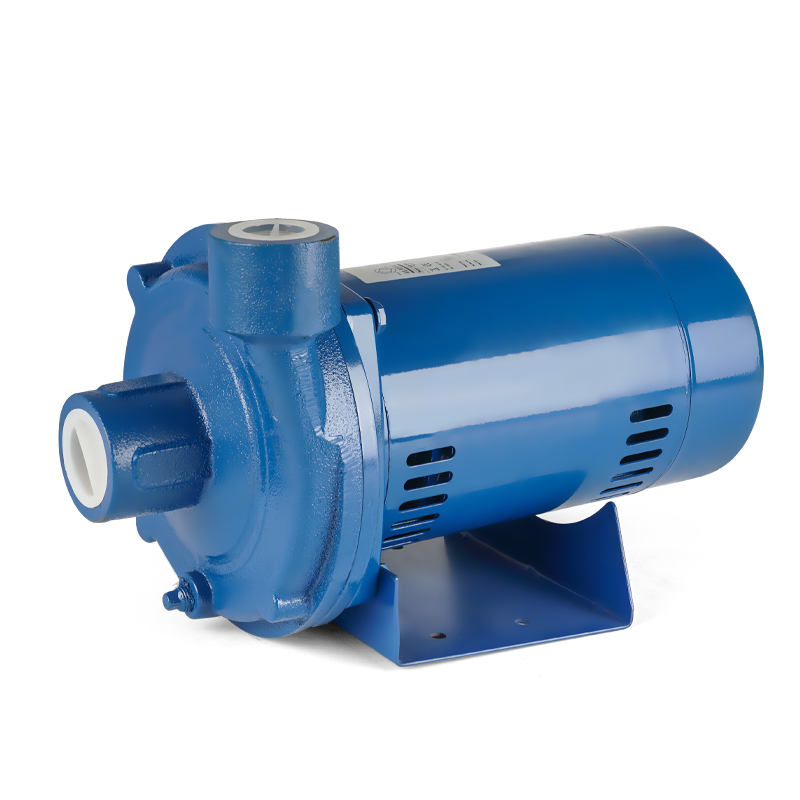

ACP series straight centrifugal pumps with single impeller are able to offer good flow rate,
and provide smooth, non-pulsating dilivery, and regulate the flow rate on a large scale
without damaging the pumps.
For the correct functioning of the pumps, transport clean
water or non-aggressive liquid charged with small solid impurities.
They are used in villa
water supply, water booster system, flow irrigation system, gardening, agriculture irrigation,
and household application.

● Max. Head up to 100ft

● Flow rate up to 90 USGPM
● Pump body: Cast Iron
● Impeller: PPO or Brass + Brass nut
● Mechanical seal: Carbon/ceramic
● Total suction lift up to 8m
● Inlet and outlet: G or NPT threads available
● Single phase motor with start/run capacitor, ODP
● S1 Continuous work
● Motor housing: Rugged steel
● Shaft: 2Cr13 or SS304
● Insulation:class F
● Medium Temperature: ≤60℃
● Ambient Temperature: ≤60℃

Chat Now Inquiry Now Add to My Favorite List Download Catalog
  • Product Details
  • 50Hz product parameter
  • 60Hz product parameter
  • Videos
  • Q&A

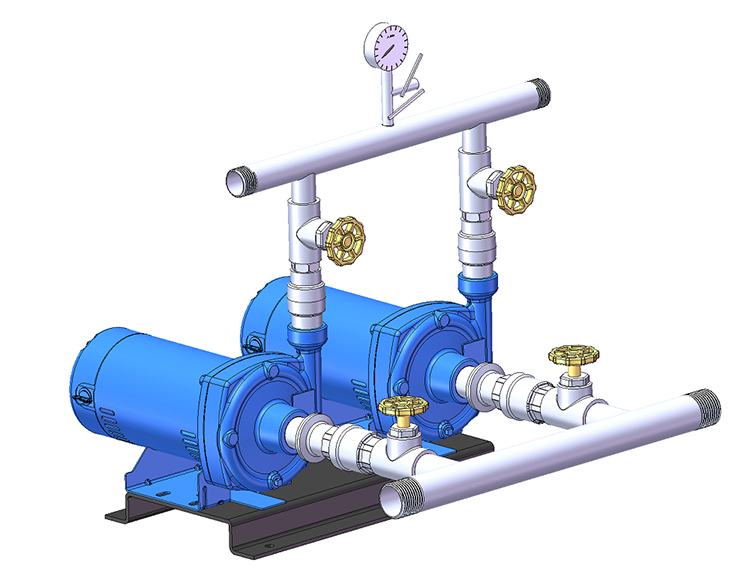

Water Supply System with two ACP straight centrifugal pumps



All kinds straight centrifugal pump






Installion




We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced Water Supply System with two Horizontal Straight Centrifugal suppliers and wholesale Water Supply System with two Horizontal Straight Centrifugal manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
