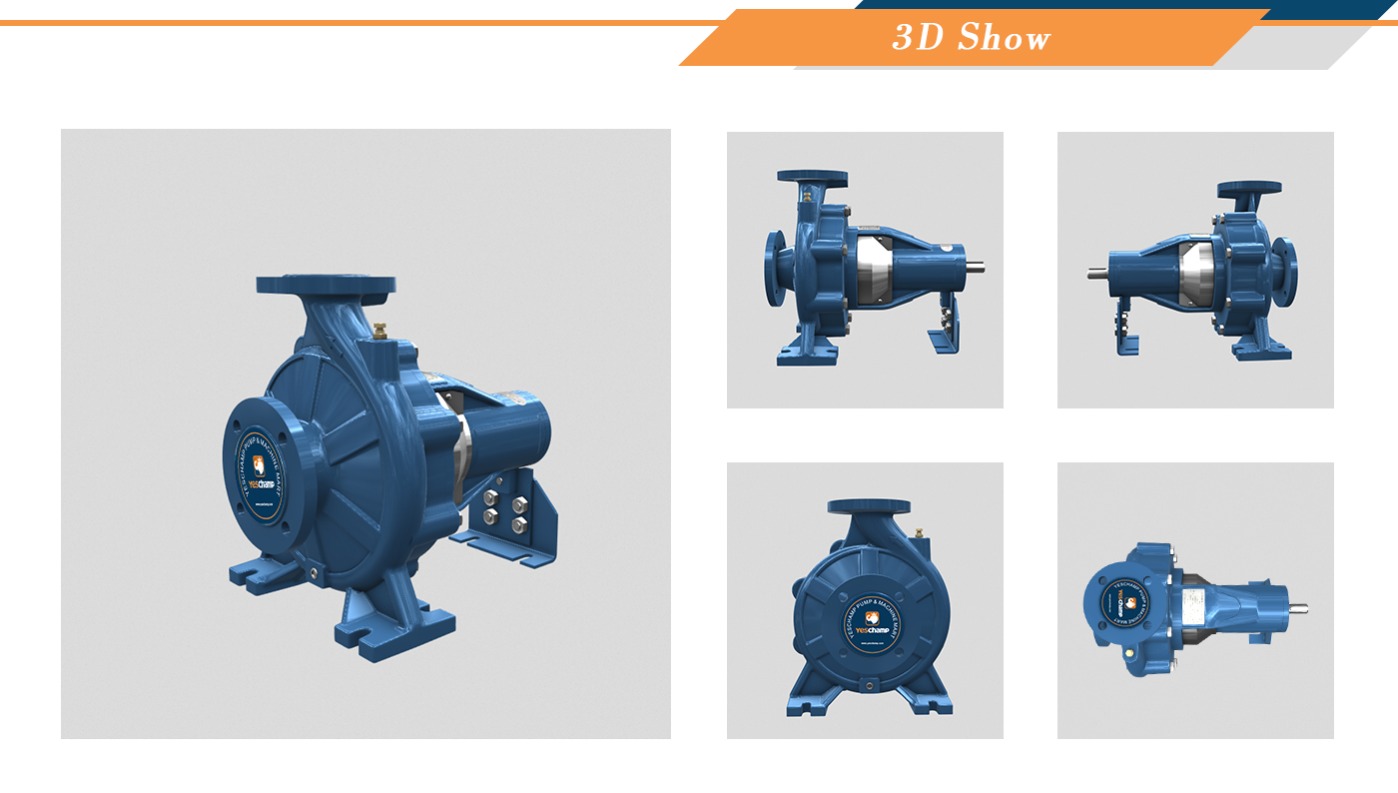

Horizontal Bare Shaft Pump Centrifugal Pump

Industrial Pump

DN Range of Suction Pipe: 50-300 mm (2"-12")
DN Range of Discharing Pipe: 32-250 mm (1.5"-10")
Flow Capacity Range: 0-1500m3/h
Head/Pressure Range: 0-164 m
Power Range: 0.75-315 Kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

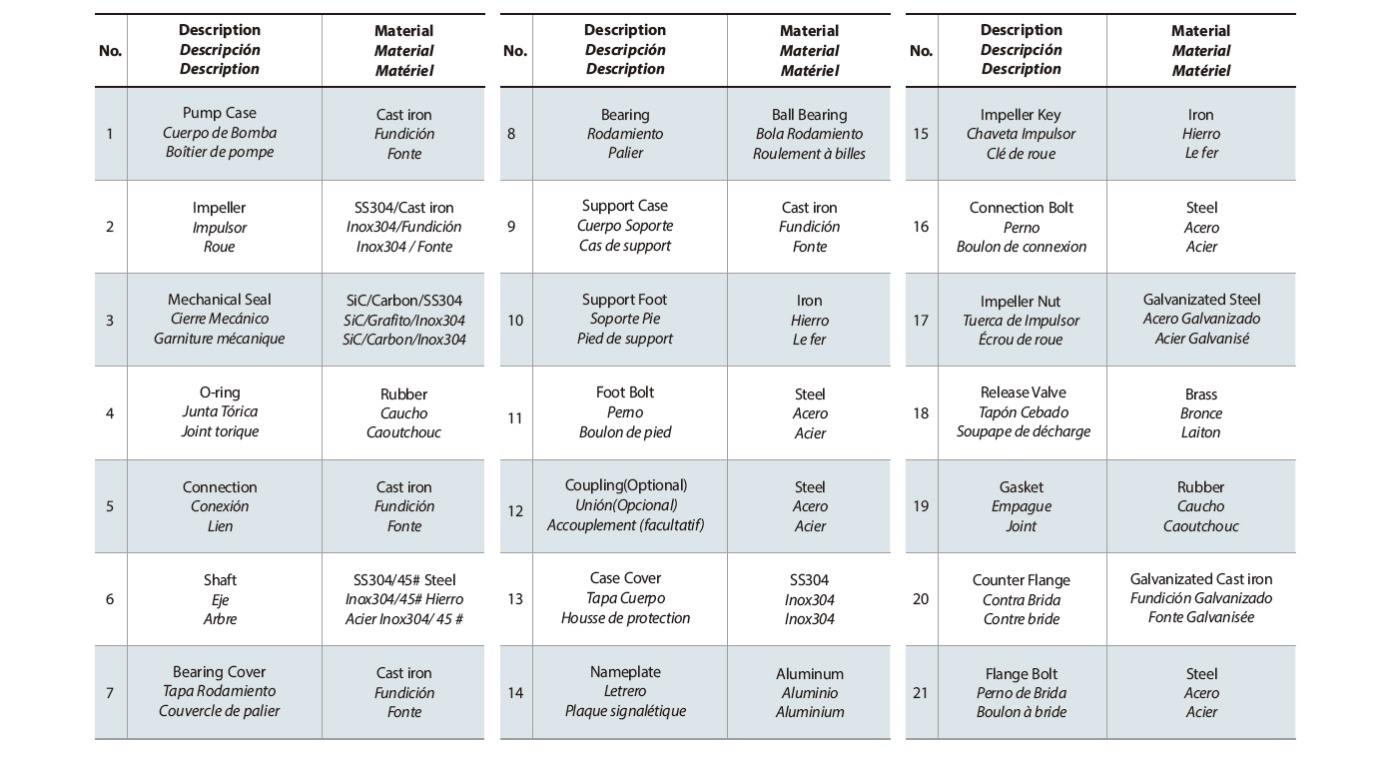

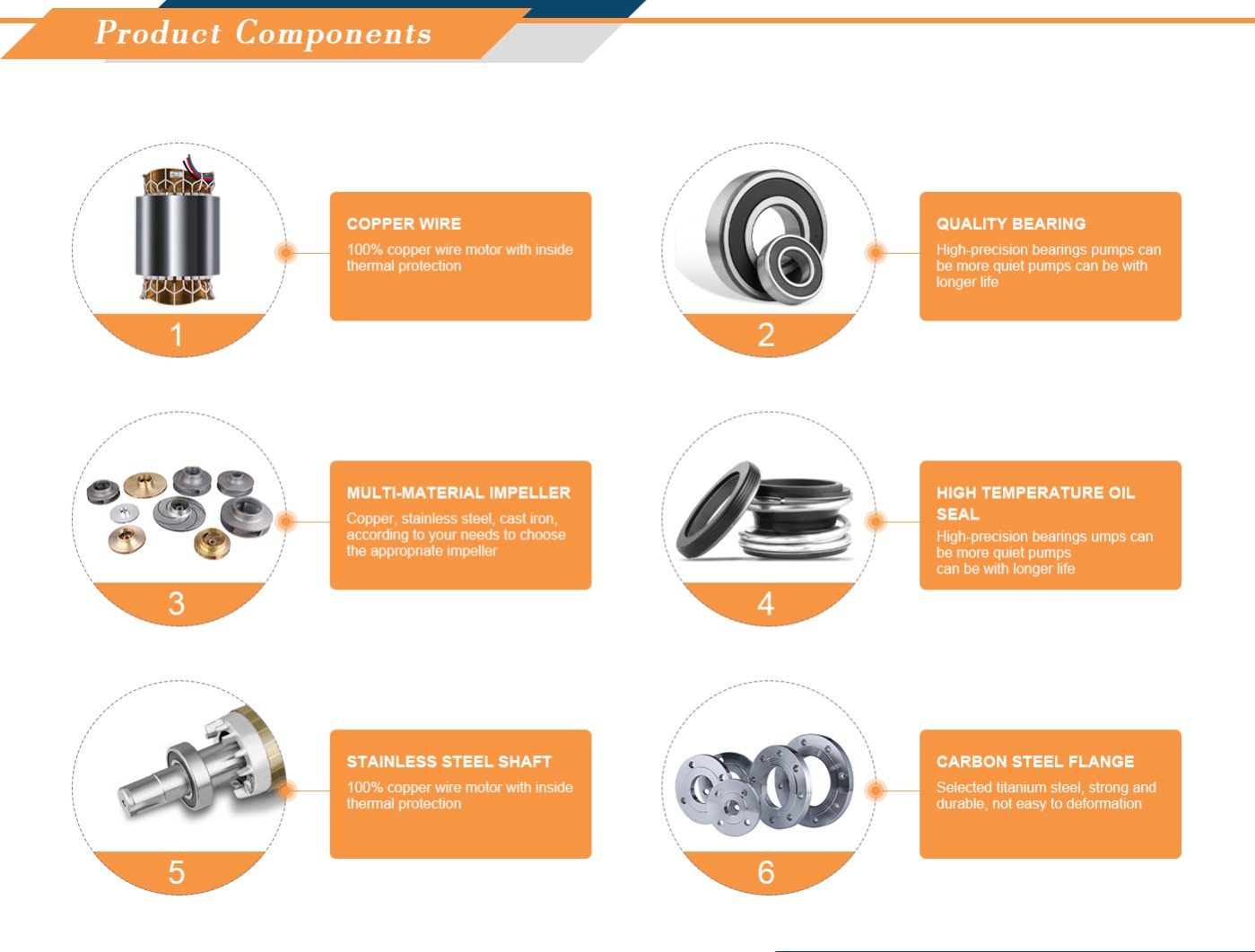

The pumps impeller material can be cast iron, SS304, brass.
Pumps of the same model have different performance levels basing on different diameter after impeller trimming .
Pumps are widely used in water supply and drainage for factory,mine,city and also fire-fighting and field irrigation system
The pumps have simple structure,reliable performance,compact size,low weight,excellent anti-cavitation,low power consumption and convenient maintenance
Customized design is available, OEM and ODM are welcomed.

Product Details

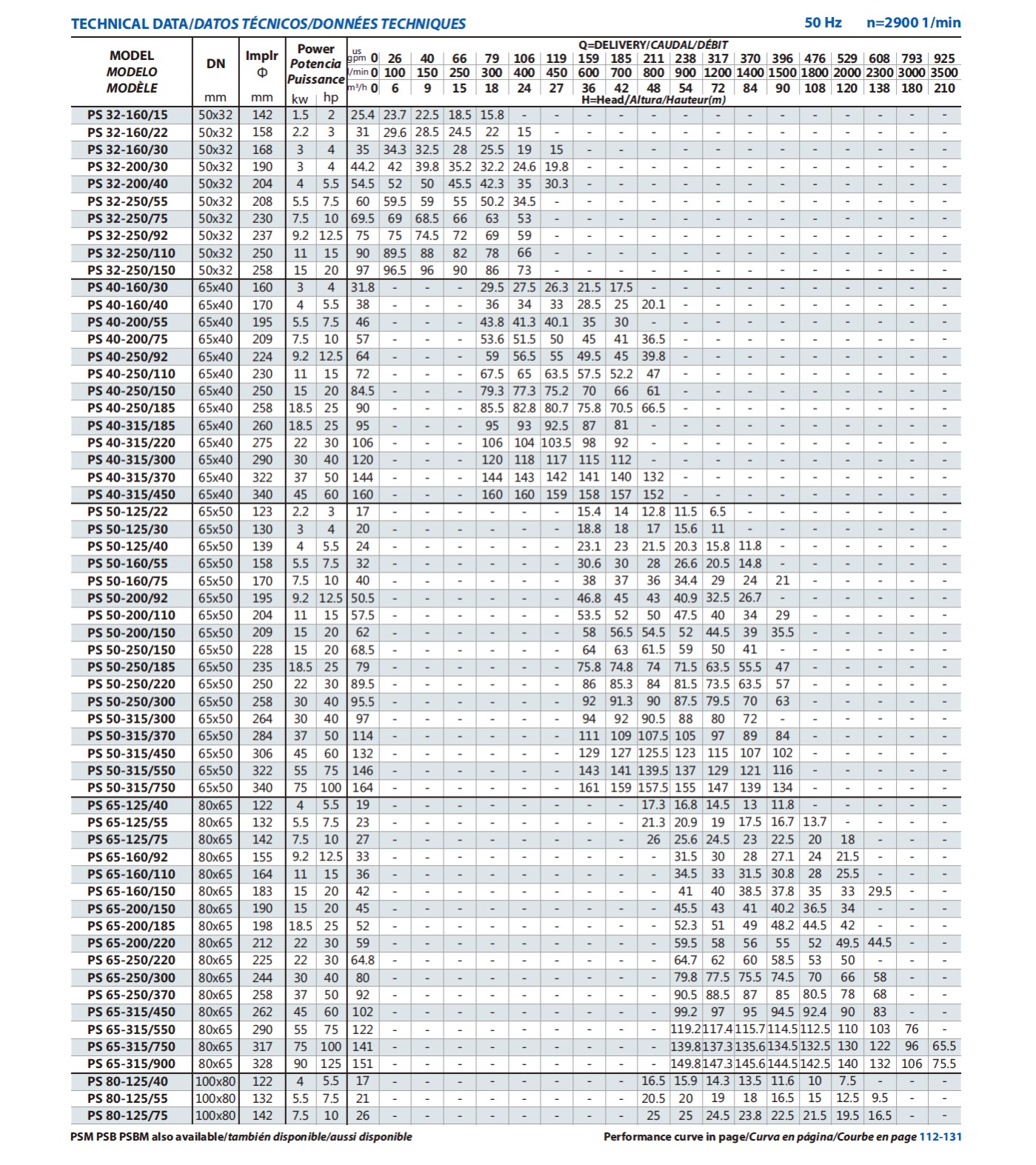

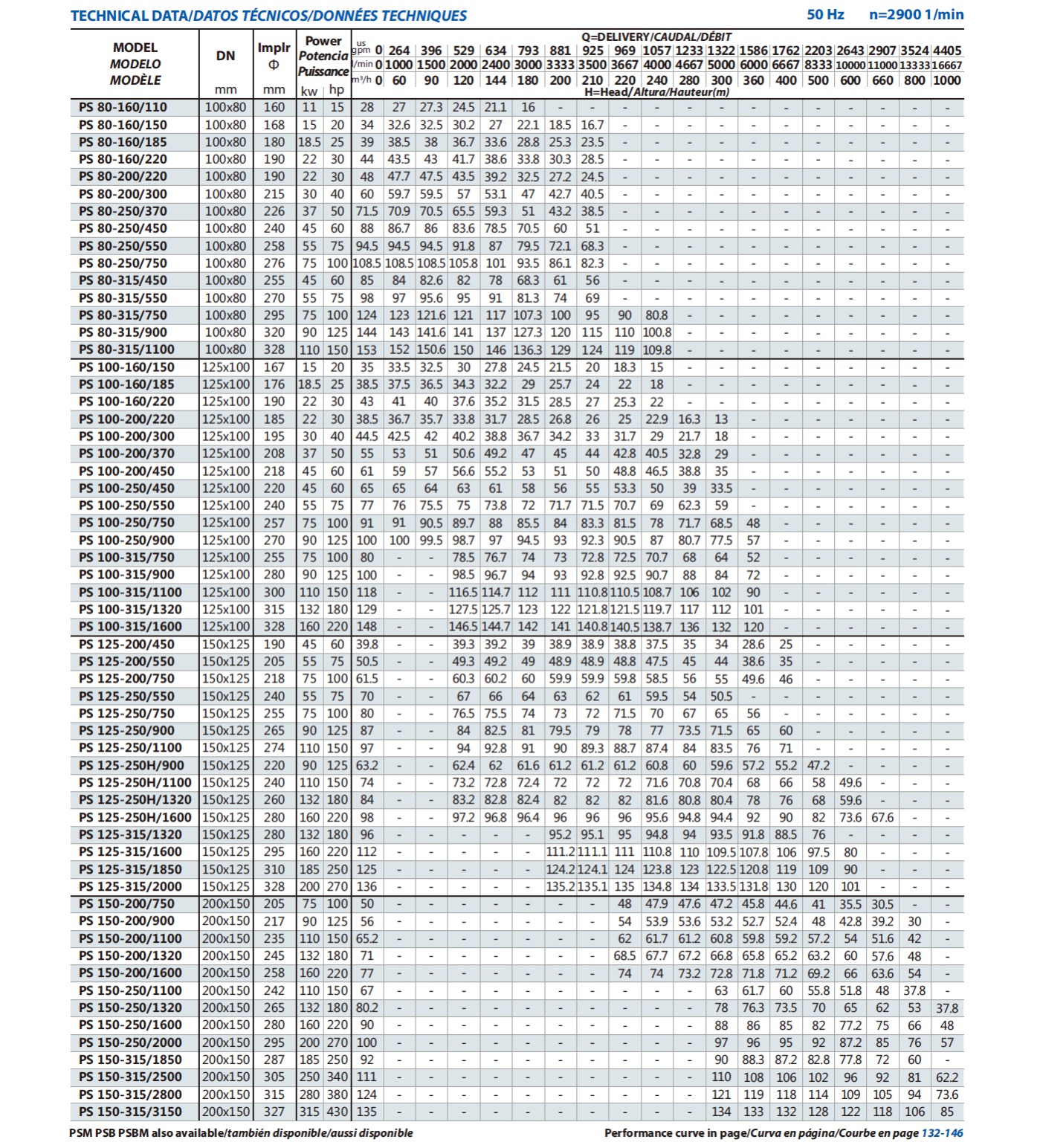

50Hz product parameter

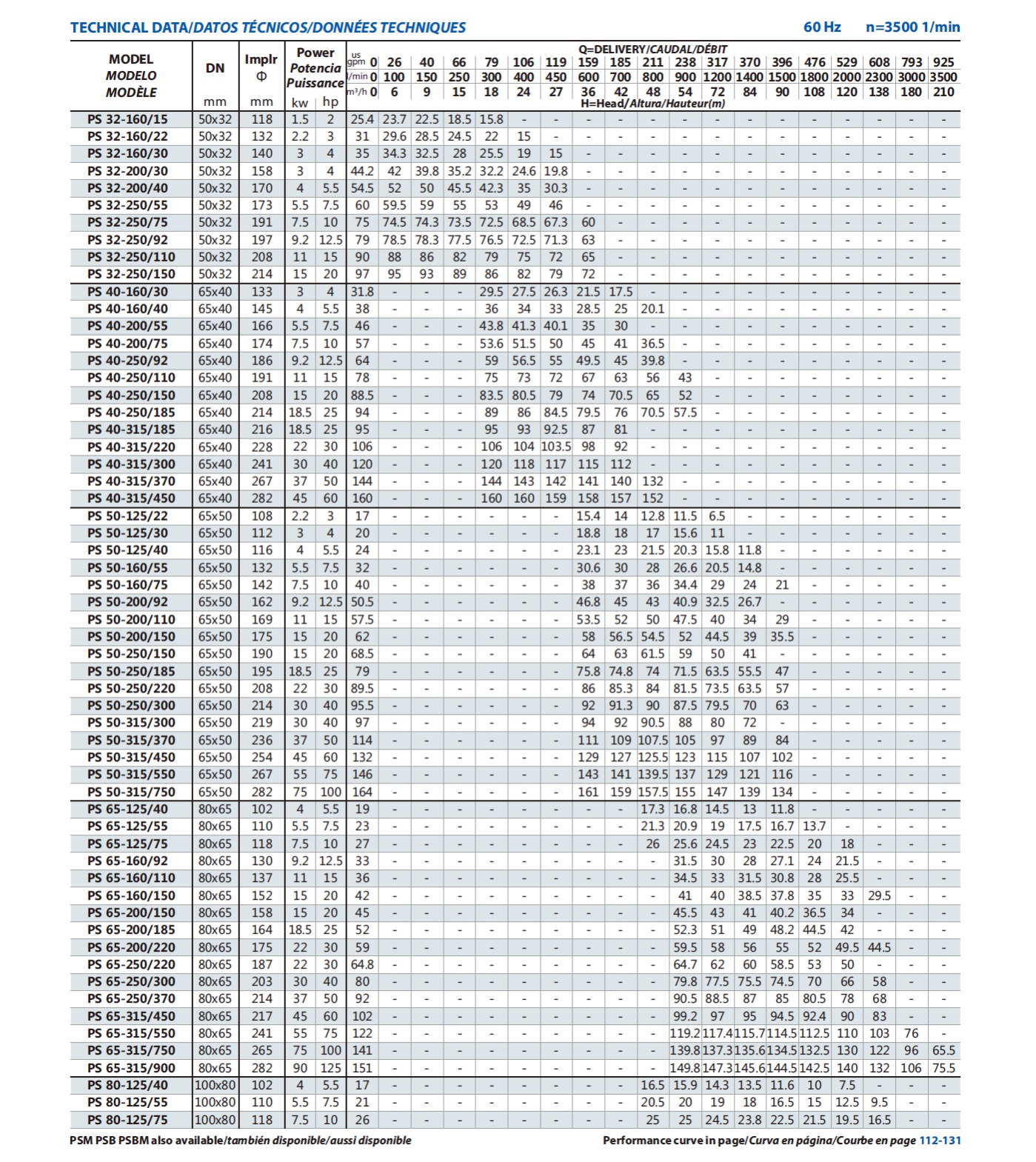

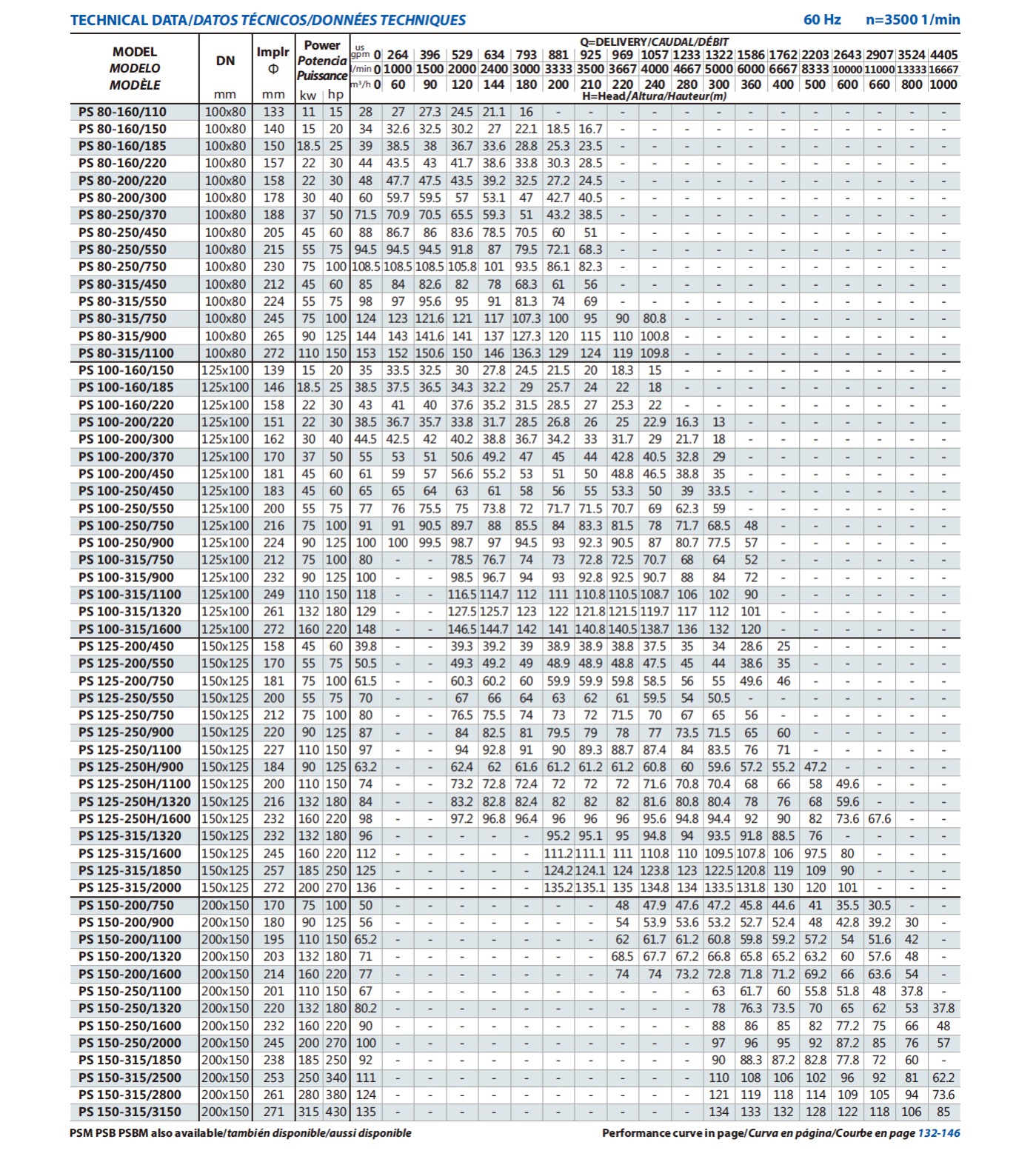

60Hz product parameter
Videos
Q&A

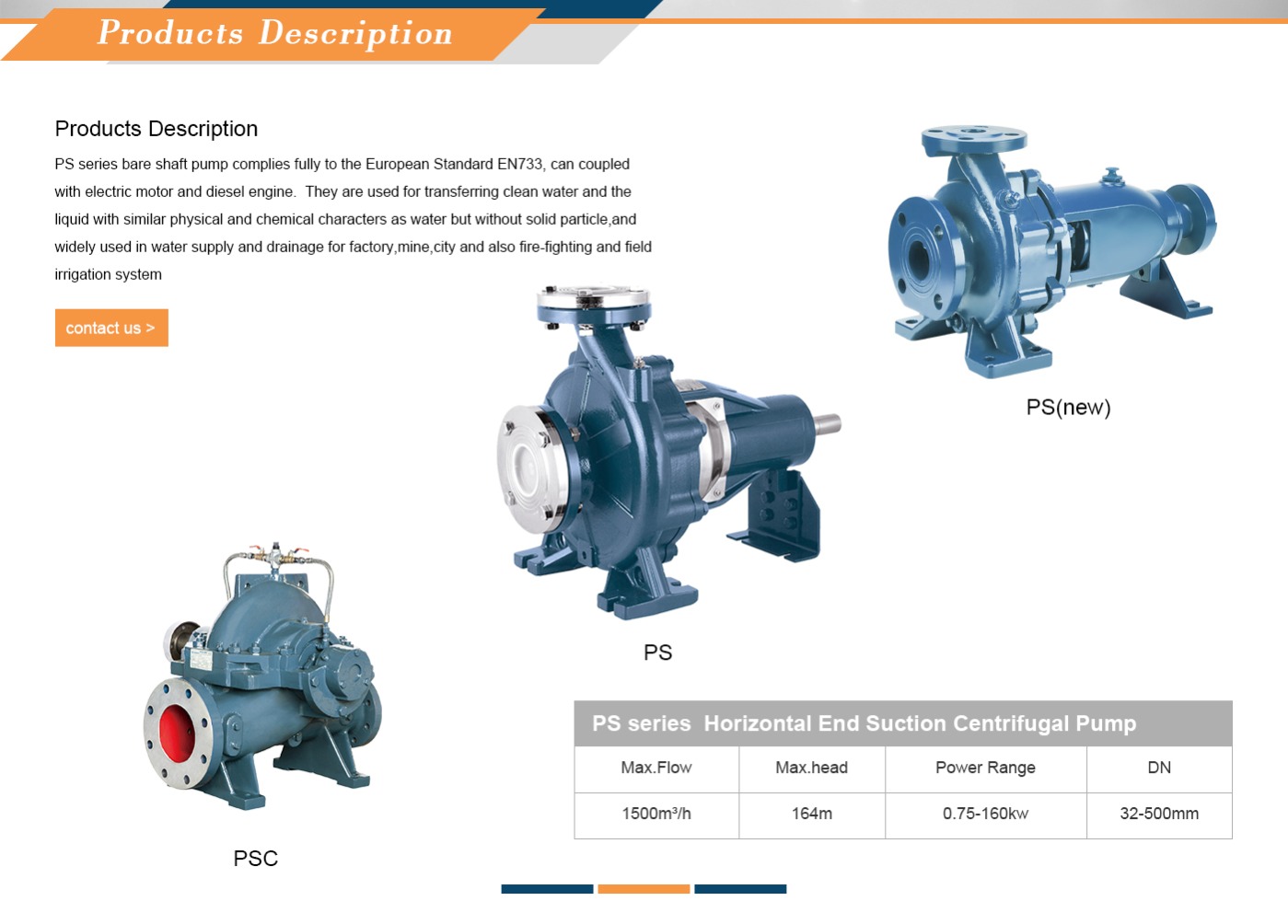

End Suction Horizontal EN 733 Centrifugal Pump can coupled with electric motor and diesel engine. They are used for transferring clean water and the liquid with similar physical and chemical characters as water but without solid particle,and widely used in water supply and drainage for factory,mine,city and also fire-fighting and field irrigation system

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced Horizontal Bare Shaft Pump Centrifugal Pump suppliers and wholesale Horizontal Bare Shaft Pump Centrifugal Pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
