PW series same port close coupled centrifugal pump

Industrial Pump

DN Range of Suction Pipe: 80-100 mm (3"-4")
DN Range of Discharing Pipe: 80-100 mm (3"-4")
Flow Capacity Range: 0-138m3/h
Head/Pressure Range: 0-89.5 m
Power Range: 2.2-22 Kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

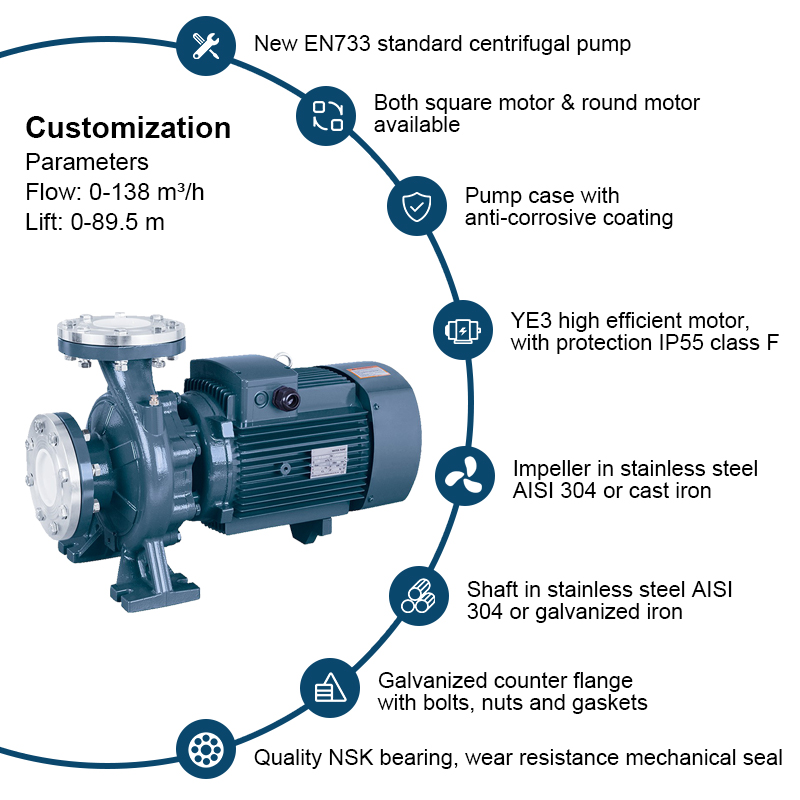

The motor is YE3 high efficiency motor, IP55, Class F,copper wire, anti-corrosive coating pump case, and wear resistance mechanical seal.
The pump has the galvanized counter flange with bolts, nuts and gaskets
The pump is widely used in water supply and drainage for factory,mine,city and also fire-fighting and field irrigation system
The pumps have simple structure,reliable performance,compact size,low weight,excellent anti-cavitation,low power consumption and convenient maintenance
Customized design is available, OEM and ODM are welcomed.

Product Details

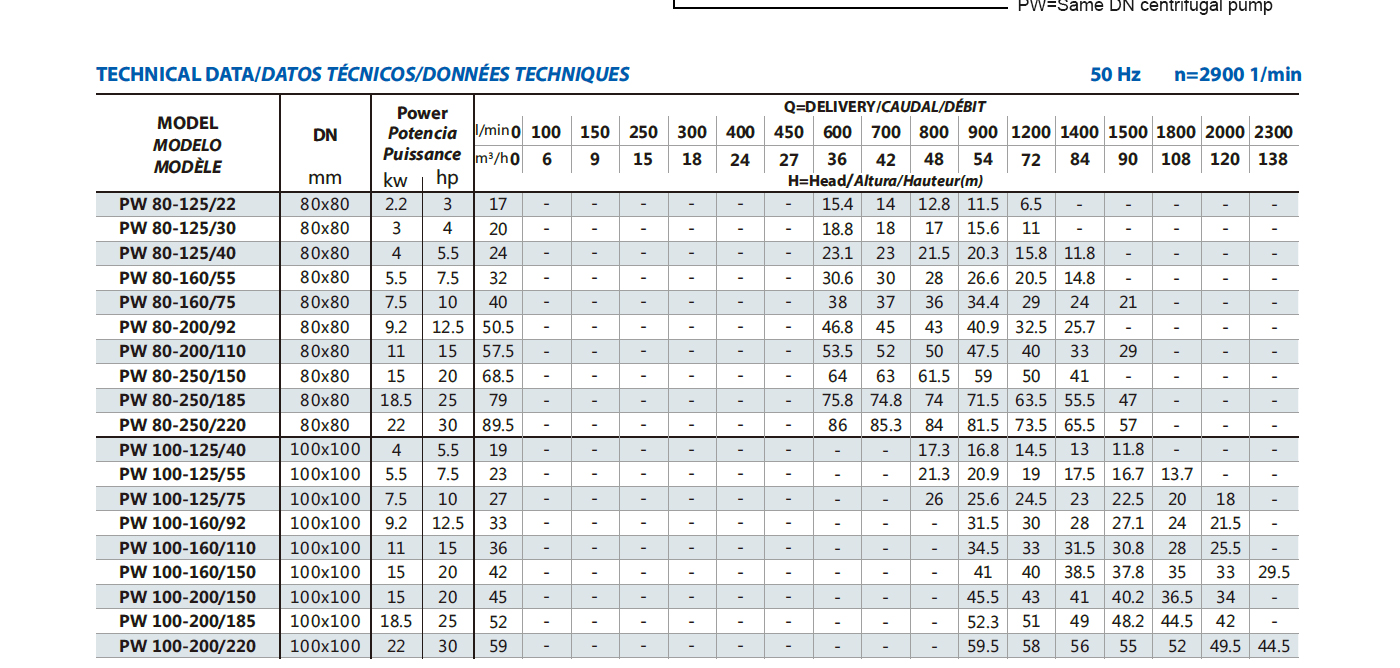

50Hz product parameter
60Hz product parameter
Videos
Q&A

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced PW series same port close coupled centrifugal pump suppliers and wholesale PW series same port close coupled centrifugal pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
