Today, we will explore the differences between single suction and double suction centrifugal pumps, a common query.

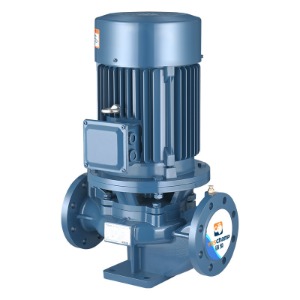

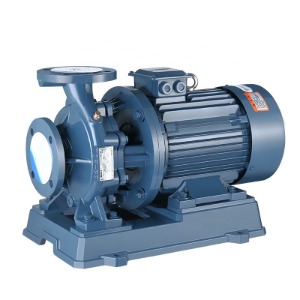

Single Suction Pump

Also known as an end suction pump, the single suction pump comprises a high-speed rotating impeller and a fixed, worm-shaped pump casing. The impeller, featuring several (usually 4-12) backward-curved vanes, is mounted on the pump shaft and driven by a motor. It is the primary component that performs work on the liquid, acting as the centrifugal pump's energy source. The pump casing's central suction port connects to a suction pipe with a one-way bottom valve, while the discharge outlet on the side connects to a discharge pipe with a regulating valve.

Advantages of Single Suction Pumps:

- Smooth operation
- Simple structure
- Easy maintenance and repair
- Convenient installation
- Space-efficient
- Low cost and reasonable price
- Wide application range

However, single suction pumps have smaller flow rates and volumes, higher axial forces, and greater bearing loads.

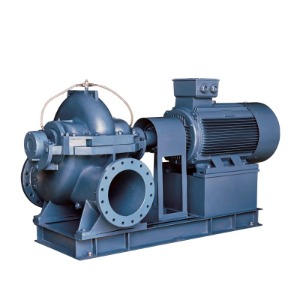

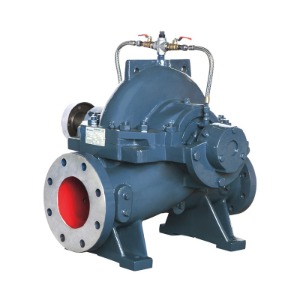

Double Suction Pump

The double suction pump features two back-to-back impellers, converging the water flow into a worm gear. Essentially, it combines two single-suction impellers of the same diameter, doubling the flow with the same outer impeller diameter. The double suction pump reduces the likelihood of cavitation at the same speed and flow due to decreased inlet flow.

Key Differences Between Single Suction and Double Suction Pumps

The primary difference lies in the impeller design. Single suction impellers draw water from one side, while double suction impellers draw water from both sides, offering hydraulic symmetry and balanced axial thrust. This balance results in smoother operation and lower cavitation risk.

Comparison:

Single Suction Pump:

  - Water enters from one end of the impeller.
  - More suitable for lower flow rates.
  - Larger axial forces and bearing loads.
  - Commonly used in agriculture.</br >

Double Suction Pump:

  - Water enters from both ends of the impeller.
  - Ideal for large flow rates and smooth operation.
  - Reduced size and weight.
  - Enhanced anti-cavitation capabilities.
  - Suitable for mines, cities, power stations, and water supply projects.</br >

Choosing between a single suction and a double suction pump depends on the specific operating conditions and flow requirements.
