EDJ Fire Pump System Electric Diesel Jockey Pump with Controller Fire Fighting Pump Set

DN Range of Suction Pipe: 50-400 mm (2"-16")
DN Range of Discharing Pipe: 32-350 mm (1.5"-14")
Flow Capacity Range: 50-5000 GPM
Head/Pressure Range: 4-14 Bar
Power Range: 4-325 Kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

The main pump can be end suction pump, multistage pump, split case pump,or vertical turbine pump with stainless steel, cast iron and bronze material in standard configurations.

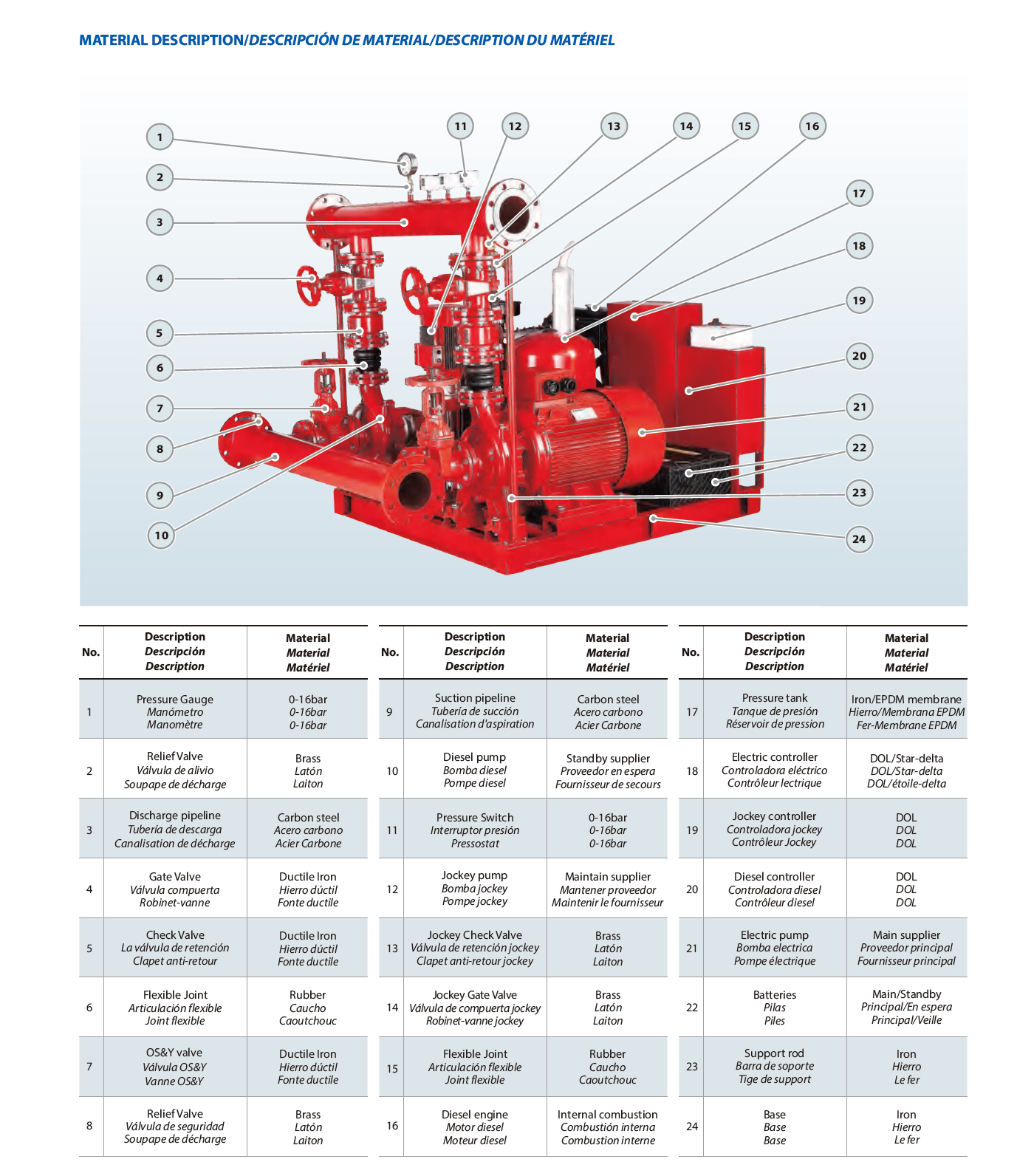

Every package is mounted on a steel fabricated base with motor, engine and pump coupled and wired to the controller. The automatic air relief valve, gate valves, check valves, flexible joint, pressure switches, and pressure gauge are mounted on their respective pipes. If required, additional piping, pressure tank, valves and sensing lines are available as well.
Fire Pump Control Panel is the Pump System brain that designed to Control & Monitor the operation of the Electric, Diesel, and Jockey Pumps drivers, and makes up pumps for both Manual & Automatic modes, as well as turns pumps drivers ON/OFF under specific conditions.
The Fire Pump Package Controller detects signals through set of built in pressure switches that reflect the system pressure & flow status enabling fire pump package drivers (Electrical /Diesel /Jockey) to operate in case of pressure in the system is lower than set point, as well as operating the Standby driver due to power failure and/or substantial drop in pressure.
Fire Pumps Series Controllers are pre-wired, tested before delivery and made ready for immediate usage.
The electric pump is coupled with YE3 high efficient motor with protection IP55 class F, anti-corrosive coating pump case, quality NSK bearings, and wear resistance mechanical seal. Cast iron, brass and stainless steel impellers are all available.
This fire pump set can be used for fire hose and fire hose reel system, fire sprinkler system, fire water monitor system, fire alarm system and fire hydrant system.

Product Details
50Hz product parameter
60Hz product parameter
Videos
Q&A

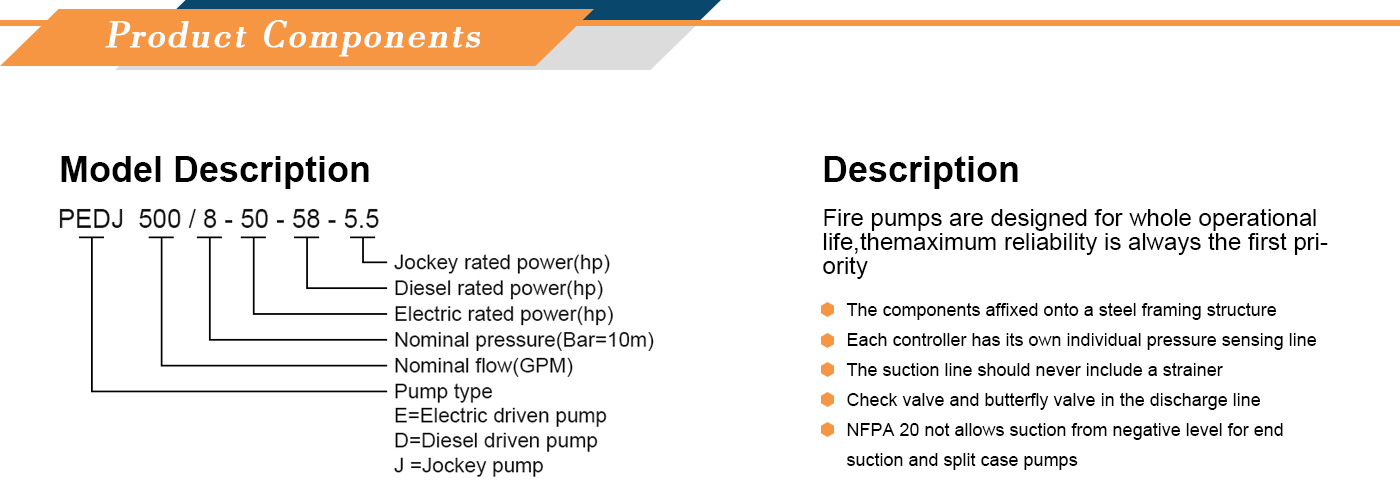

PEDJ Fire pump set consists of a main electric pump(driven by electric motor), standby diesel pump(driven by diesel engine), and a multistage jockey pump. Pumps are assembled with discharge pipe and suction pipe as well as Control Panel.And this fire pump system can be customized for different purposes such as high rise buildings, warehouses,facilities,hospitals, supermarkets,shopping malls,villas,apartments,etc.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced EDJ Fire Pump System Electric Diesel Jockey Pump with Controller Fire Fighting Pump Set suppliers and wholesale EDJ Fire Pump System Electric Diesel Jockey Pump with Controller Fire Fighting Pump Set manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
