PSM Series Standard Bare Shaft Centrifugal Pump For Industrial

Industrial Pump
  • DN Range of Suction Pipe: 50-300 mm (2"-12")
  • DN Range of Discharing Pipe: 32-250 mm (1.5"-10")
  • Flow Capacity Range: 0-1500m3/h
  • Head/Pressure Range: 0-164 m
  • Power Range: 0.75-315 Kw
Chat Now Inquiry Now Add to My Favorite List Download Catalog
  • The motor is YE3 high efficiency motor, IP55, Class F,copper wire
  • The pumps impeller material can be cast iron, SS304, brass, as customer demand.
  • The hydraulic performance can be adjusted by impeller cutting for different requests, same model with several performances.

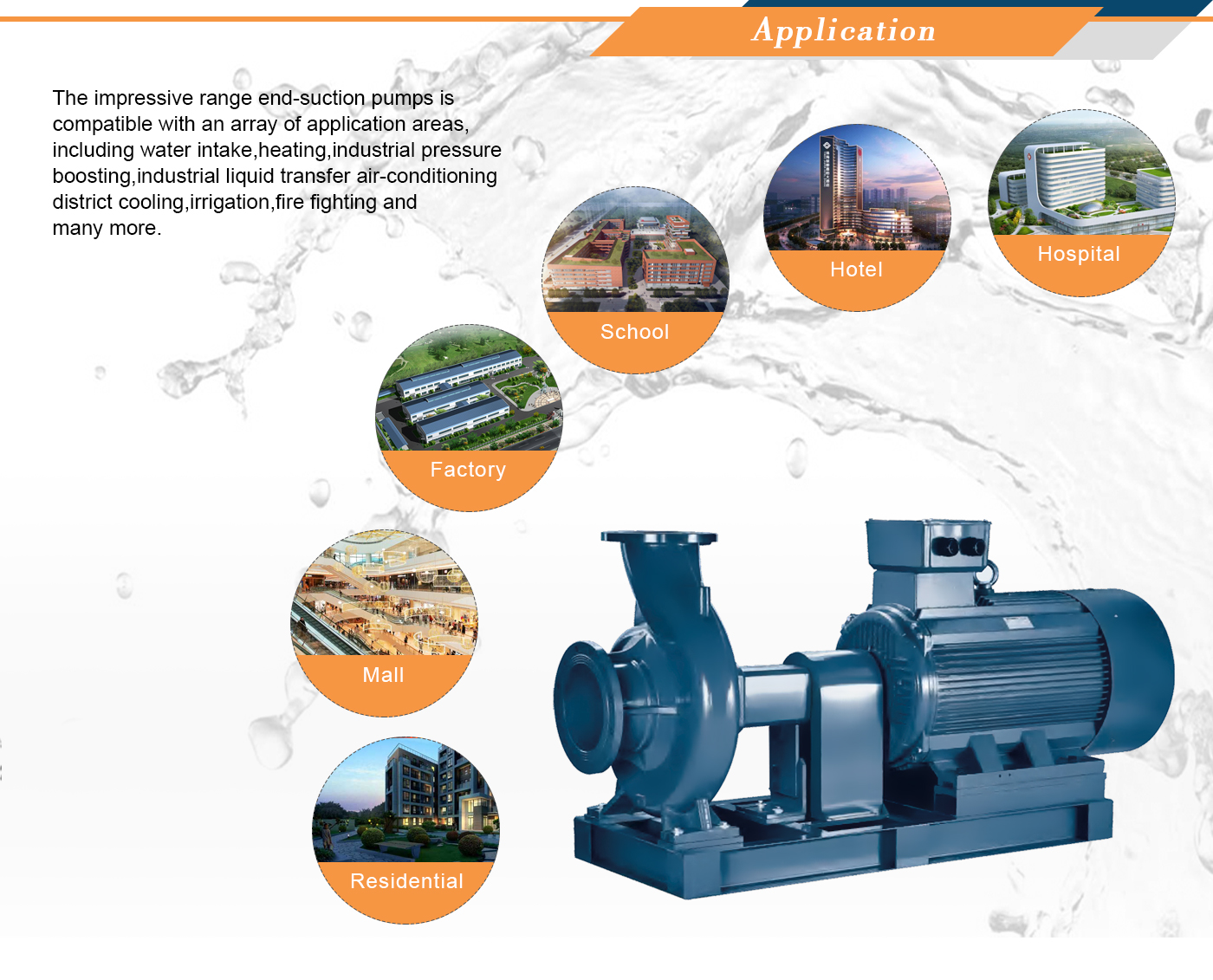

  • It is used for pumping clean water or liquids similar to water, achieving wide application on plants, mines, city water supplies, air-conditioning coolers, firefighting system and irrigation.
  • The pump is easy to be installed and maintained. Customized design is available, OEM and ODM are welcomed.
  • Product Details

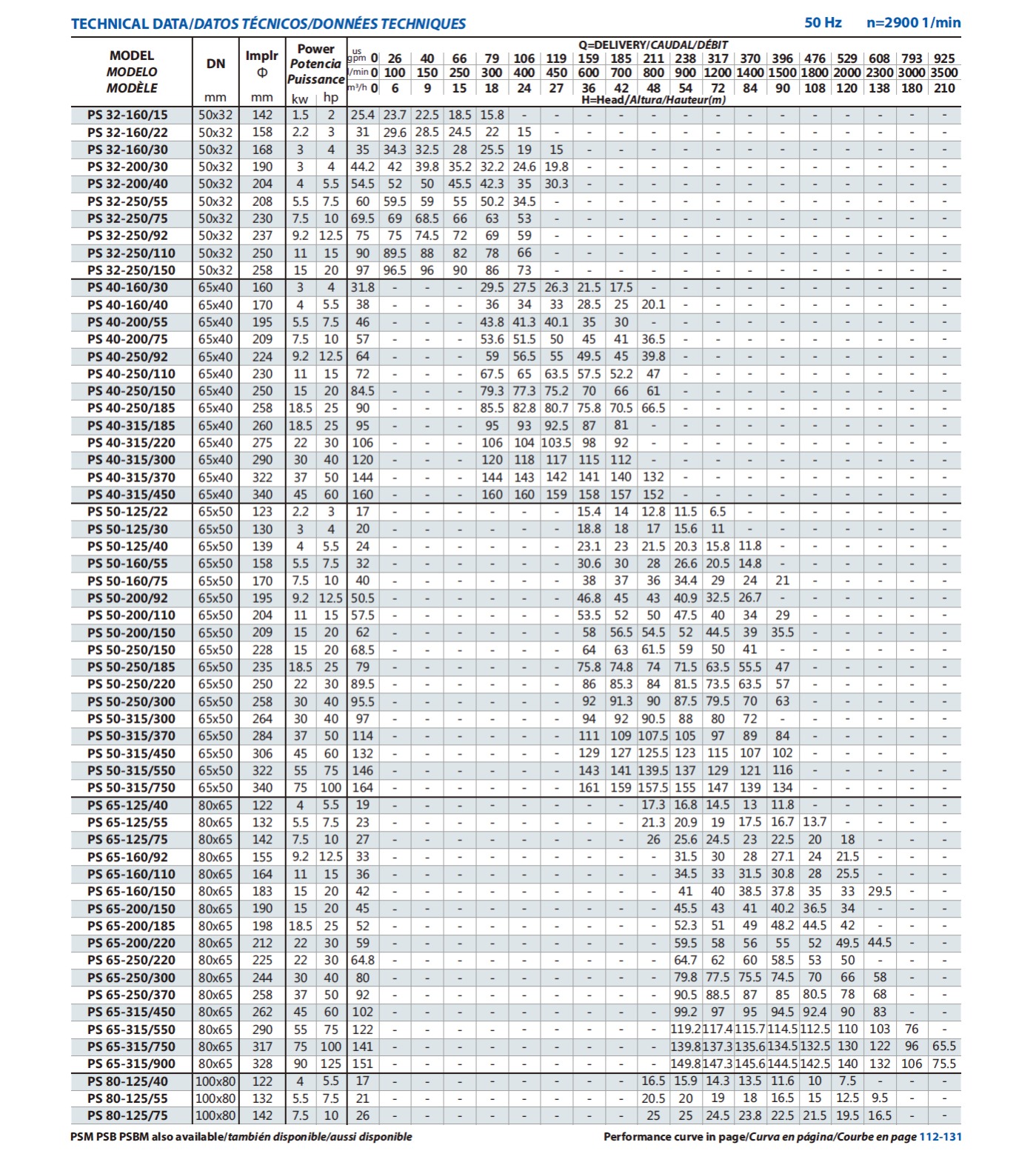

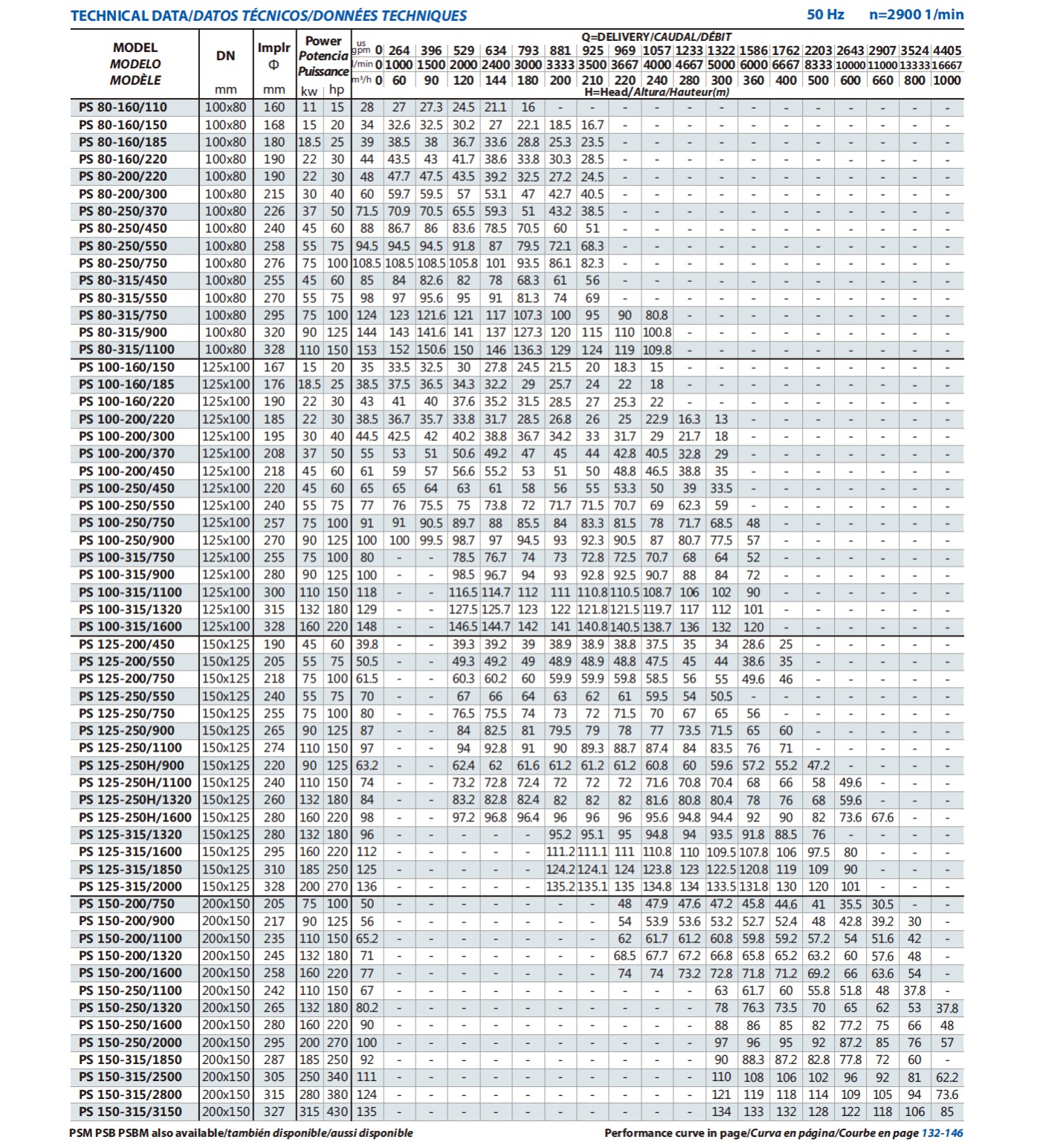

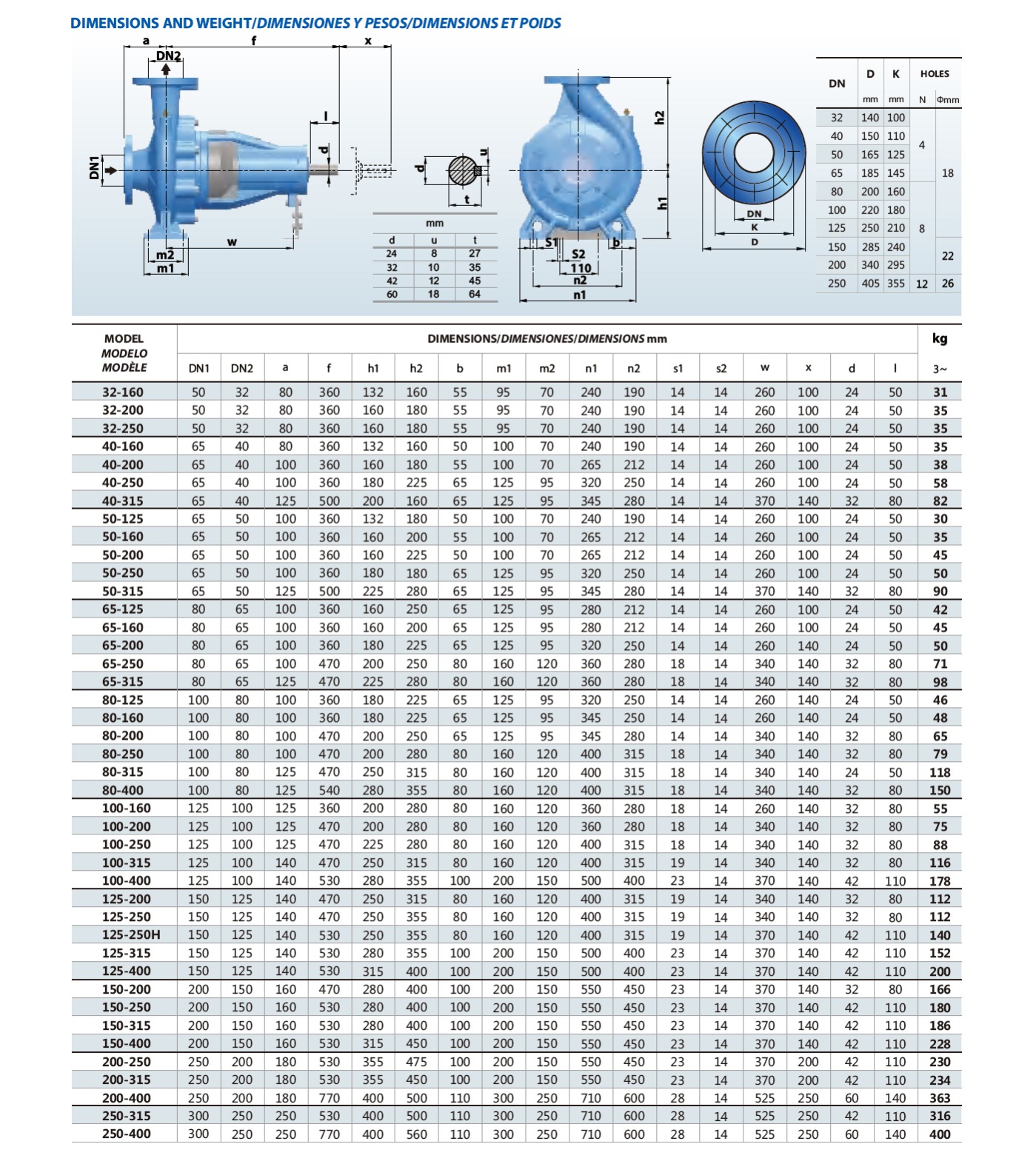

  • 50Hz product parameter

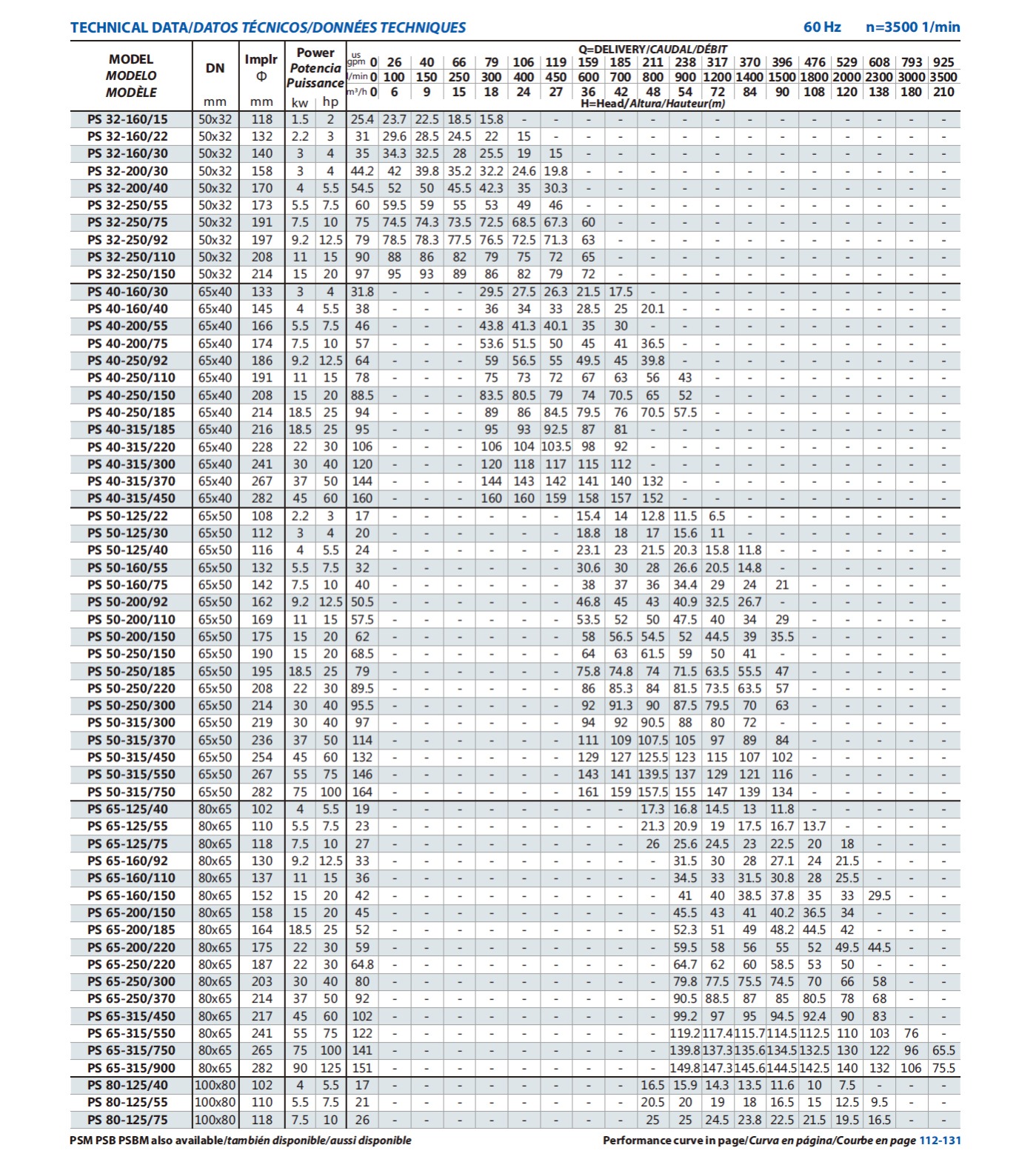

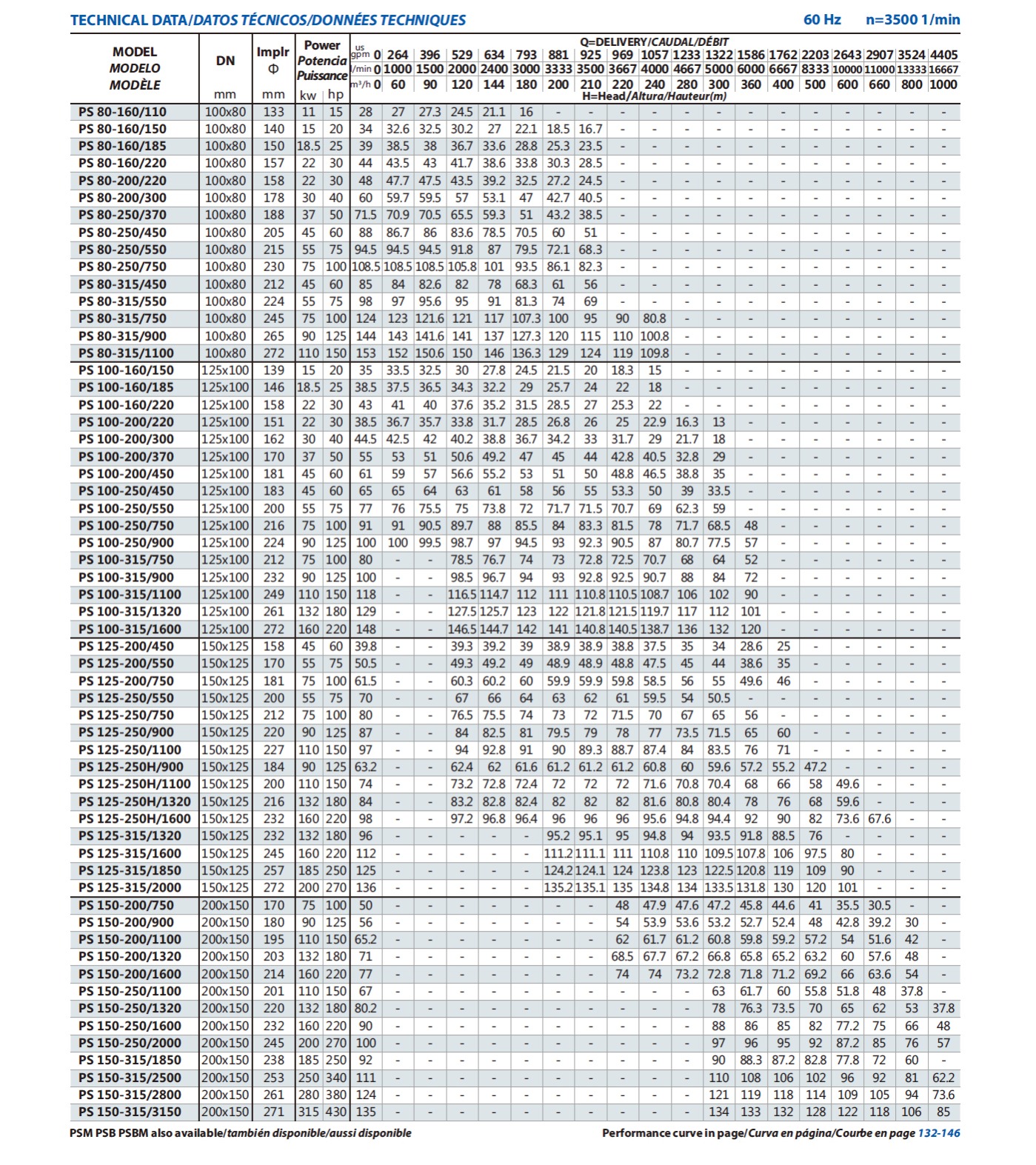

  • 60Hz product parameter
  • Videos
  • Q&A
PSM End Suction Centrifugal Pump

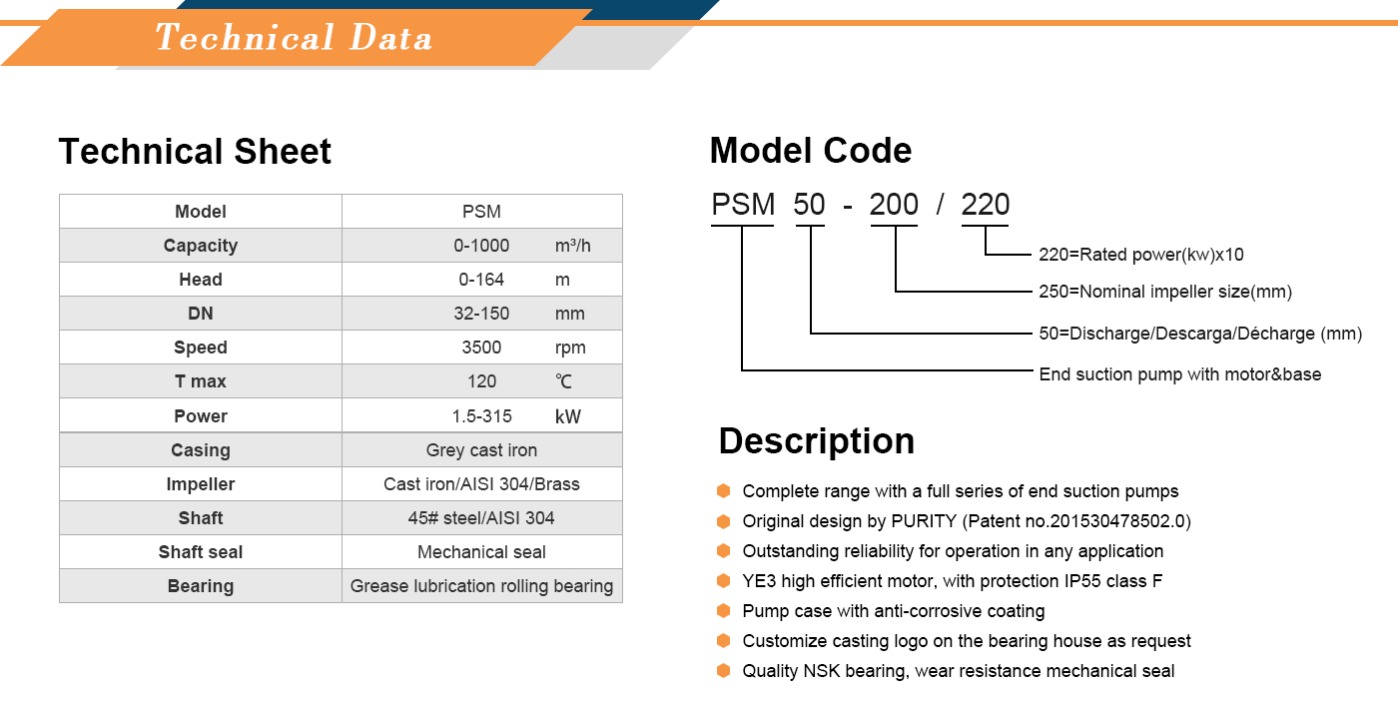

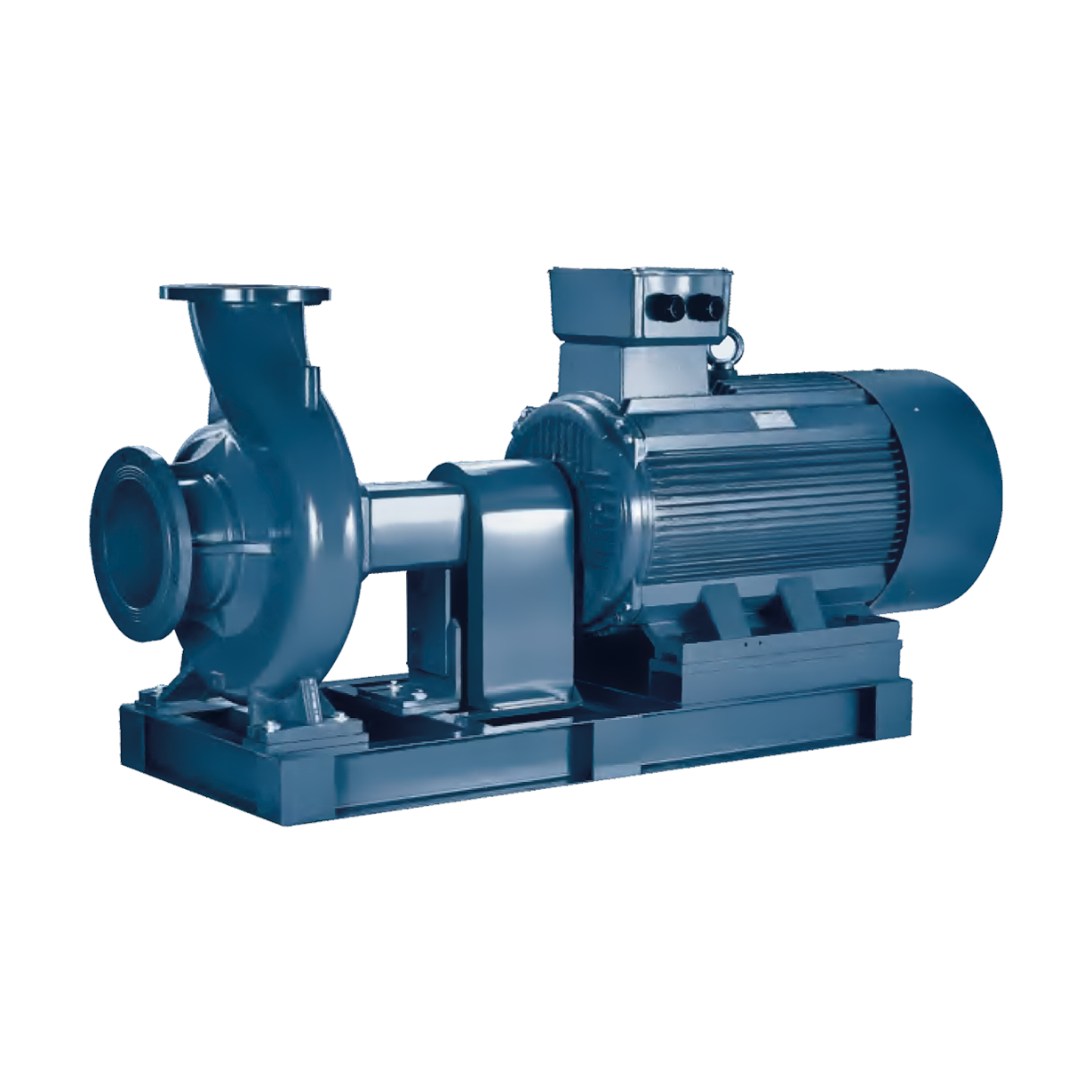

TECHNICAL DESCRIPTION PSBM:

  • The new standard centrifugal pump could be with both a square motor & round motor available.
  • The motor is YE3 highly efficient motor, with protection IP55 class F.
  • Pump case with anti-corrosive coating.
  • The impeller is in stainless steel AISI 304 or cast iron. The shaft is in stainless steel AISI 304 or galvanized iron.
  • The pump is in a wide range of applications, including water intake, heating, industrial pressure boosting, fire fighting, and many more.

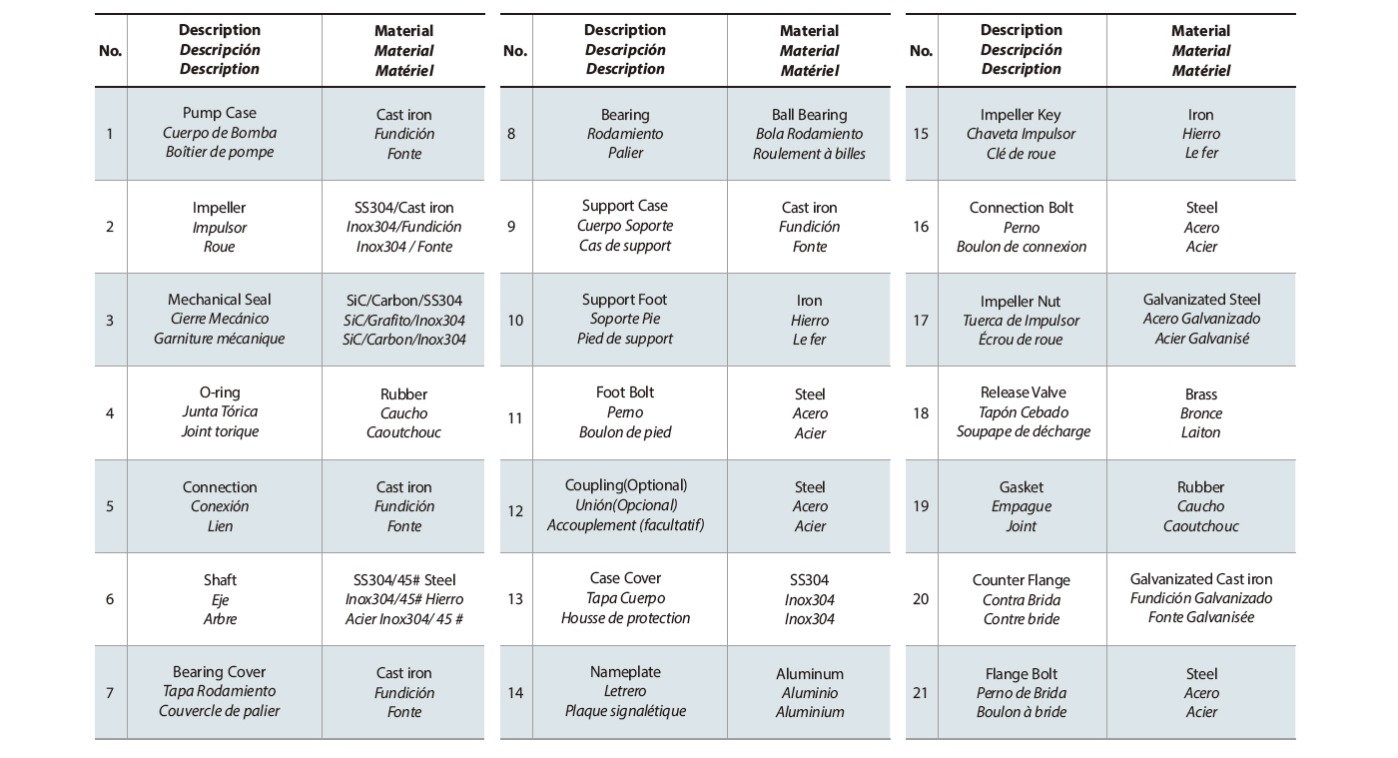

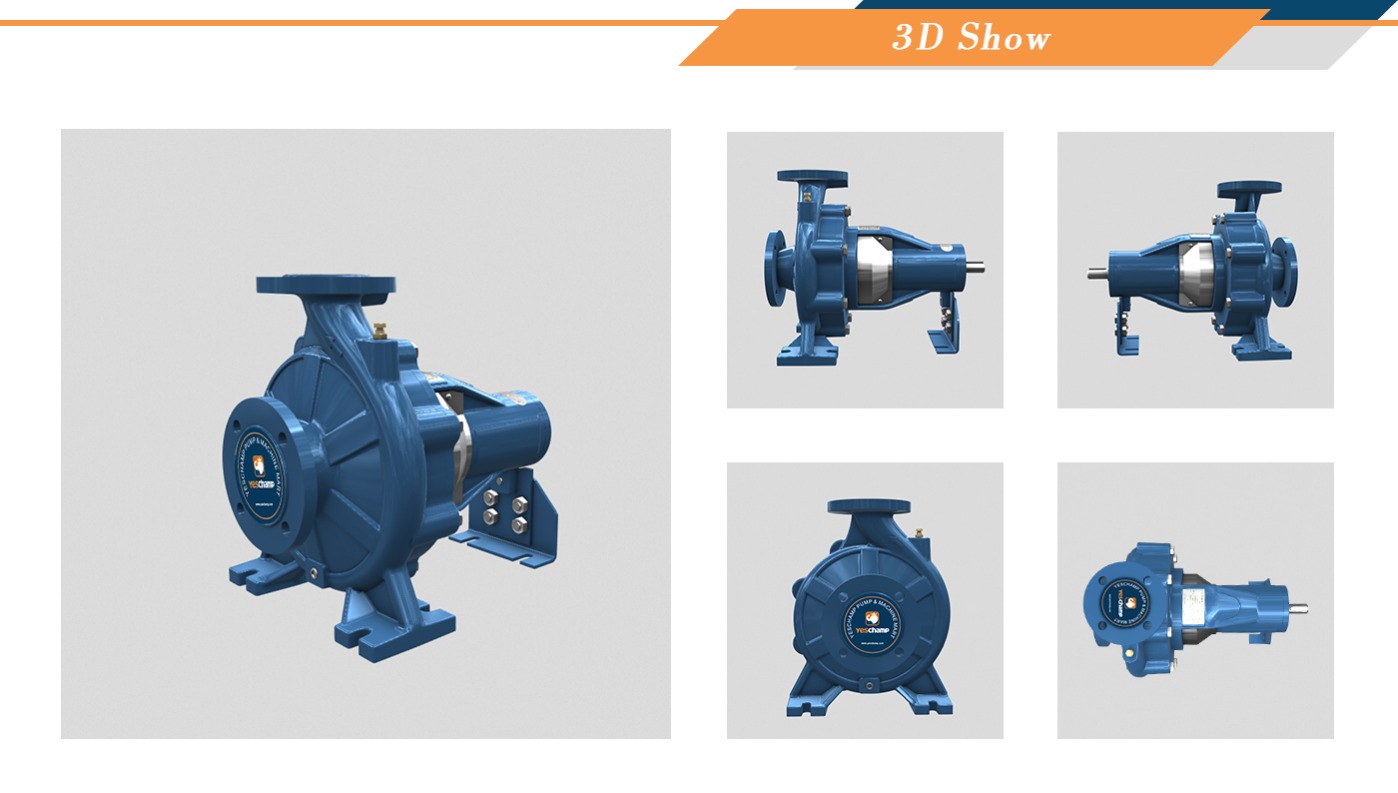

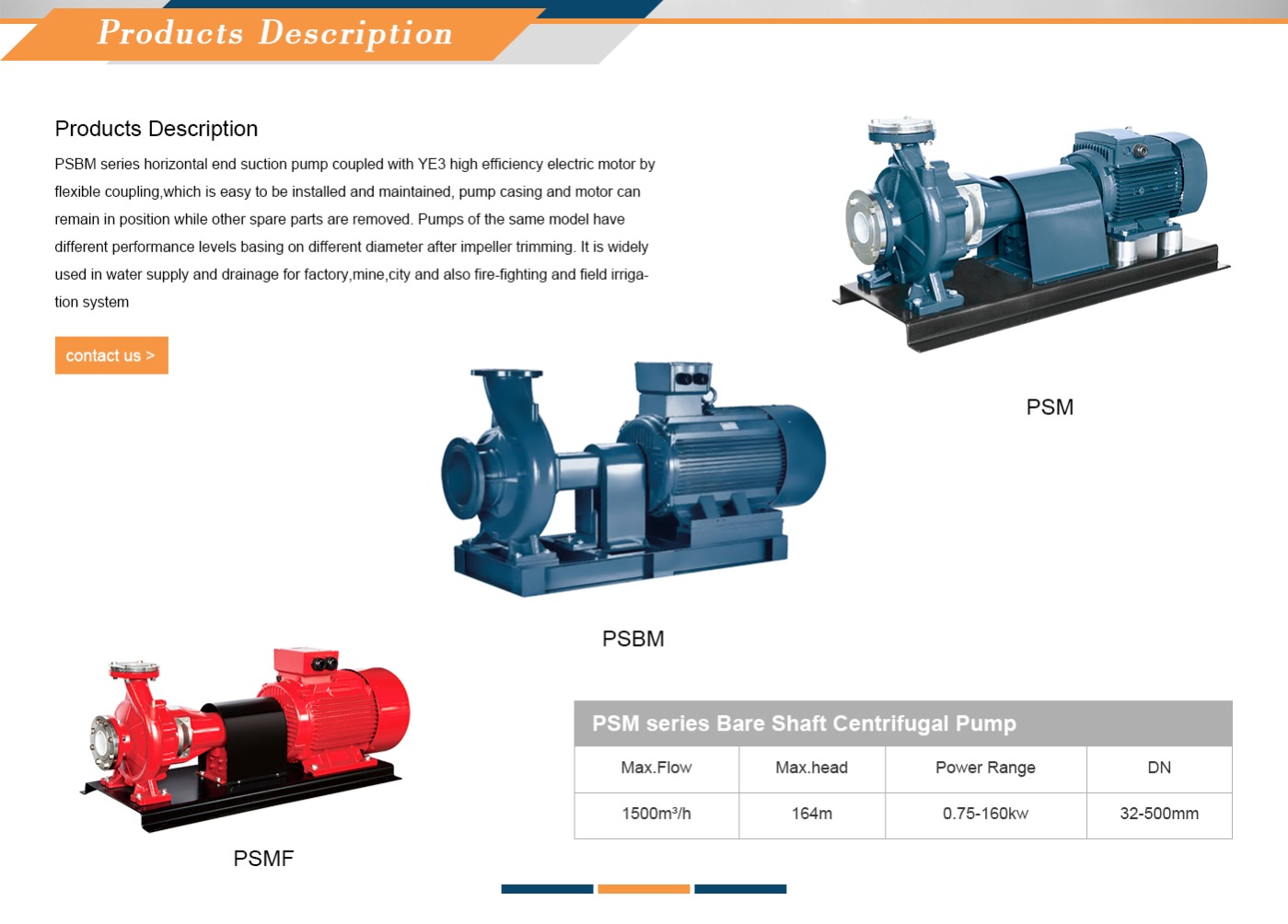

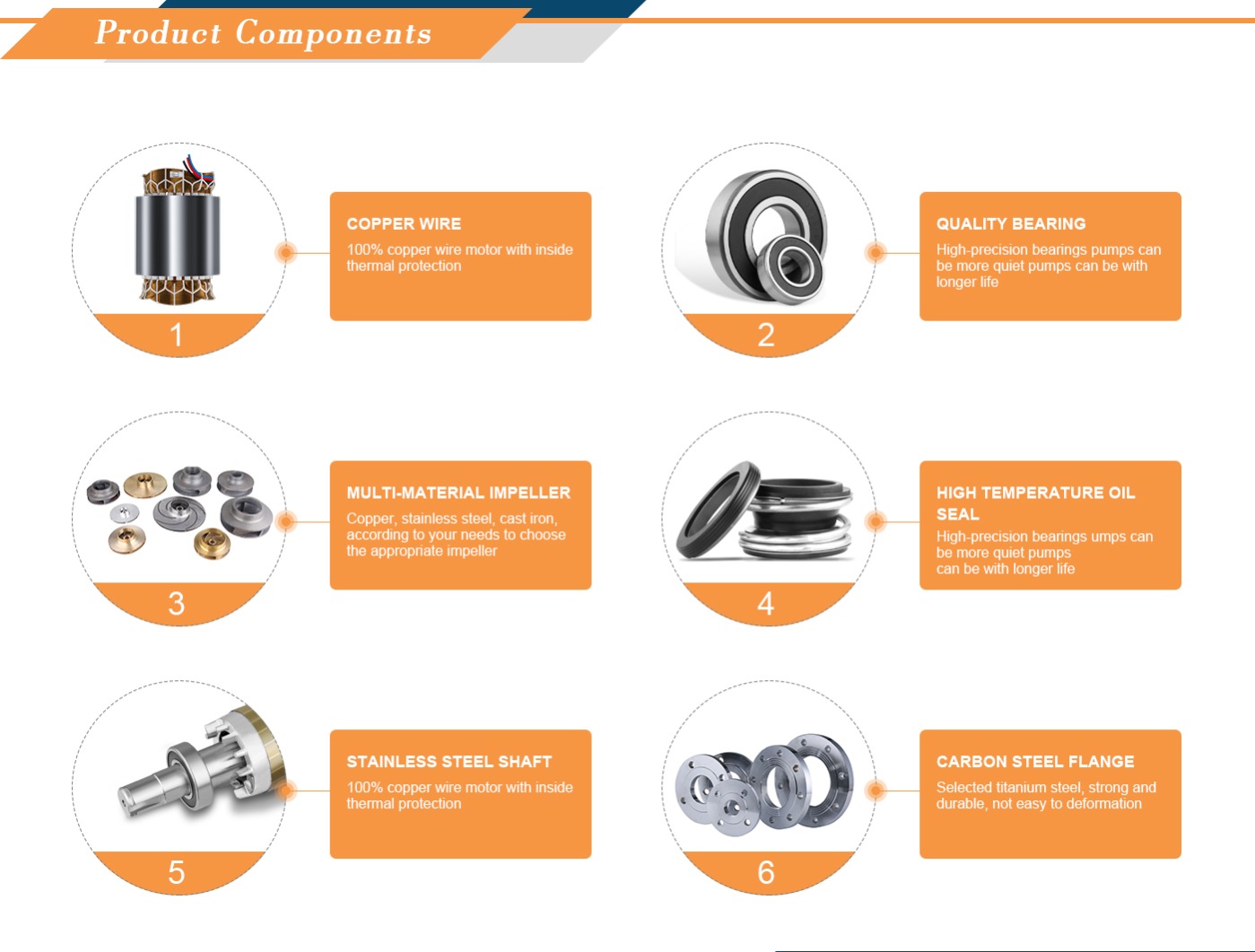

PSM End Suction Centrifugal PumpProducts Description3D ShowProduct ComponentsApplicationCertificate
Contact Information
We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced PSM Series Standard Bare Shaft Centrifugal Pump For Industrial suppliers and wholesale PSM Series Standard Bare Shaft Centrifugal Pump For Industrial manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
