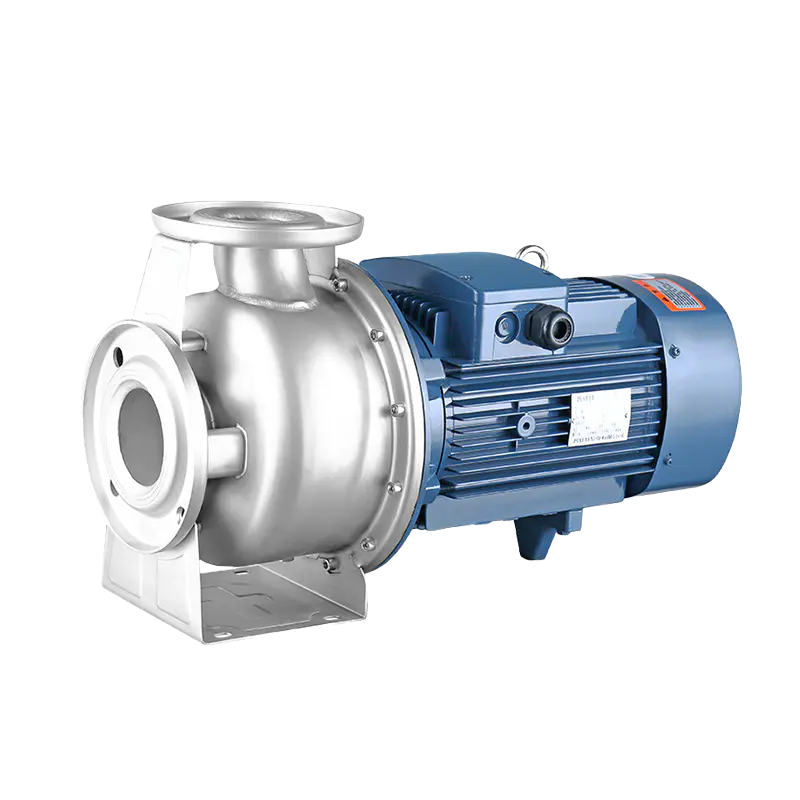

Horizontal End Suction Pump Single Stage Pipeline Monoblock Motor Pump

Suction Port : DN 25-350 mm
Discharge Port :DN25-350 mm
Flow/capacity: 4-1200m3/h(17-5285GPM)
Head/Pressure :10-150m
Power range: 0.75-250kw(1-340HP)

Chat Now Inquiry Now Add to My Favorite List Download Catalog

Service can be easily done without removing any pipeline because of the back-door structure.
By the straight joint between the motor and the pump, the middle structure is made simplified, thus enhancing the running stability, making the impeller of a good balance of moving-resting, resulting in no vibration during running and improving the environment of use.
The inlet and outlet in the pump casing with same size at the same level, that’s in a line. Therefore, Inline pump can installed in the pipeline anywhere, that’s why it’s named inline pump (also named booster pump).
The electric pump is coupled with YE3 high efficient motor with protection IP55 class F, anti-corrosive coating pump case, quality NSK bearings, and wear resistance mechanical seal. Cast iron, brass and stainless steel impellers are all available.
And for the horizontal inline pump , the performances are same with vertical line pump, but horizontal structure (level suction connection, and upward discharge connection).

Product Details
50Hz product parameter

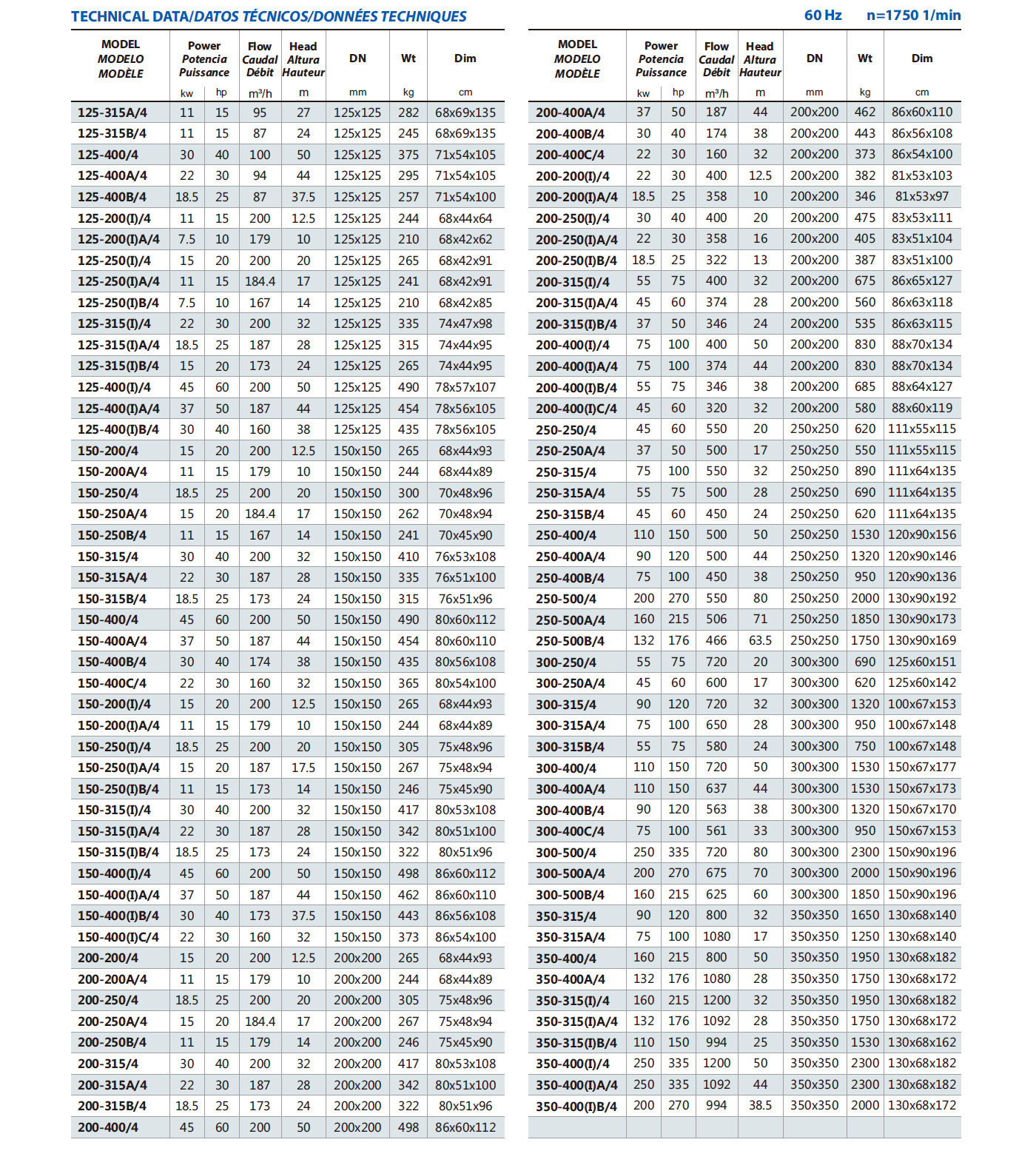

60Hz product parameter
Videos
Q&A

Horizontal centrifugal pump is used to transport pure-water and other liquids, the physical properties of which are similar to those of pure-water,in industrial and cities'water supply and drainage, high buildings' booster water supply, gardens irrigation, fire-fighting booster, remote water supply, warming systems, circular booster of cold&hot water in bath rooms as well as in completions of equipment.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced Horizontal End Suction Pump Single Stage Pipeline Monoblock Motor Pump suppliers and wholesale Horizontal End Suction Pump Single Stage Pipeline Monoblock Motor Pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
