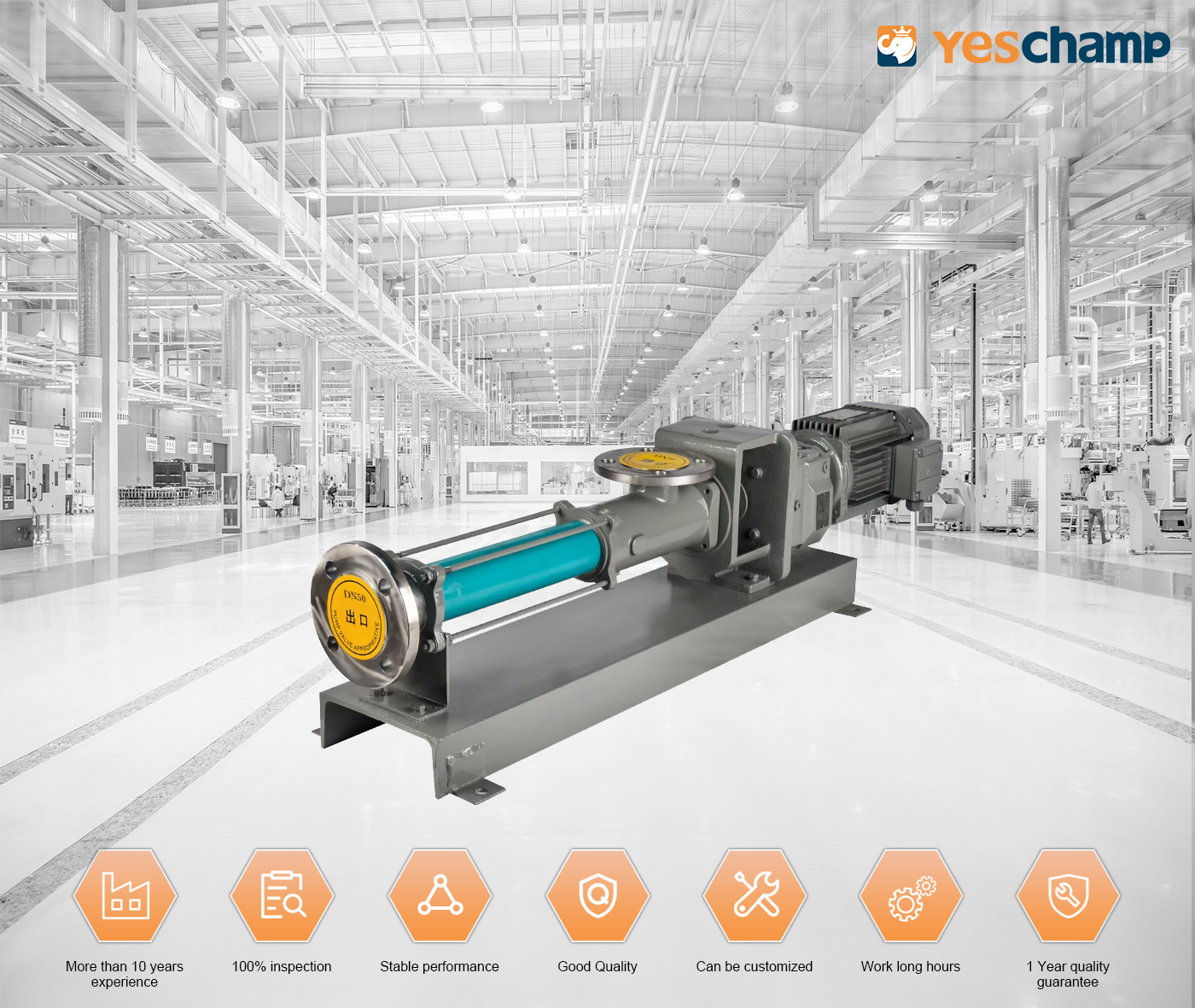

Progressing Cavity Pump Used for Waste Water

screw pump

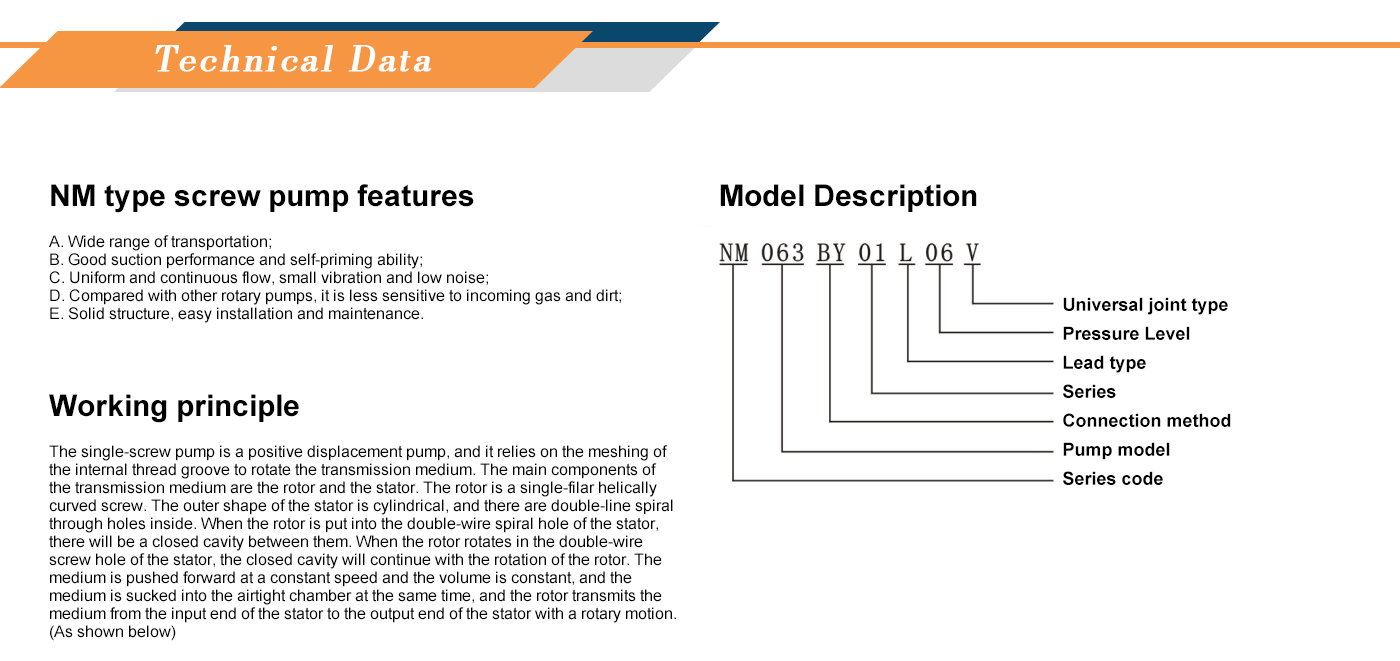

NM type screw pump characteristics

A wide range of transportation
Good inhalation, its self-absorption ability
Flow uniform continuous, small vibration, low noise
Compared with other rotary pumps, it is less sensitive to incoming gas and dirt
Solid structure, easy installation and maintenance

Chat Now Inquiry Now Add to My Favorite List Download Catalog

NM type screw pump application field

Petroleum industry: extraction and transportation of source oil, heavy oil, gas, sand and other mixtures in oil fields.
Chemical industry: synthetic fiber liquid, viscose liquid, oil volume, suspension, emulsion, polymer, flocculant, precipitant, lime milk and other transportation.
Paper industry: transport of different concentrations of pulp, cotton pulp, straw pulp, all kinds of paint and alkali recovery in heavy oil, calcium carbonate, brightening agent.
Food industry: Conveying food raw materials, sauces, milk materials, fruit juices, jams, carbonated drinks and various condiments, as well as diatomaceous earth, malt pulp, lees, filter mud and other liquids in the brewery.
Environmental protection industry: concentrated sludge, dehydrated sludge, floating sludge, lime milk, various auxiliary agents, flocculants, etc.
Other industries: transport of fuel oil in ships, sweep warehouses, remove oil slicks at sea, discharge sewage, dirty oil to shore and load and unload various materials. Transportation of mortar, paint and plaster in the construction industry. Coal water slurry in coal mine, various pharmaceutical transportation and addition.

Product Details
50Hz product parameter
60Hz product parameter
Videos
Q&A

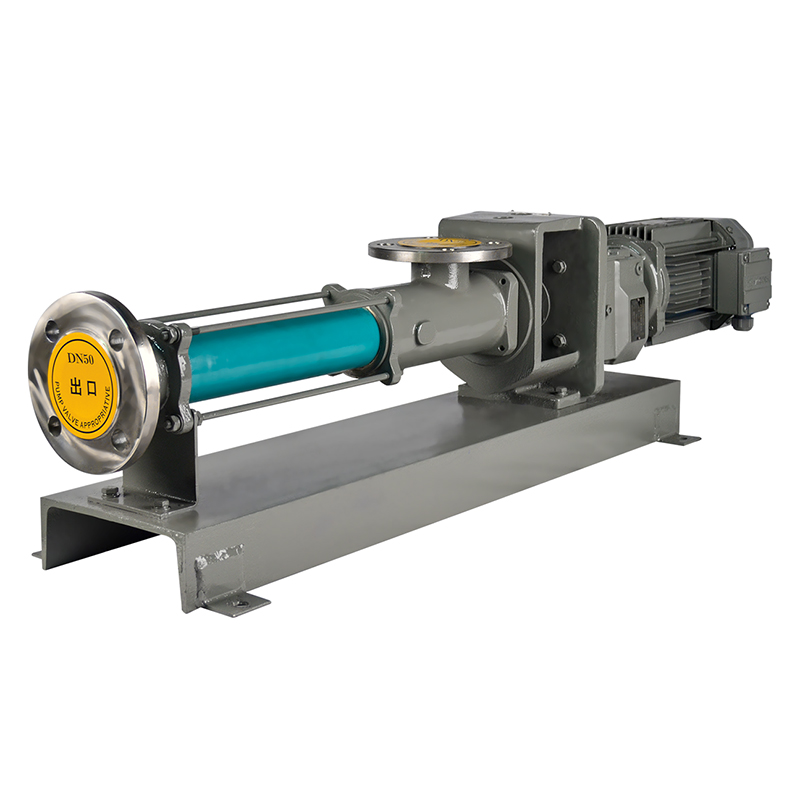

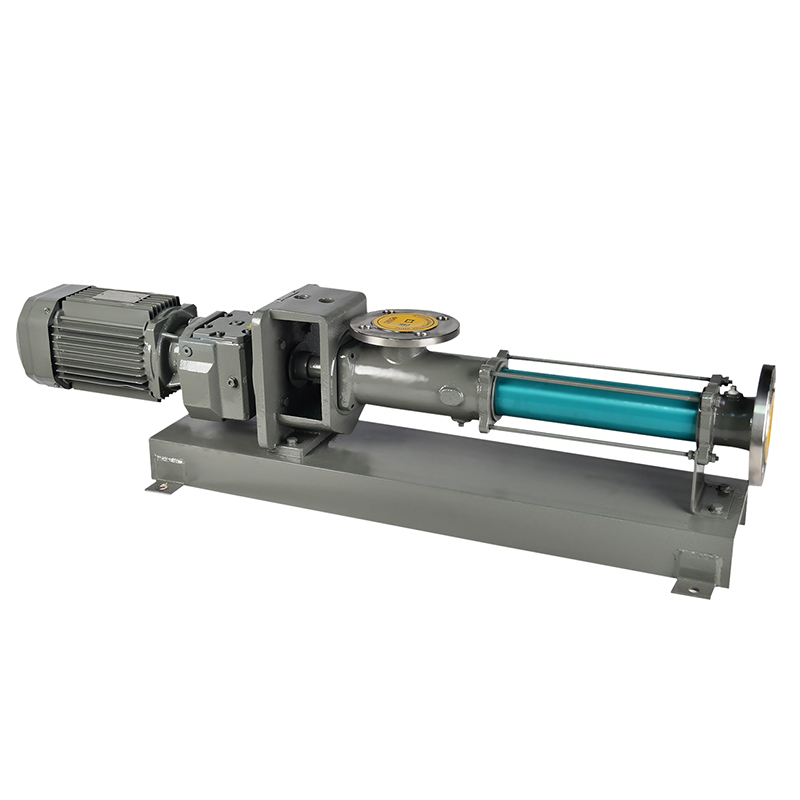

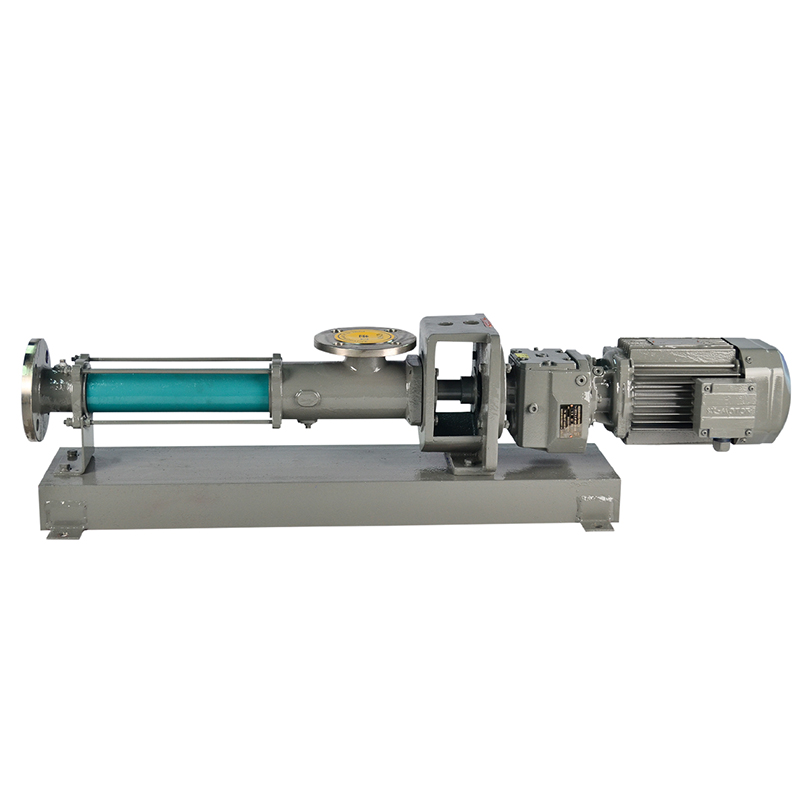

Progressing Cavity Pump Used for Waste Water

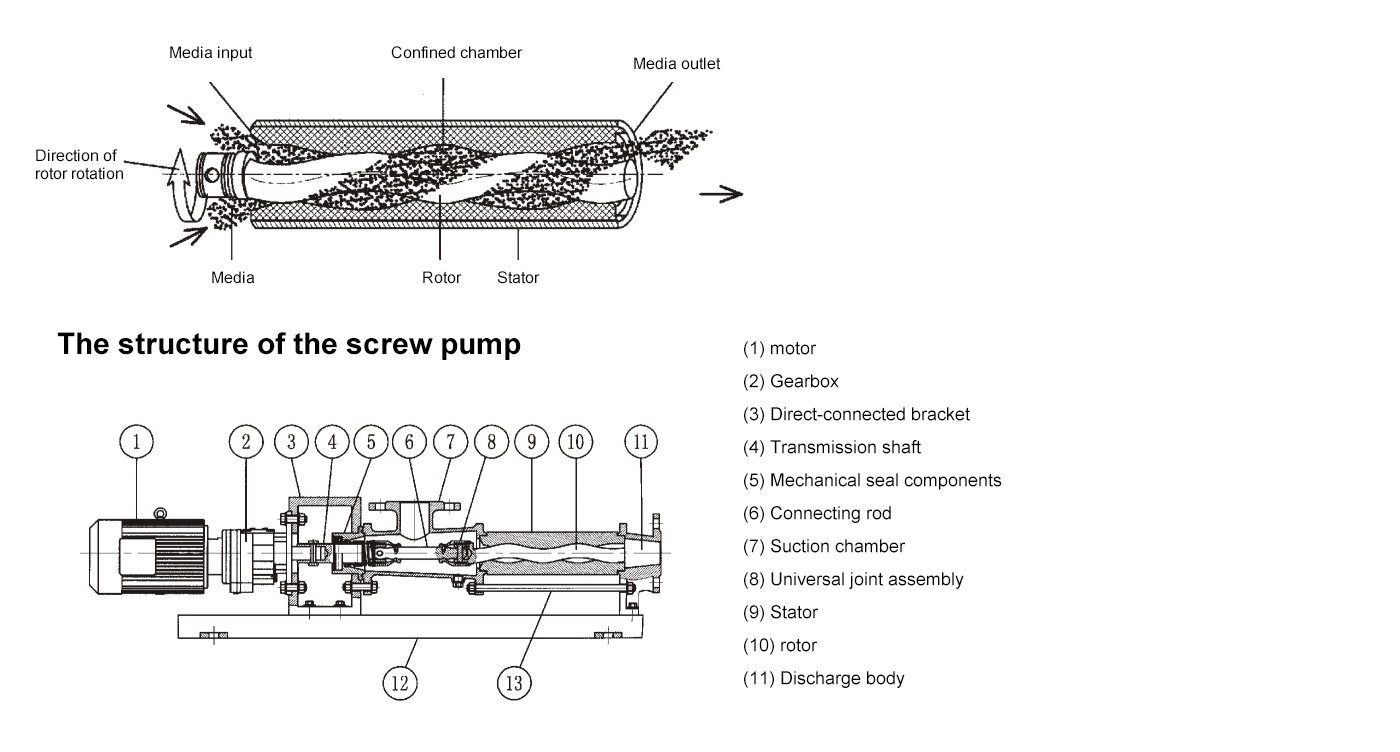

Working principle:

Single screw miscellaneous is a positive displacement pump, it is by the internal screw groove meshing rotation transmission medium.

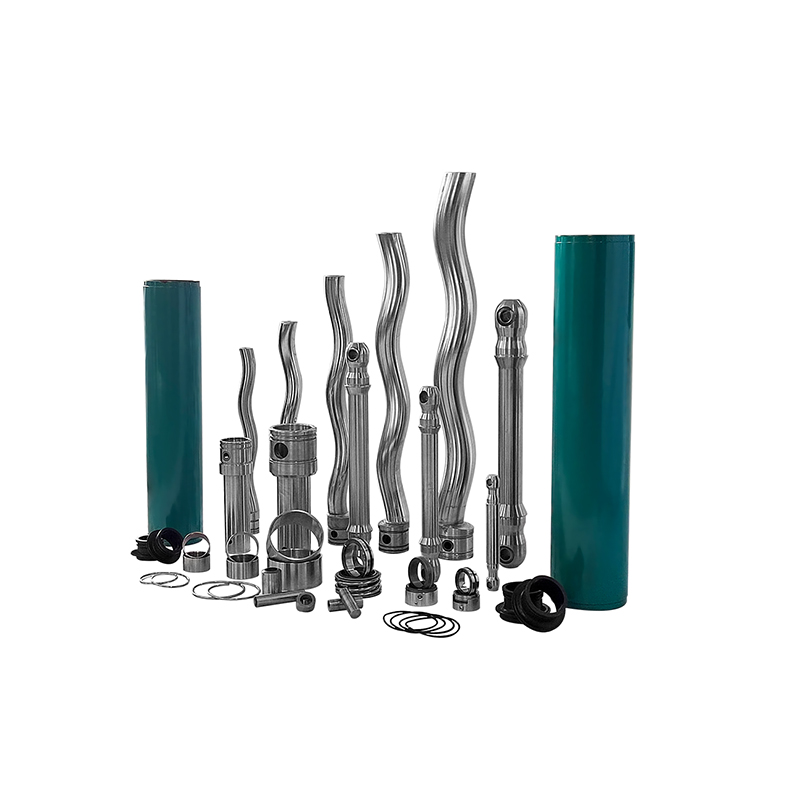

The main transmission medium components are the rotor and stator.
The rotor is a single - line spiral bent screw.
The stator is cylindrical in shape and has a double helix through hole inside.
When the rotor into the stator double line helix through the hole, there will be a closed cavity between them, when the rotor in the stator double line helix hole to do rotating motion at the same time, the closed cavity will be with the rotation of the rotor will be continuous uniform speed, constant volume extrusion forward, at the same time, the media from the suction closed cavity, the rotor with rotary motion media from the stator input to the output end of the stator.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced Progressing Cavity Pump Used for Waste Water suppliers and wholesale Progressing Cavity Pump Used for Waste Water manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
