Horizontal Multistage centrifugal pump with cast iron/stainless steel material

DN Range of Suction port: 50-400 mm (2"-16")
DN Range of Discharing port: 32-350 mm (1.5"-14")
Flow Capacity Range: 4-840 m3/h
Head/Pressure Range: 19-680 m
Power Range: 1.5-370 Kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

Type DD pump can deliver water without solid particle or the liquid,
it is suitable for delivering mater in mine and urban water project
etc.
The D series single-suction multistage centrifugal pumps is widely used system of high-pressure run hot and cold water circulation and booster pumps in parallel water supply of the high-rise building,fire, boiler feed water and cooling water systems and a variety of irrigation fluid conveying.
D Type Pump is Centrifugal Horizontal High Head High Pressure Single Suction Multistage Pump , high pressure high head is the advantage. Mainly used for high head pump required fields like: power plant, high building, long distance water delivery, water circulation, irrigation, fire fight etc.
D series is the horizontal multistage ring section pumps and high pressure pump. all the impellers are stacked in single direction on the same pump shaft. The rotors are perfectly dynamically balanced and the maximum stages can be up to 12stages.
D type horizontal multistage pump is the ideal for high pressure pumps application, for water and drinking water supply system, general industry, pressure boosting system, irrigation system, in power station, heating, filtration, fire-fighting, reverse osmosis and washing plants....etc

Product Details

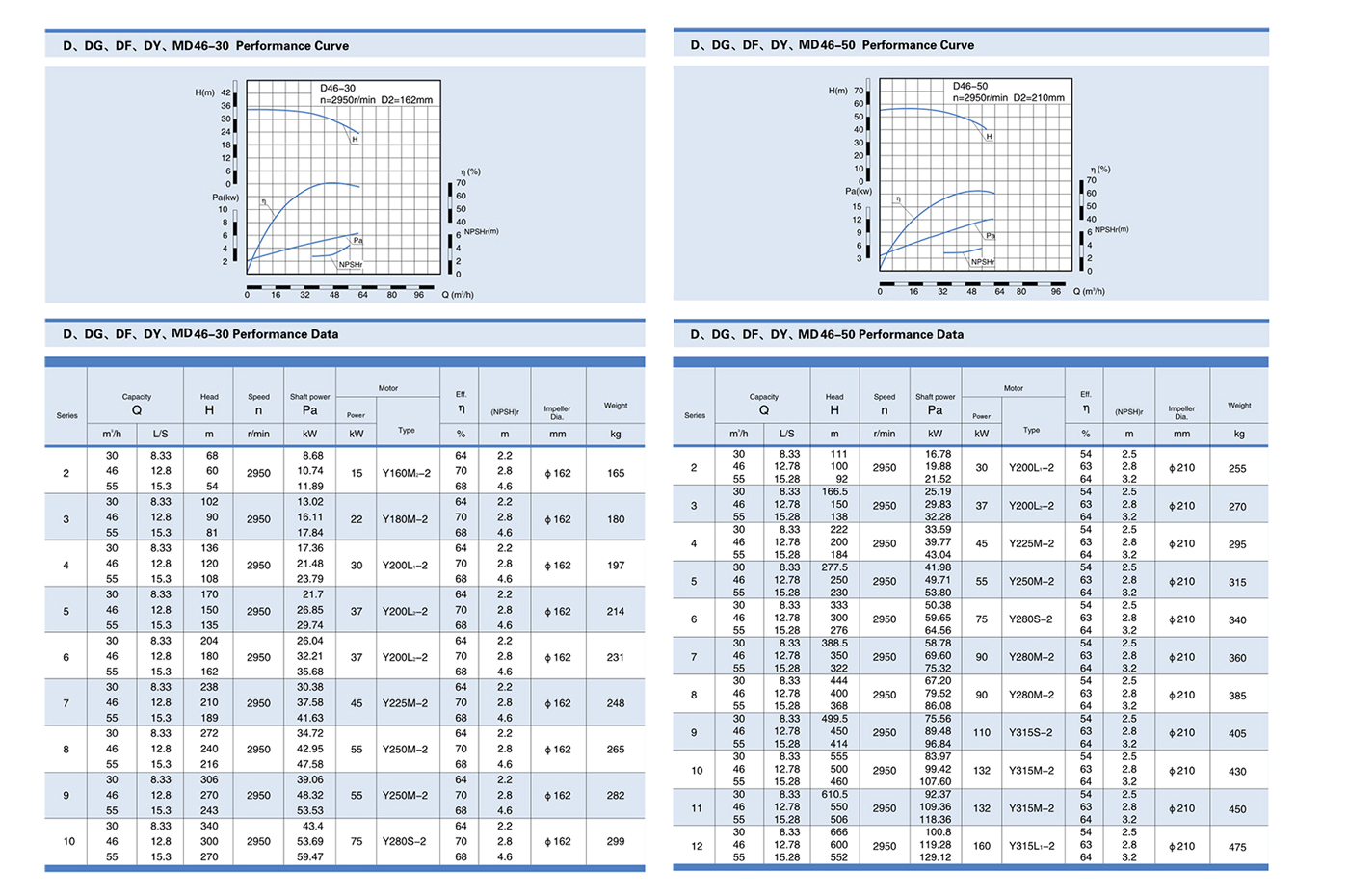

50Hz product parameter
60Hz product parameter
Videos
Q&A

The serial pump is muti stage section centrifugal pump, the excellent hydraulic models are hgh-efficiency, energy-saving, and have wide performance range, operating safety & steady, low noise,long life and istalling & repairing is very convenient etc. It can deliver heat water, oil, corrosive or wearable medium by changing the material,seal or adding cooling system.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced Horizontal Multistage centrifugal pump with cast iron/stainless steel material suppliers and wholesale Horizontal Multistage centrifugal pump with cast iron/stainless steel material manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
