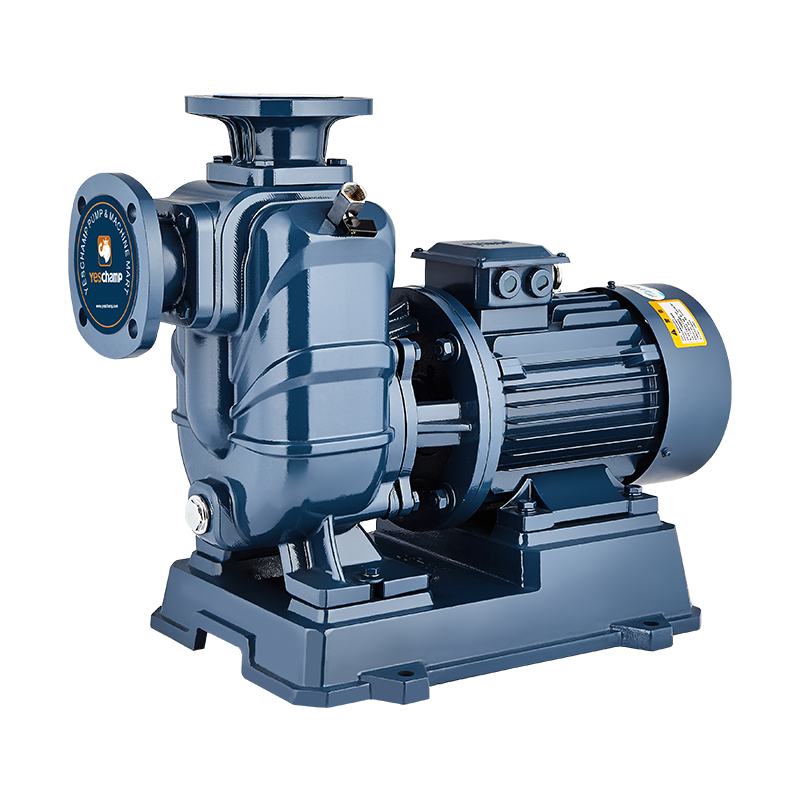

New Type Self-priming centrifugal pump

Self-Priming Pump

DN Range of Suction Pipe: 40-50 mm (1.5"-2")
DN Range of Discharing Pipe: 40-50 mm (1.5"-2")
Flow Capacity Range: 0-28m3/h
Head/Pressure Range: 0-45 m
Power Range: 1.5-4 Kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

PZQ series pump has excellent self-priming performance and strong sewage discharge capacity,with simple structure and beautiful appearance. It has unique oil chamber structure to ensure the reliable operation of mechanical seal.
PZQ series non-clogging self-priming sewage pump can be used to transport liquids containing suspended particles and fiber impurities, mainly used in the following industries. Environmental protection: municipal sewage, sewage treatmentIndustry: Paper, textile, dyesAgriculture: river pond farming, etc.
Compared with same kind of domestic pumps, these pumps are simple in design, excellent performance, high efficiency, convenient operation and maintenance etc.
This series horizontal sewage pump is suitable for using in industrial and mining enterprises, water supply for high buildings, agricultural irrigation and watering garden etc.
1.Ambient temperature<50 ℃,medium temperature <80 ℃ special request up to 200 ℃.
2.Medium PH value for 6-9 grade cast iron,stainless steel for 2-13.
3.The medium is not more than 1240kg of severe/m3.
4.Self-priming height can not exceed the value of 4.5-5.5 meters,suction pipe length<10m.
5.By the ability of suspended particles haveing a diameter of 60% of the diameter of the self priming centrifugal pump ,the pump diameter of a fiber length of 5 times.
1.Strong Self Suction (4-5 meter)
2.To prevent clogging
3.Material: Cast iron / Stainless steel

Product Details
50Hz product parameter
60Hz product parameter
Videos
Q&A

PZQ series non-clogging self-priming sewage pump is a novel structure, developed on the basis of repeated research on similar technologies in China and abroad. The pump adopts an external mixing structure, and combines self-priming and non-clogging functions together through the unique design of pump body and impeller flow passage.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced New Type Self-priming centrifugal pump suppliers and wholesale New Type Self-priming centrifugal pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
