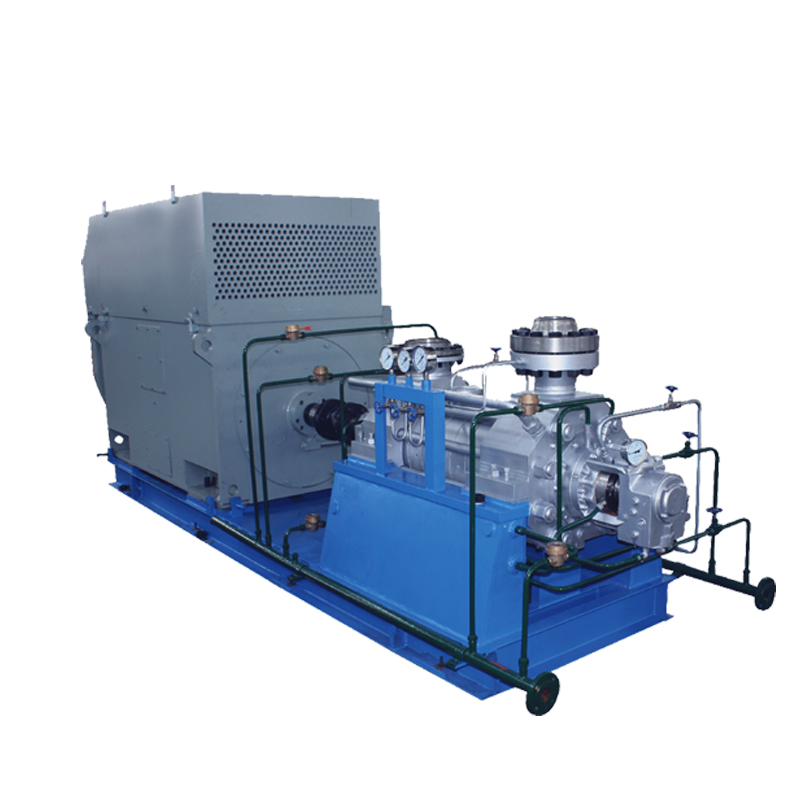

CG Series Horizontal Multistage Boiler Feed Water Pump

Flow : 25~780m3/h
Head : 200~2700m
Power : 55~3000kW
Port diameter : 80-250 mm

Chat Now Inquiry Now Add to My Favorite List Download Catalog

Product Details

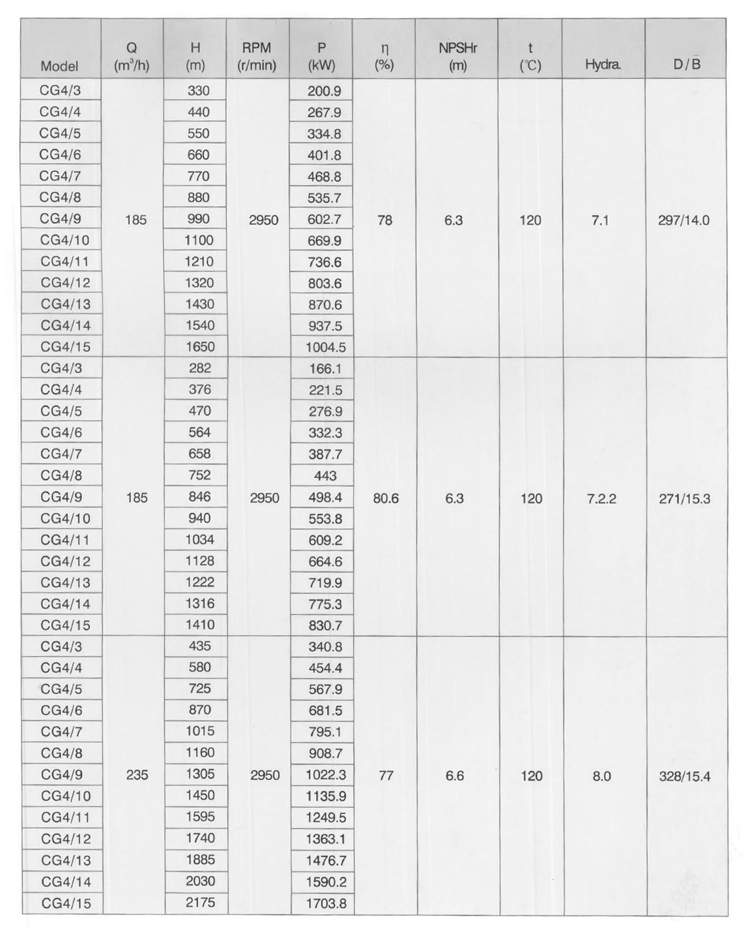

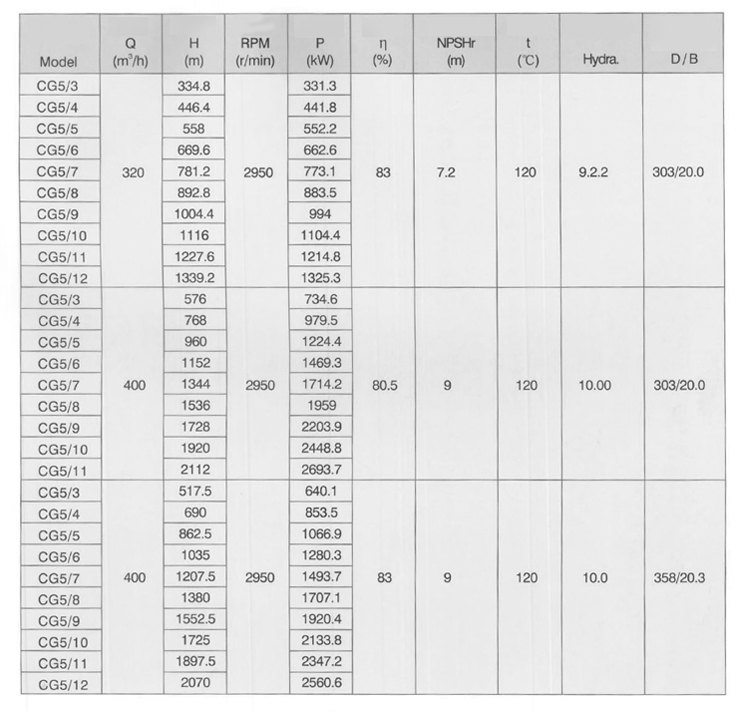

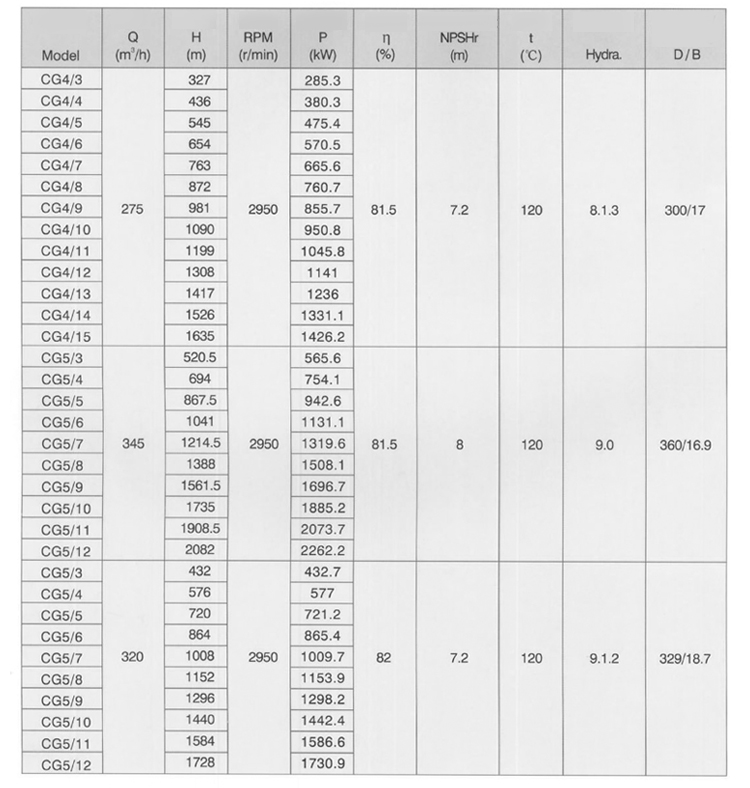

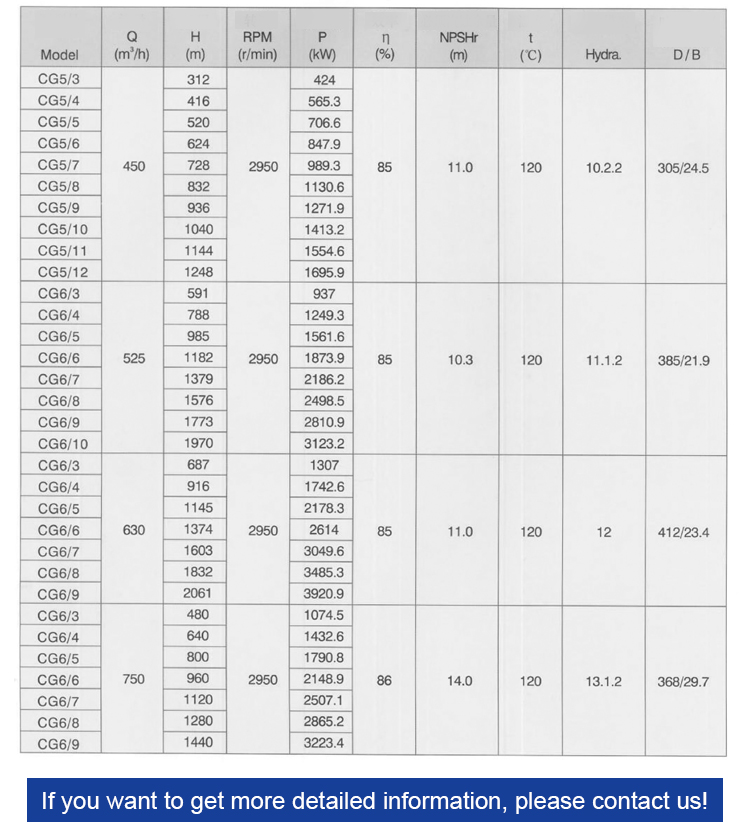

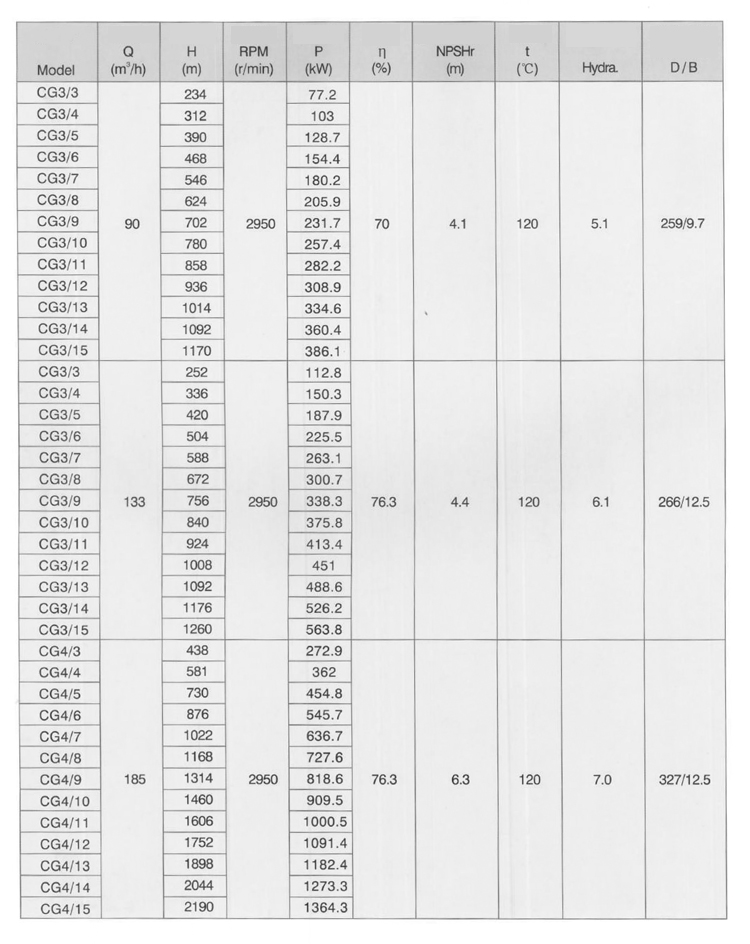

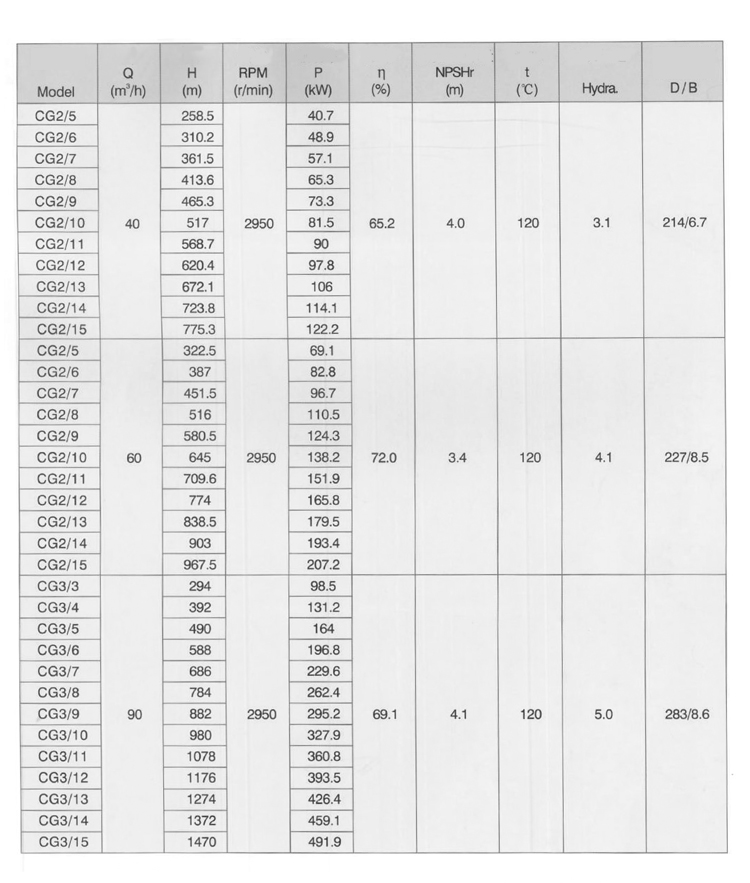

50Hz product parameter
60Hz product parameter
Videos
Q&A

Products Description

CG Series Horizontal Multistage Boiler Feed Water Pump is a multistage centrifugal pump used for conveying clean water or any other liquids with similar physical and chemical properties to water. It is suitable for power plant high-pressure boiler water supply, dephosphorization in steel plants, chemistry, and other pressure media fields.

Driving of Pump Unit

Direct driving: pump-electric motor/ steam turbine/internal combustion

Indirect driving: pump-hydraulic coupling/gearbox- electric motor

Model meaning
CG B 4/10
CG:High pressure centrifugal pump
B: Pump material code
4: Pump size
10: No. of stages

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced CG Series Horizontal Multistage Boiler Feed Water Pump suppliers and wholesale CG Series Horizontal Multistage Boiler Feed Water Pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
