XBD Fire Fighting Water Single suction centrifugal pump

Fire Pump and System

DN Range of Suction Pipe: 25-350 mm (1"-14")
DN Range of Discharing Pipe: 25-350 mm (1"-14")
Flow Capacity Range: 0-5000 GPM
Head/Pressure Range: 1-15 Bar
Power Range: 0.75-250Kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

The industrial fire pump have two different model, vertical and horizontal design suitable for any installation.The stainless steel 304 or casting material is available for all models
The pump is low cost with attractive outlook. Its vertical structure guarantees that it is less space demand, and the gravity point is in the center of the pump legs, which improves the performance more smooth and longer service life.
The electric pump is coupled with YE3 high efficient motor with protection IP55 class F,and both square motor & round motor available, anti-corrosive coating pump case, quality NSK bearings, and wear resistance mechanical seal. Cast iron, brass and stainless steel impellers are all available.
The suction inlet and the discharge opening are at the same level, which simplifies the installation of the pipelines.The pump head range can be changed by cutting the pump impeller to meet the special needs. There is no need to change the installation area.
XBD fire pump is used to deliver non-grain clean water and fluids similar with water in physio-chemical property. It is mainly used for pressuring water supply in fire system; also it can be used for water drainage in factories and mines.

Product Details

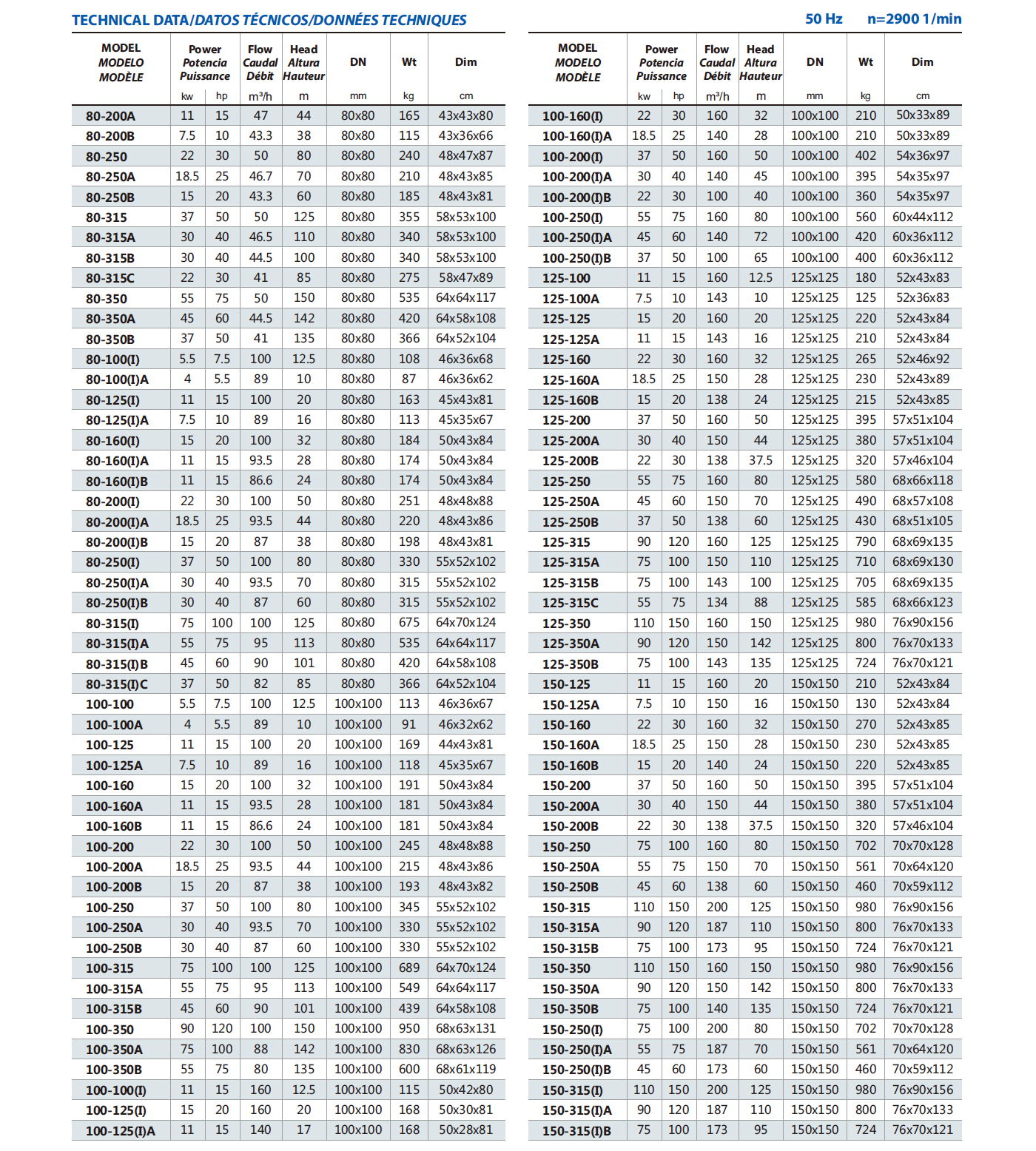

50Hz product parameter

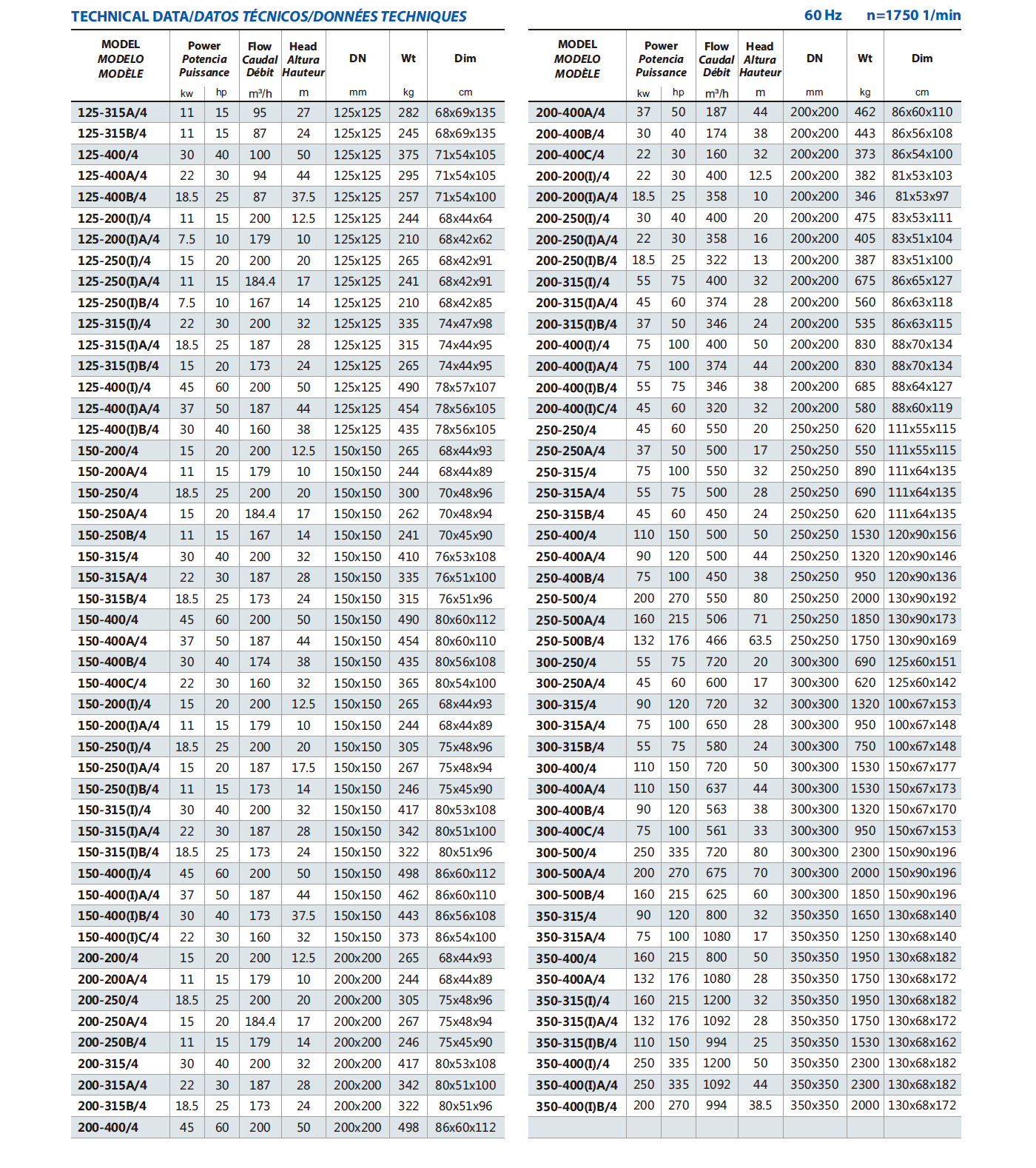

60Hz product parameter
Videos
Q&A

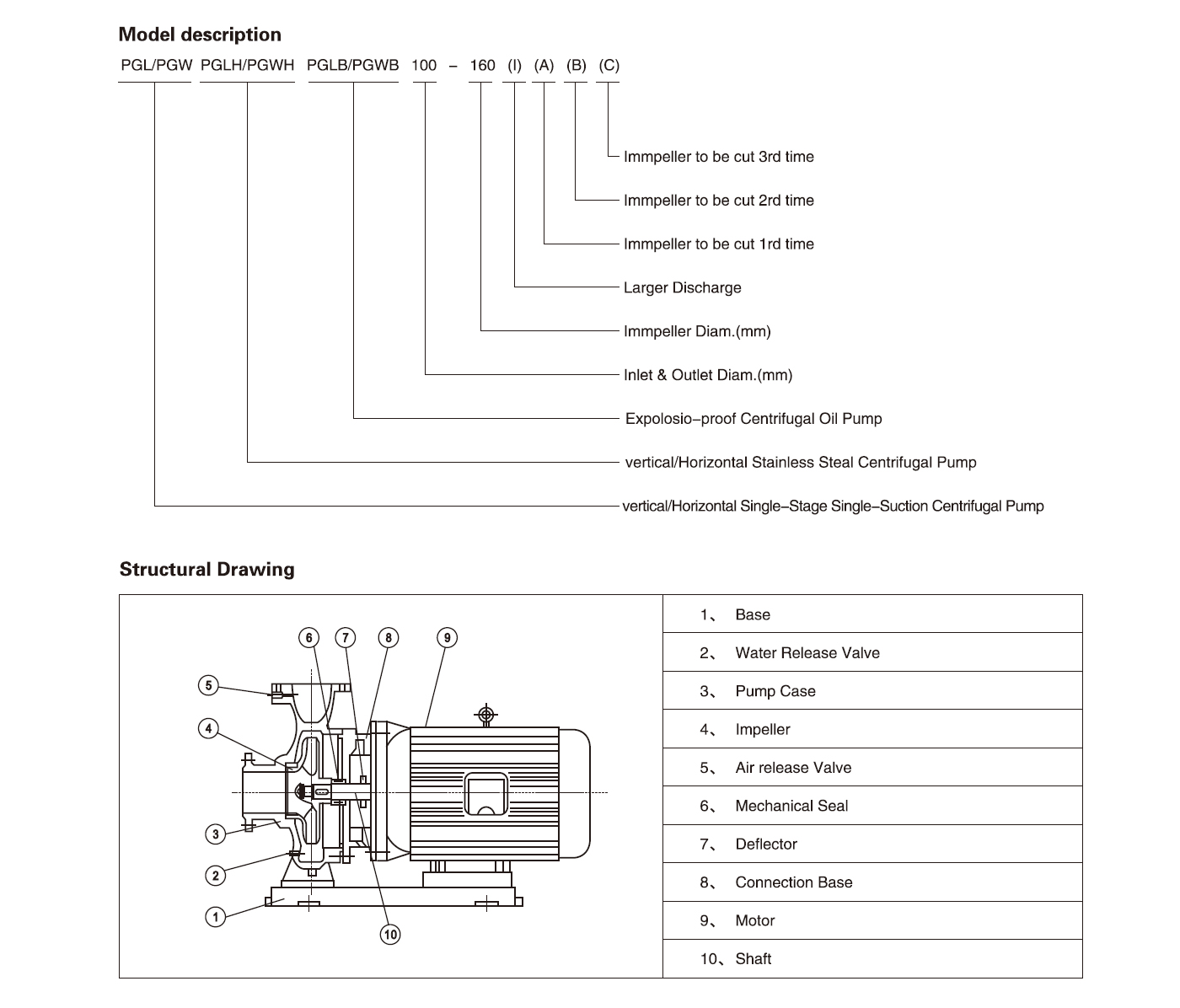

XBD fire industrial centrifugal pump is composed of three parts: motor, link and pump head,which generally used as the main pump of the fire fighting system.The water pump is connected by flanges, and each component adopts better materials, which enhances the service life of the water pump.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced XBD Fire Fighting Water Single suction centrifugal pump suppliers and wholesale XBD Fire Fighting Water Single suction centrifugal pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
