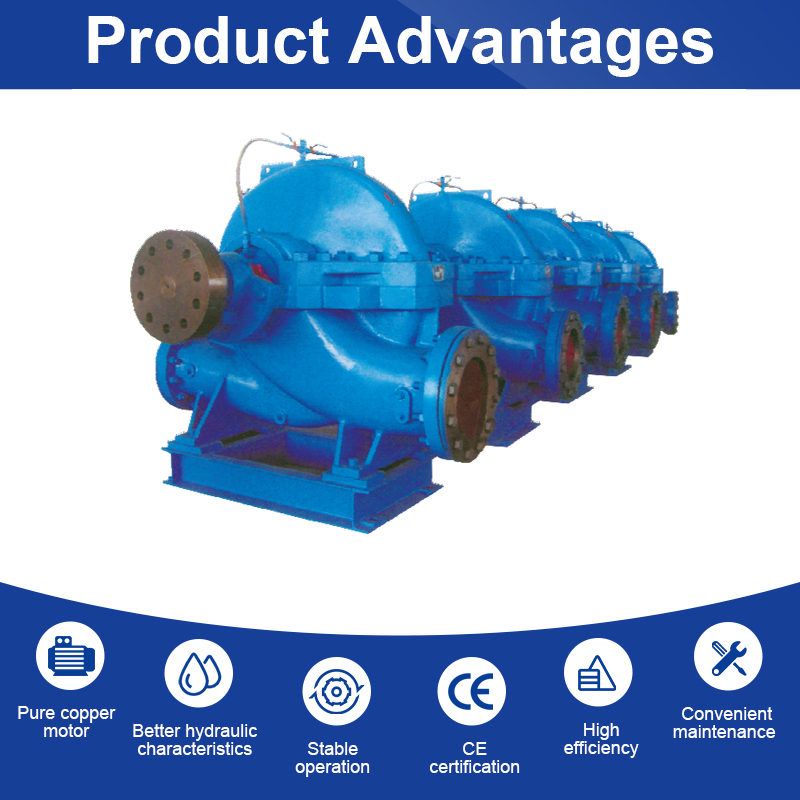

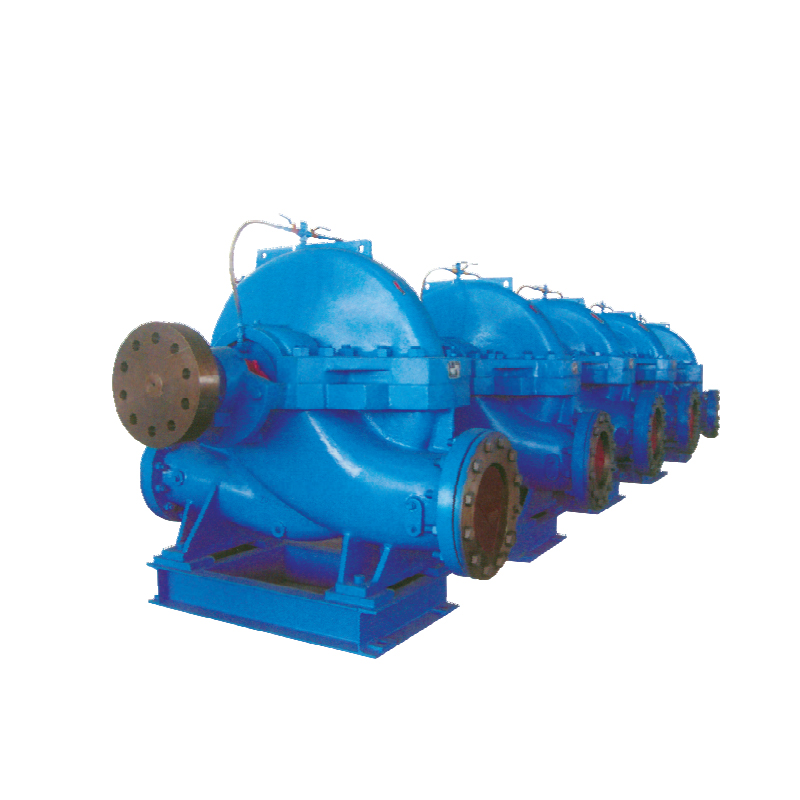

OTSR Series Horizontal Hot Water Circulation Split Case Pump

Max. Flow：4500m3/h
Max. Head：170m
Power Range：15-1250KW

Chat Now Inquiry Now Add to My Favorite List Download Catalog

Product Details
50Hz product parameter
60Hz product parameter
Videos
Q&A

Features

The pump casing is designed to open in the middle, which is convenient for disassembly
and inspection.
The double suction design has excellent suction performance and ensures high suction lift even in high flow operation.
mechanical seal and gland packing both ok.
reliable operation
The transfer shaft can be on the left or right side of the pump.
low noise, high efficiency and low energy consumption

Applications

Metallurgy, power station, plastics, rubber,
textile, chemical industry, wood and papermaking and other departments transport high-pressure hot water not higher than 165℃
without particles and dri

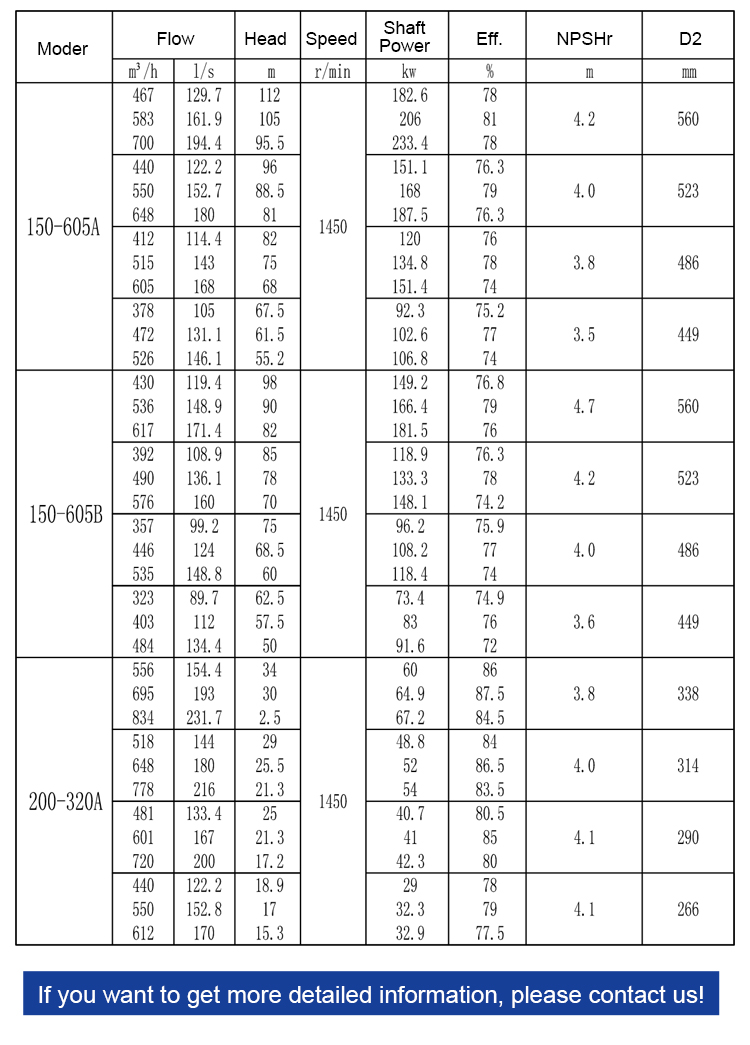

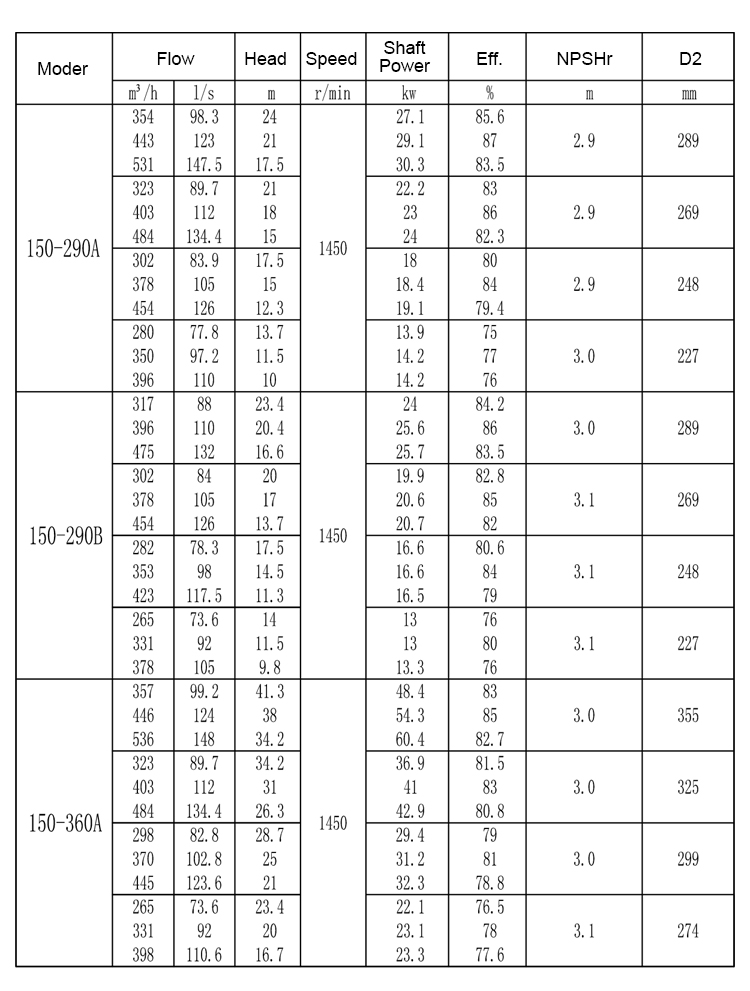

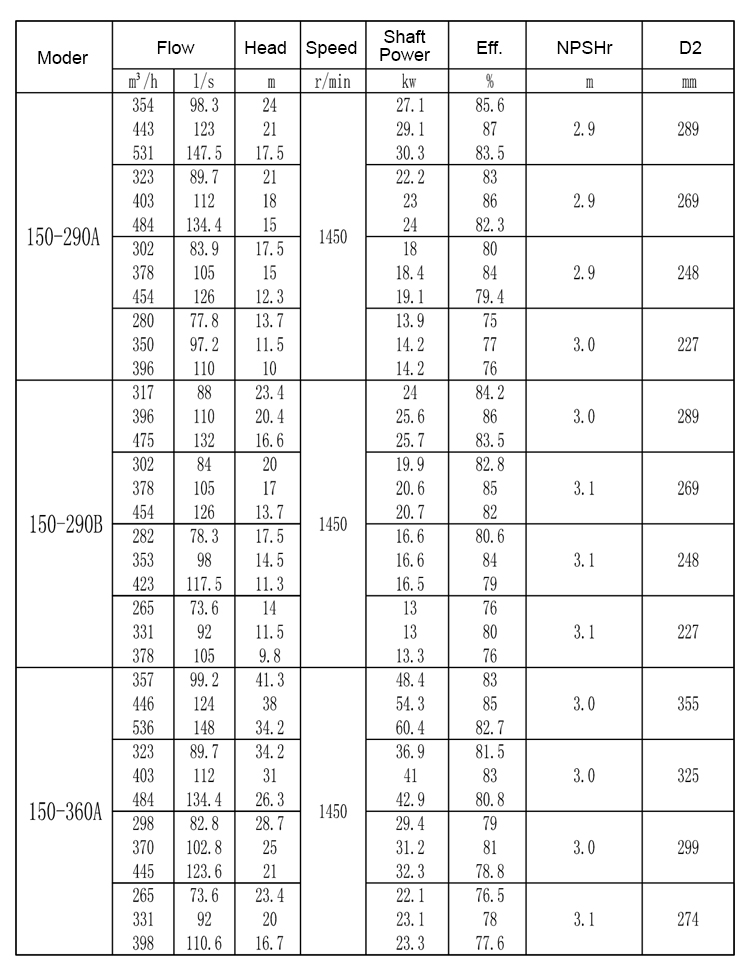

TECHNICAL DATA

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced OTSR Series Horizontal Hot Water Circulation Split Case Pump suppliers and wholesale OTSR Series Horizontal Hot Water Circulation Split Case Pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
