High Performance Horizontal End Suction Centrifugal Pump

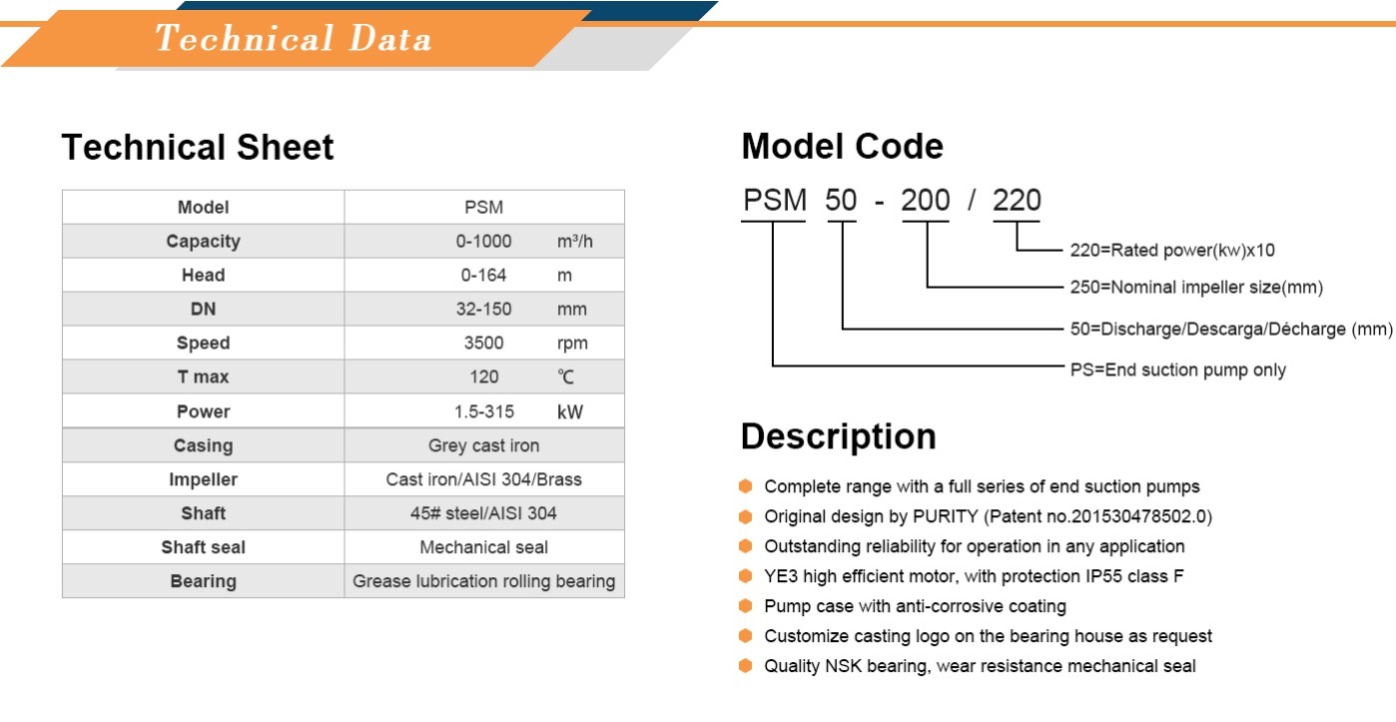

  • DN Range of Suction Pipe: 50-300 mm (2"-12")
  • DN Range of Discharing Pipe: 32-250 mm (1.5"-10")
  • Flow Capacity Range: 0-1500m3/h
  • Head/Pressure Range: 0-164 m
  • Power Range: 0.75-315 Kw
Chat Now Inquiry Now Add to My Favorite List Download Catalog
  • PSMF series pump according to EN733 standard, which has two appearances, circle type and square type, with same performance.

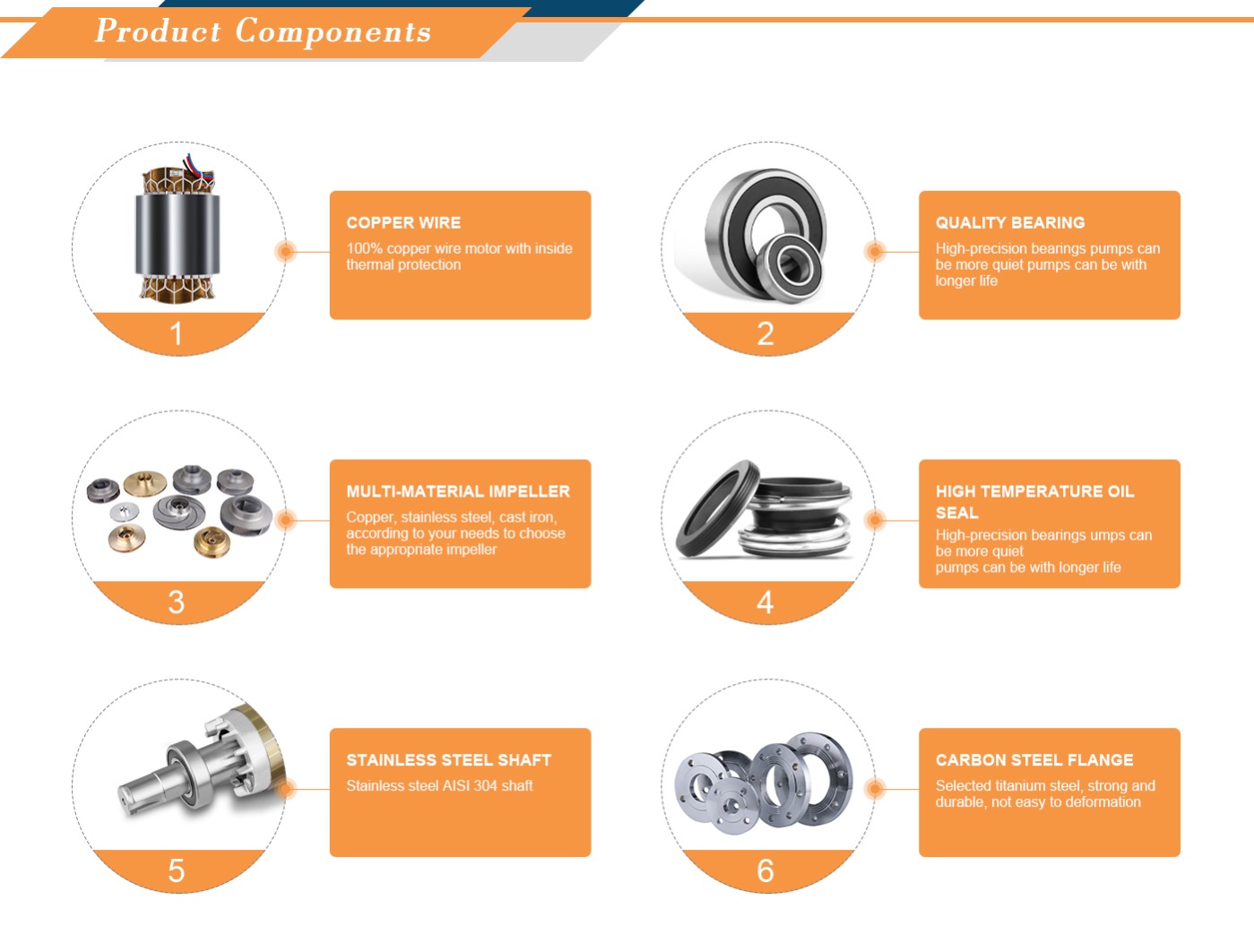

  • The motor is YE3 high efficiency motor, IP55, Class F,copper wire, anti-corrosive coating pump case, and wear resistance mechanical seal.

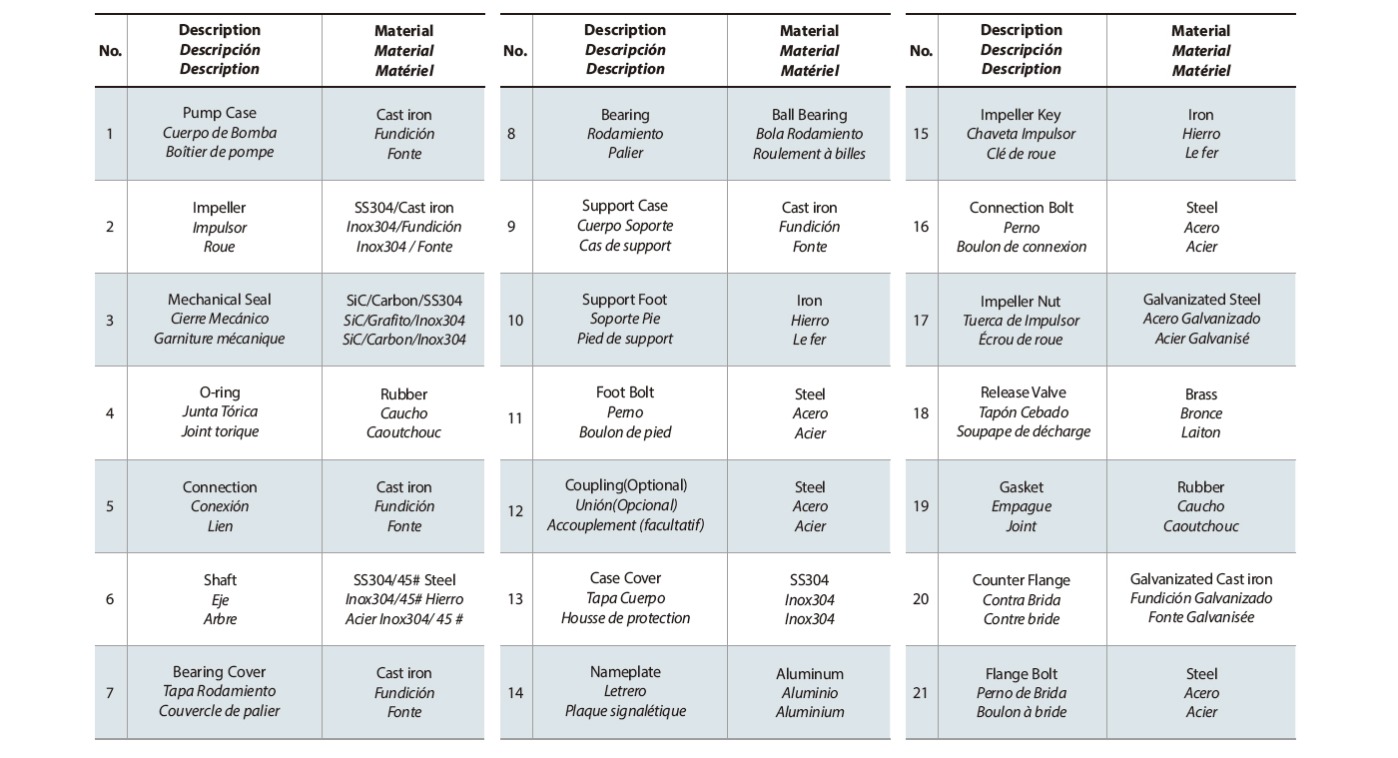

  • The Impeller material can be cast iron/ stianless stell/ brass, according to occasions demand, also used as customer demand
  • Pumps of the same model have different performance levels basing on different diameter after impeller trimming .
  • PSMF is easy to be installed and maintained, pump casing and motor can remain in position while other spare parts are removed. Customized design is available, OEM and ODM are welcomed.
  • Product Details

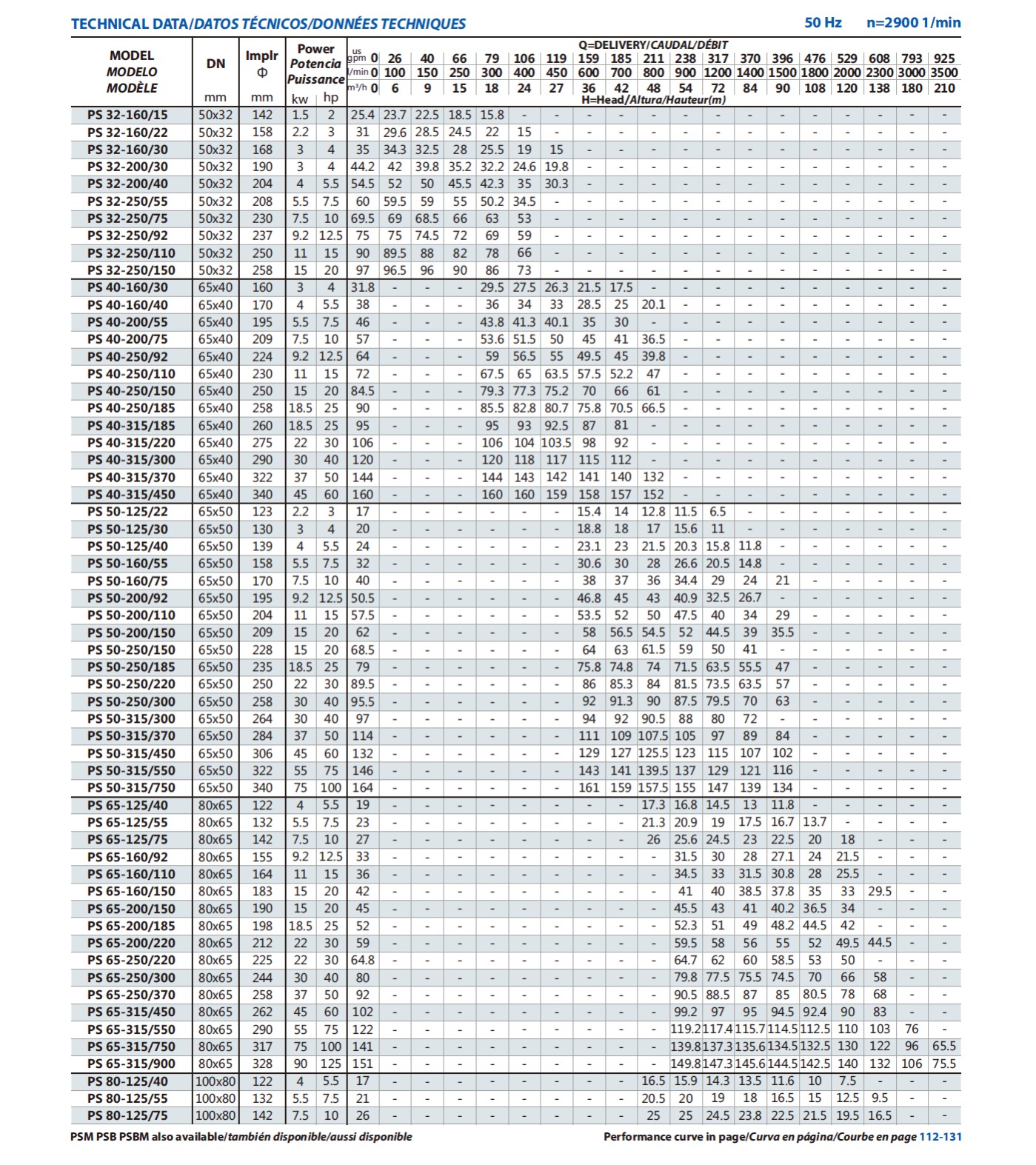

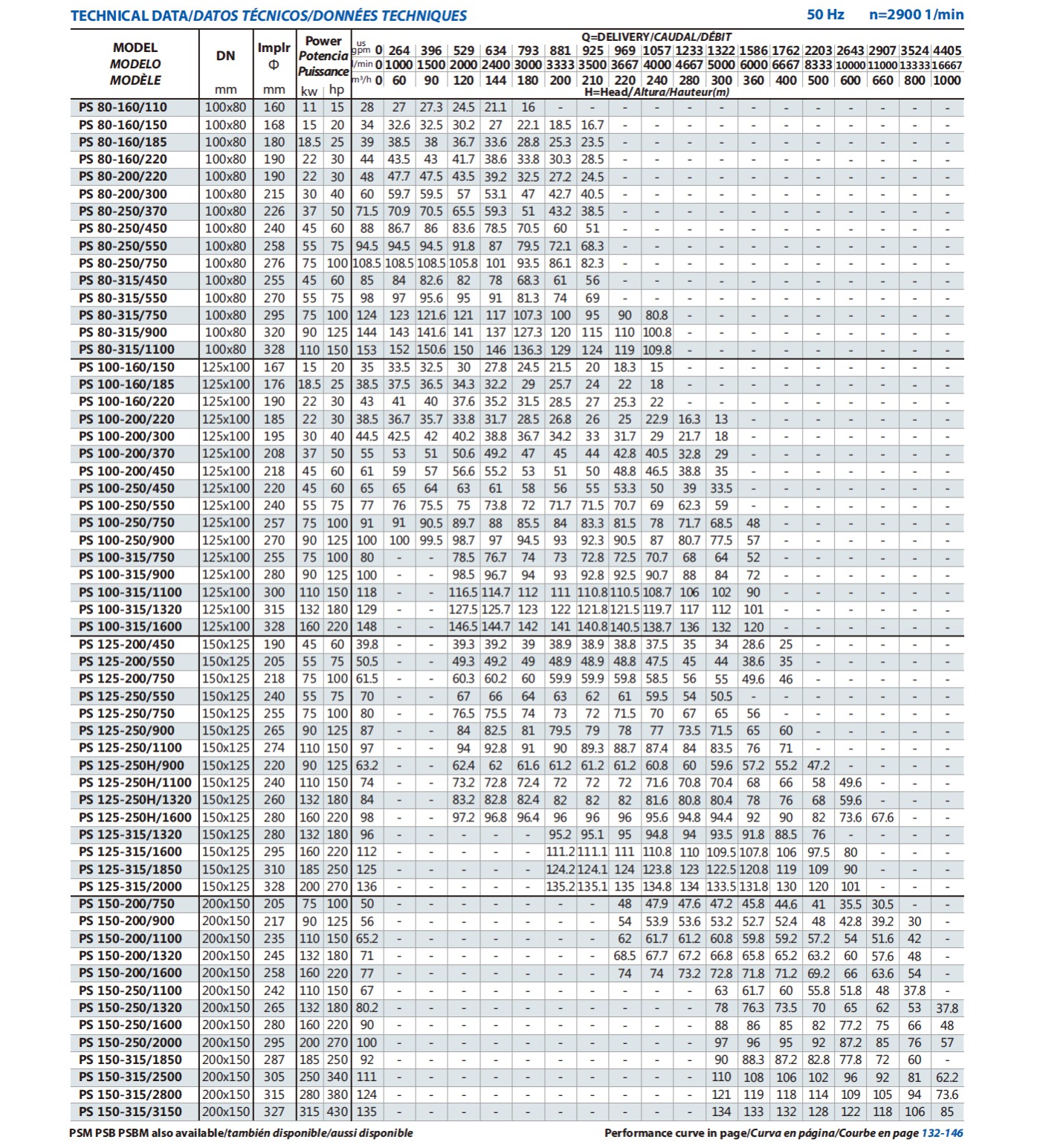

  • 50Hz product parameter

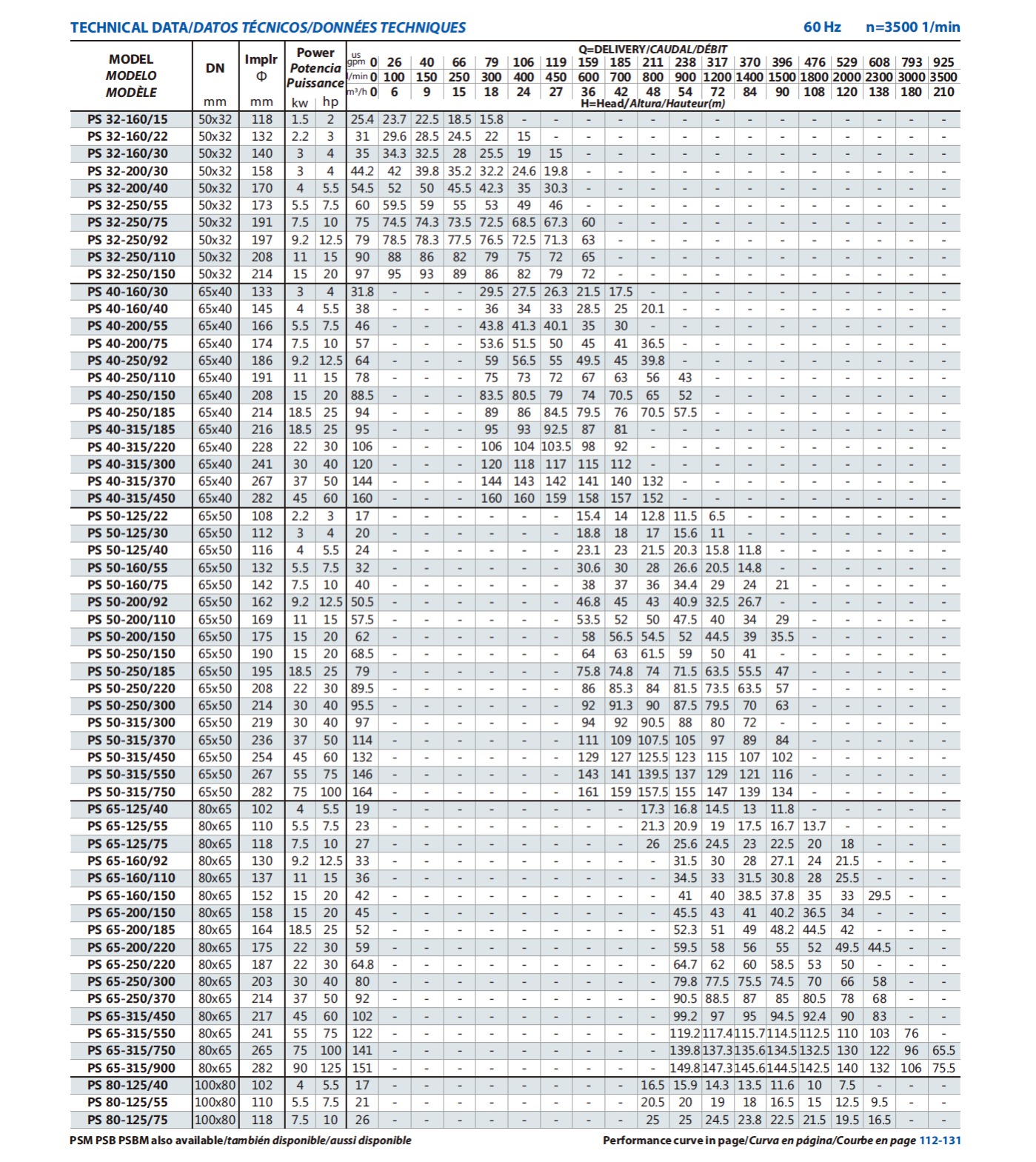

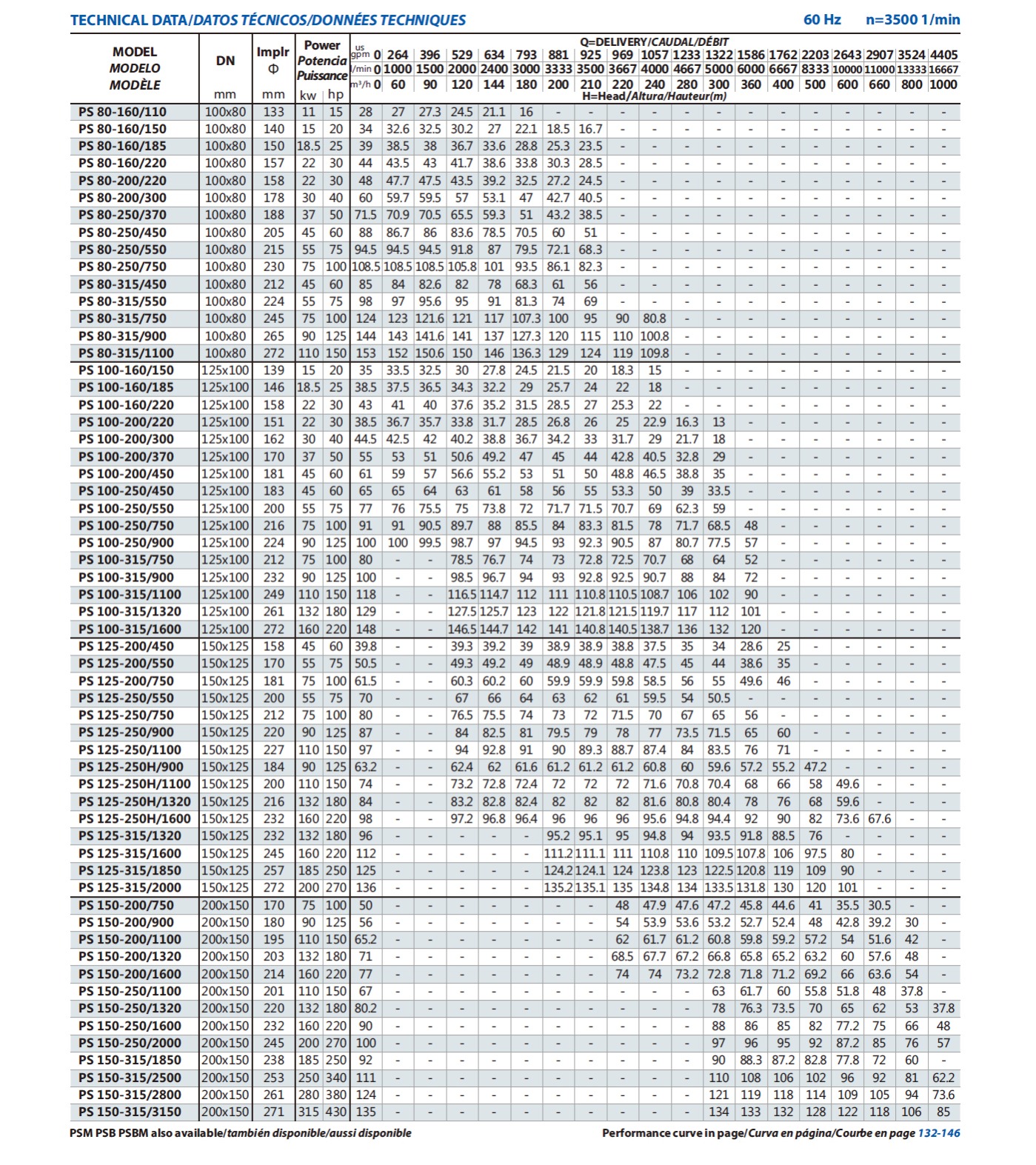

  • 60Hz product parameter
  • Videos
  • Q&A

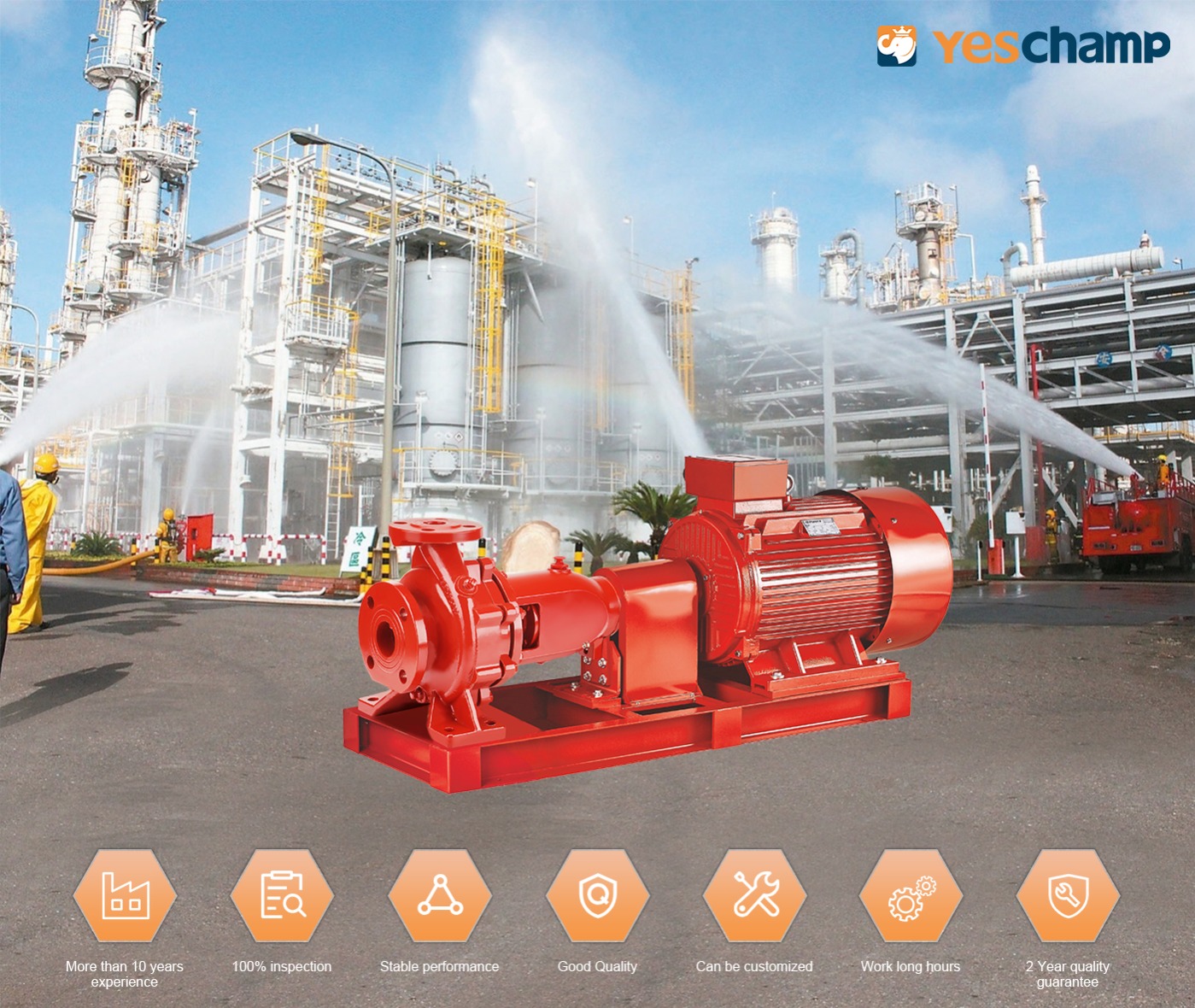

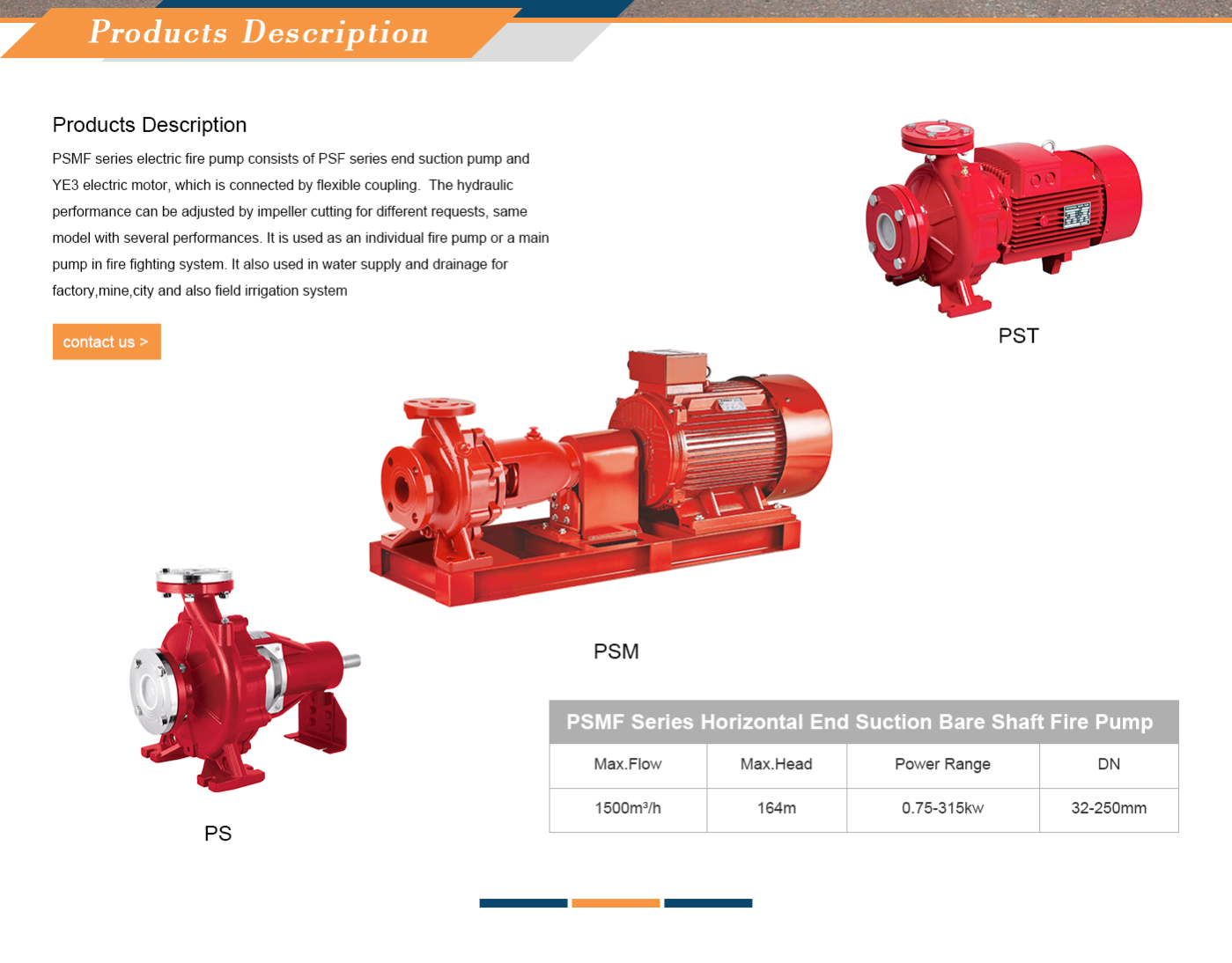

PSMF series electric fire pump consists of PSF series end suction pump and YE3 electric motor, which is connected by flexible coupling. The hydraulic performance can be adjusted by impeller cutting for different requests, same model with several performances. It is used as an individual fire pump or a main pump in fire fighting system. It also used in water supply and drainage for factory,mine,city and also field irrigation systemPSM End Suction PumpProducts DescriptionProduct ComponentsApplicationCertificate
We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced High Performance Horizontal End Suction Centrifugal Pump suppliers and wholesale High Performance Horizontal End Suction Centrifugal Pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
