QJD/SD series submersible deep well water pump for irrigation

Pump body : 75-100 mm (2.5"-4") DN Range of Discharing Port: 25-50 mm (1"-2")
Flow Capacity Range: 0-21m3/h
Head/Pressure Range: 0-300 m
Power Range: 0.25-7.5kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

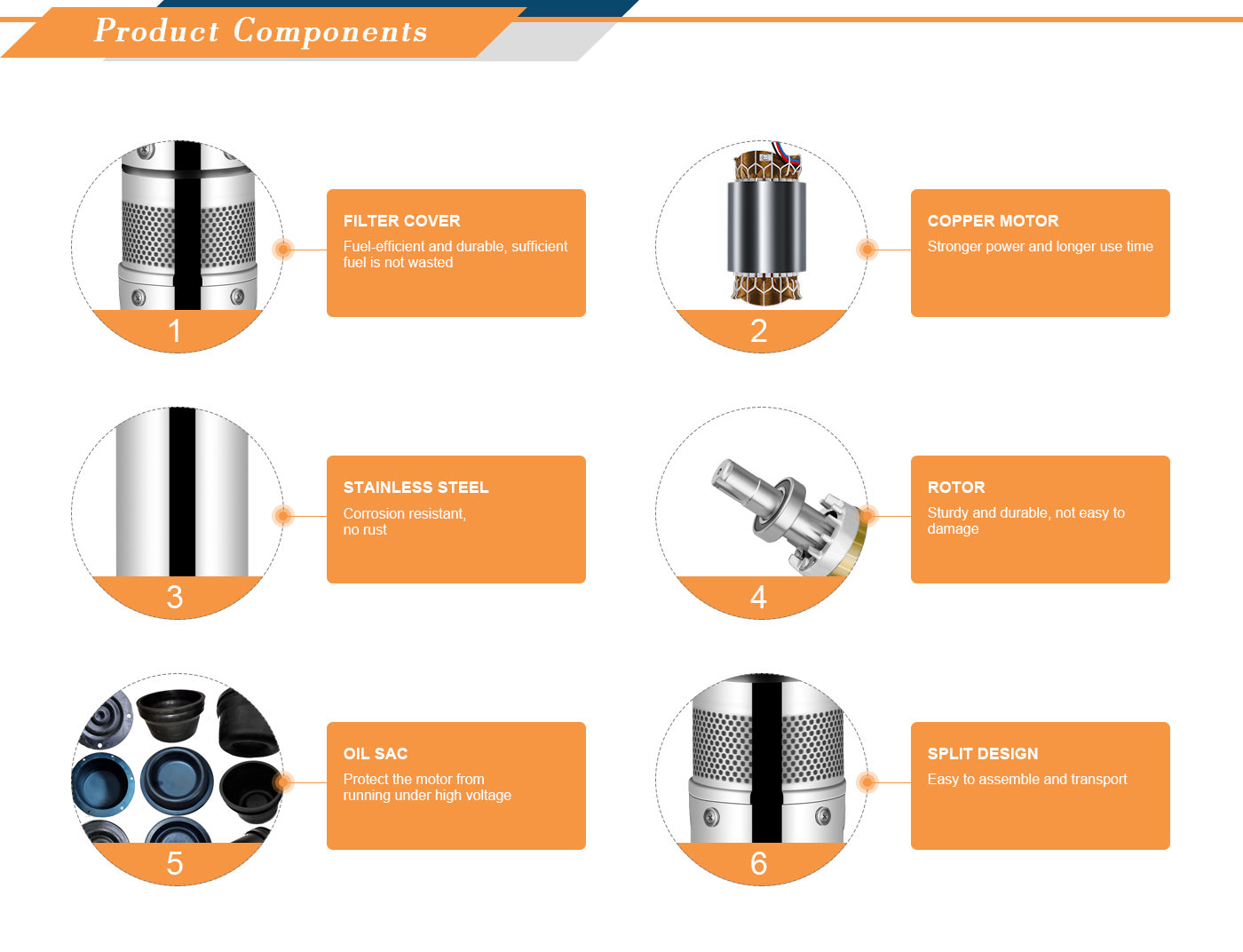

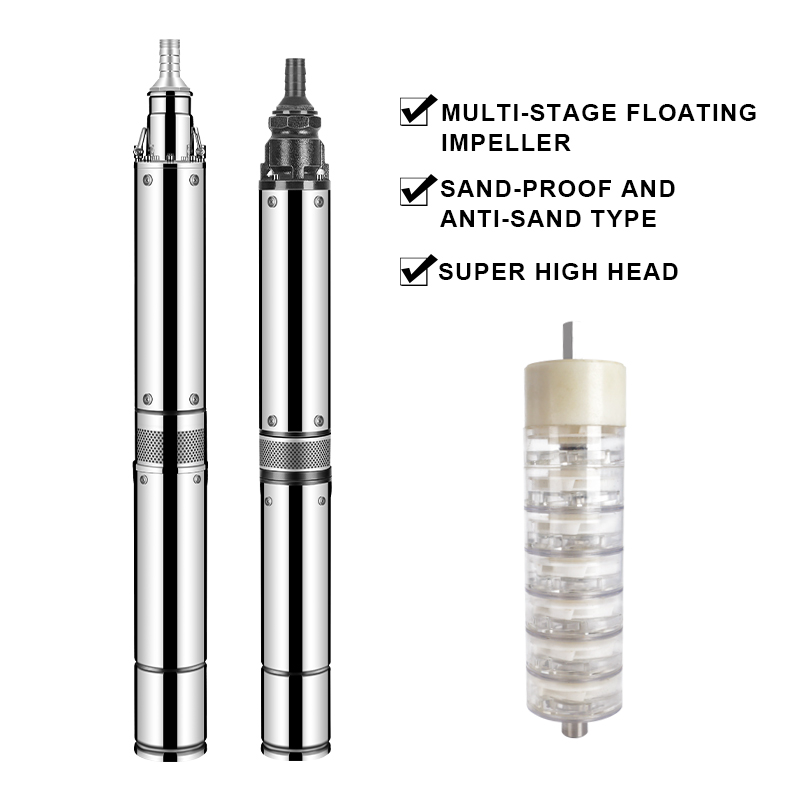

QJD/SD series pump consists of impeller, pump body, motor and connection. The impeller is the important part of the pump performance. Impeller can be PPO and stainless steel
For deep well pump, it is put under the water, usually used in well water transfer, so the pump diameter must small than the well diameter
For the inlet and support of the pump, there are 3 materials, brass/ stainless steel/ cast iron, it is depend on customers demand.
Three phase deep well pump can be controled by control panel, single phase usually without control panel, it has the capacitor inside.
For cable, we have blue flat cable and black round cable for choose.

Product Details

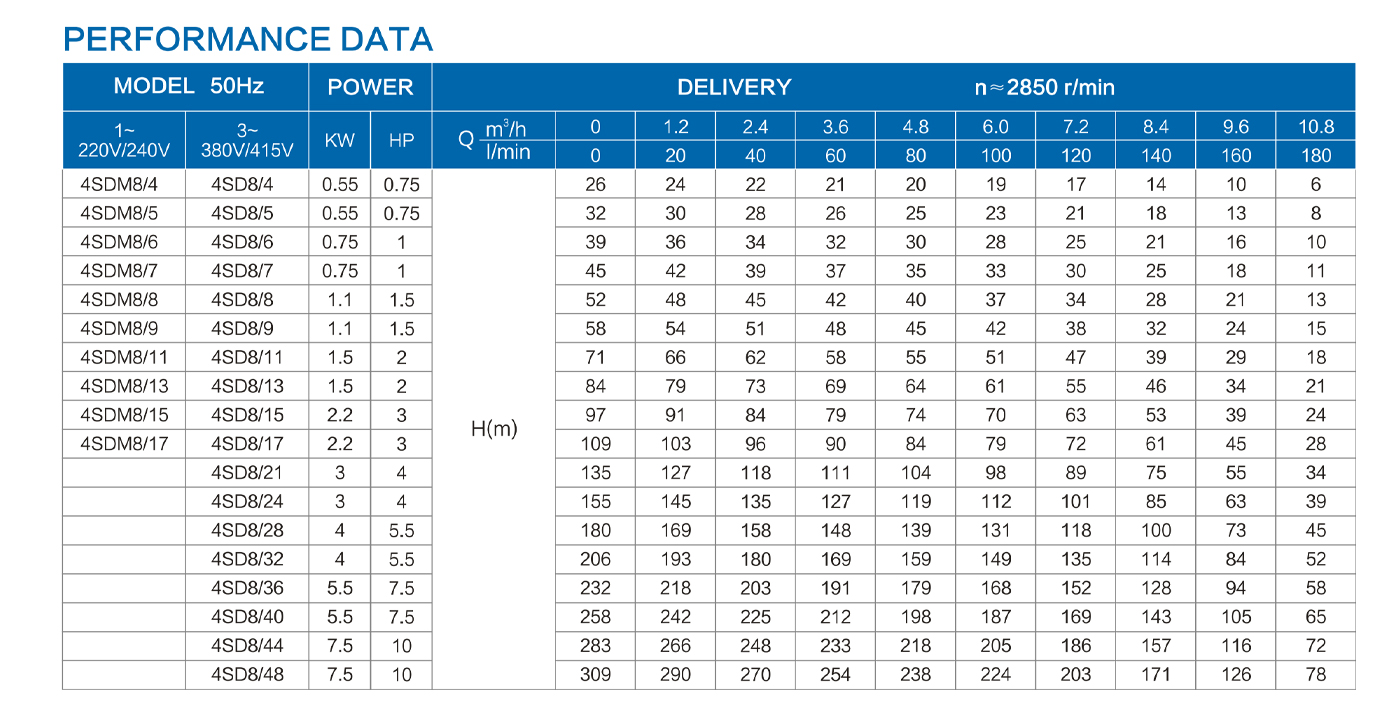

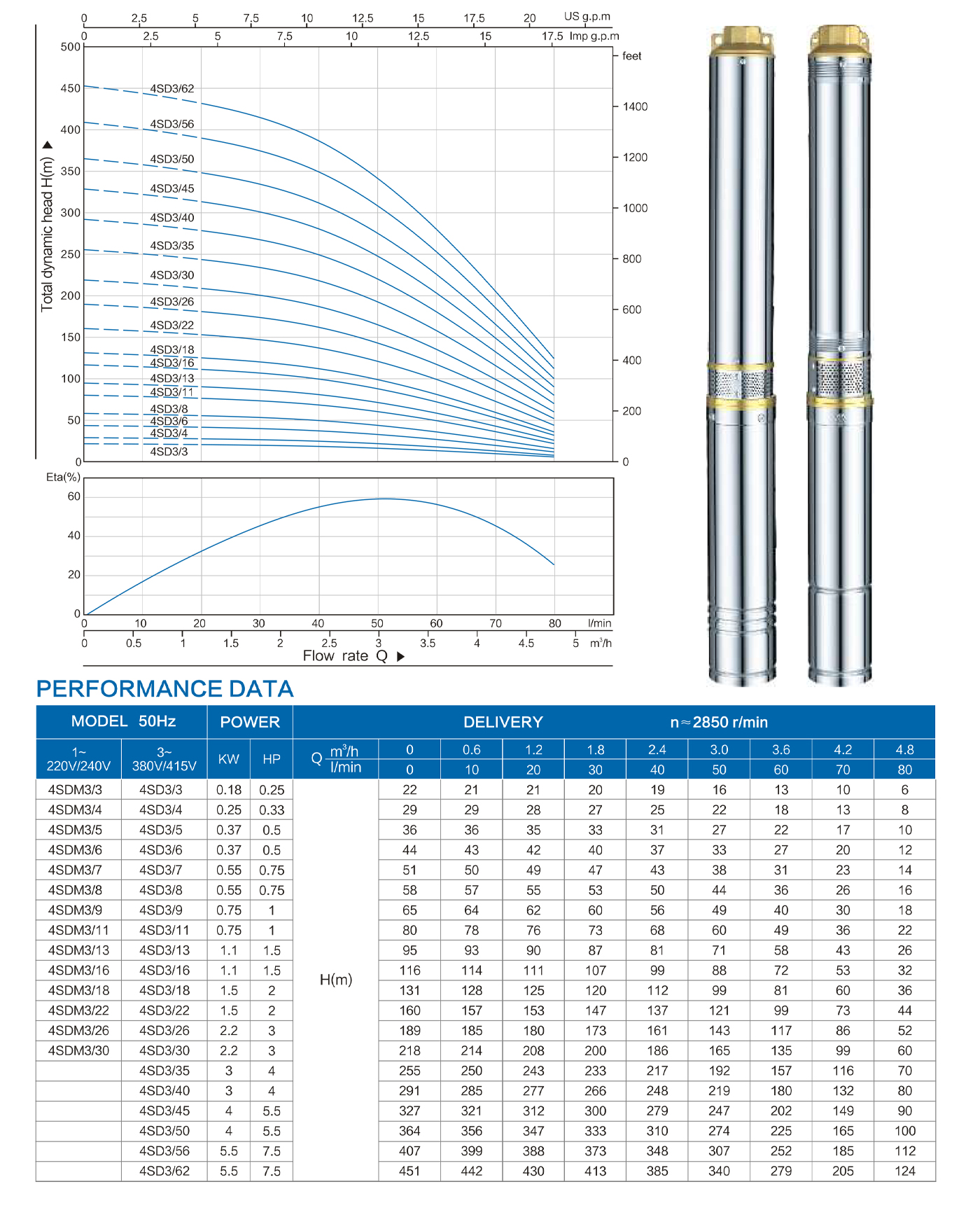

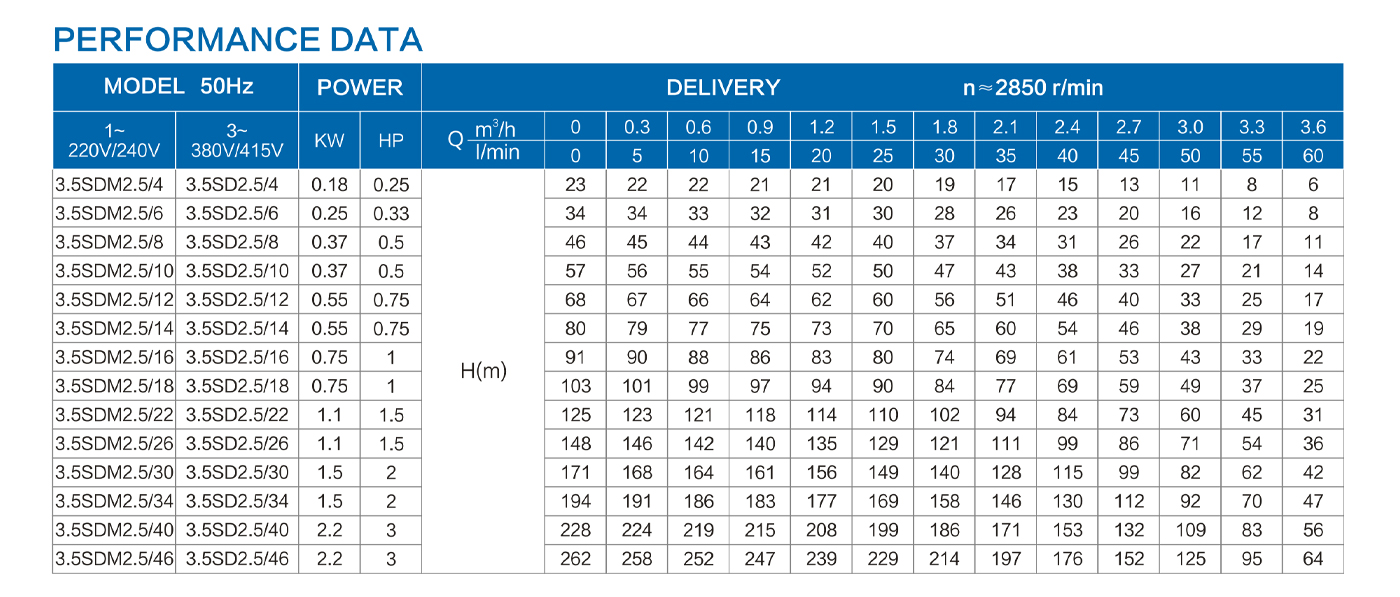

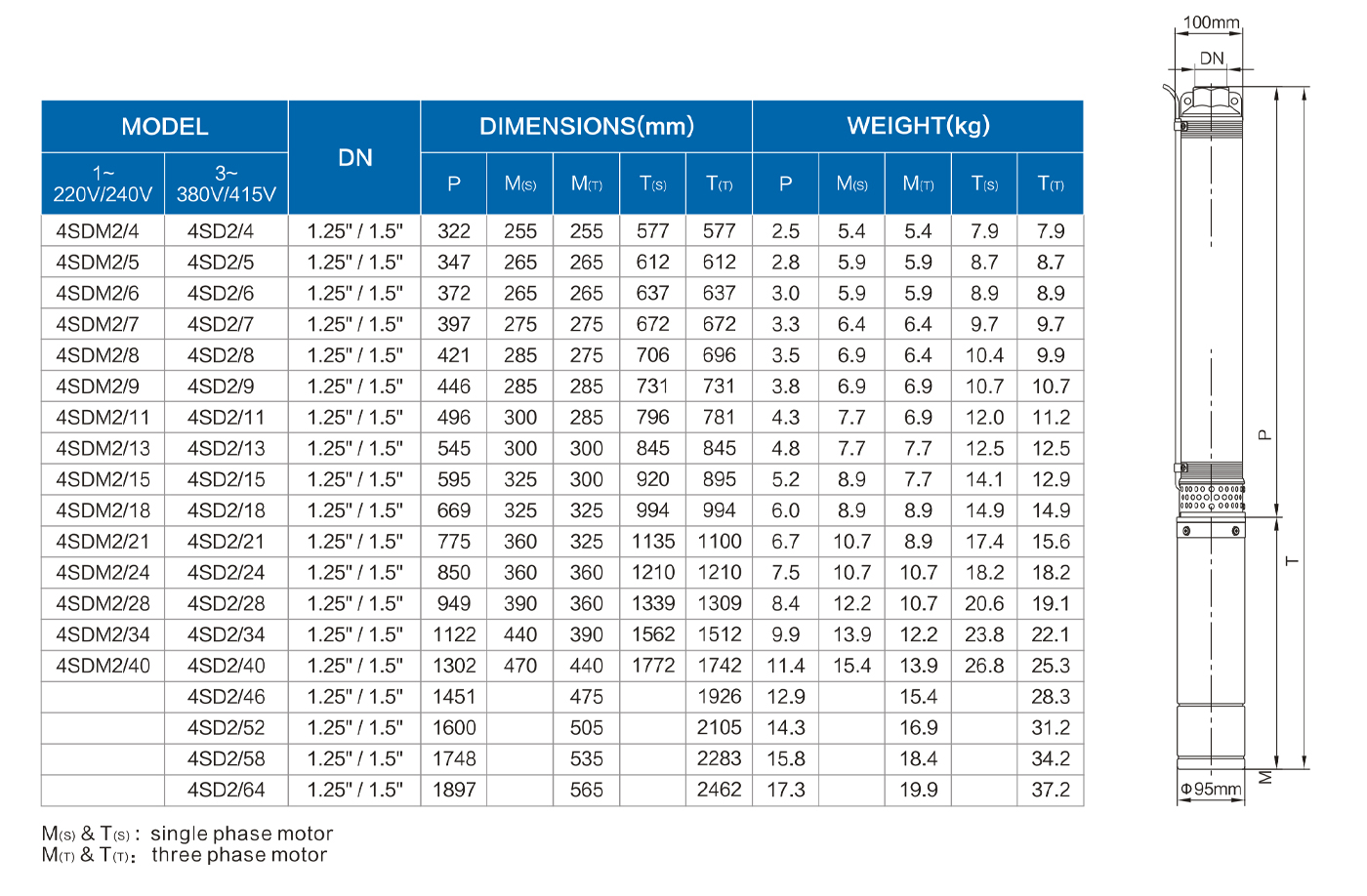

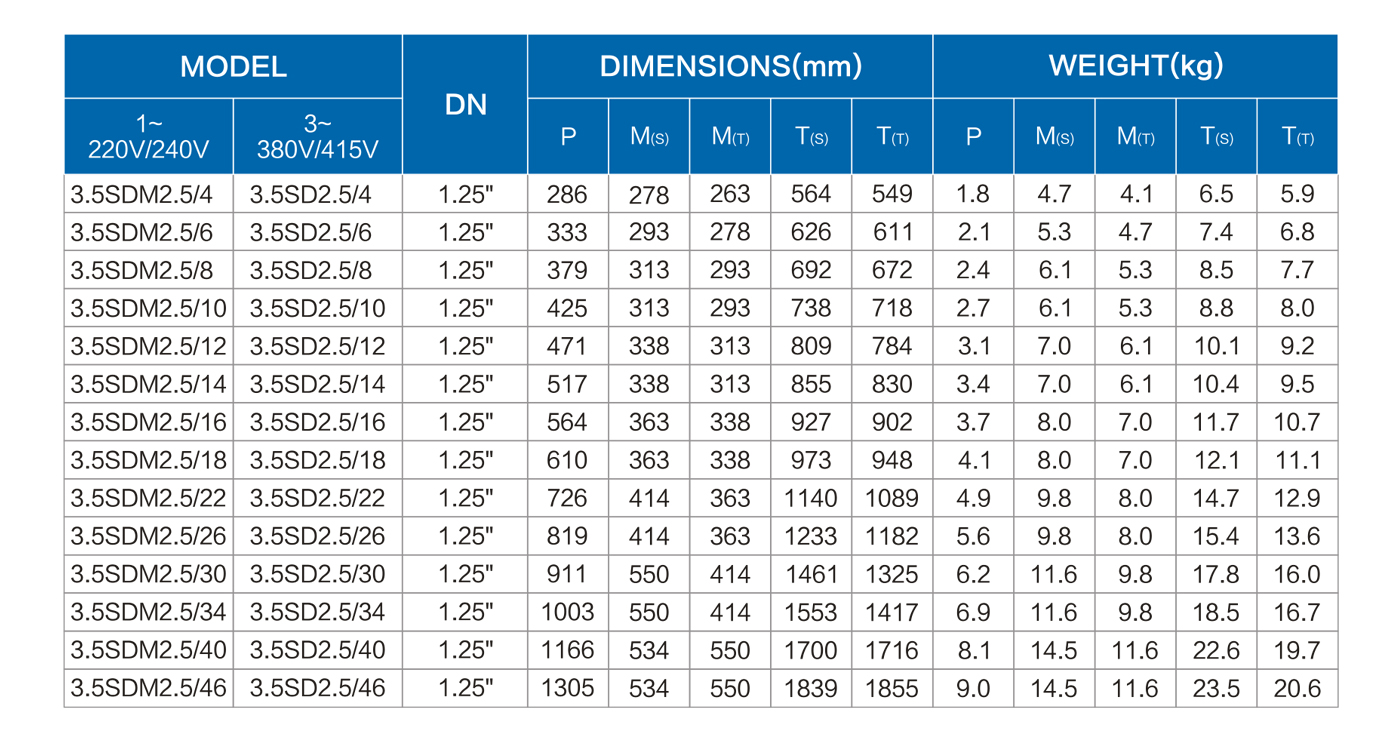

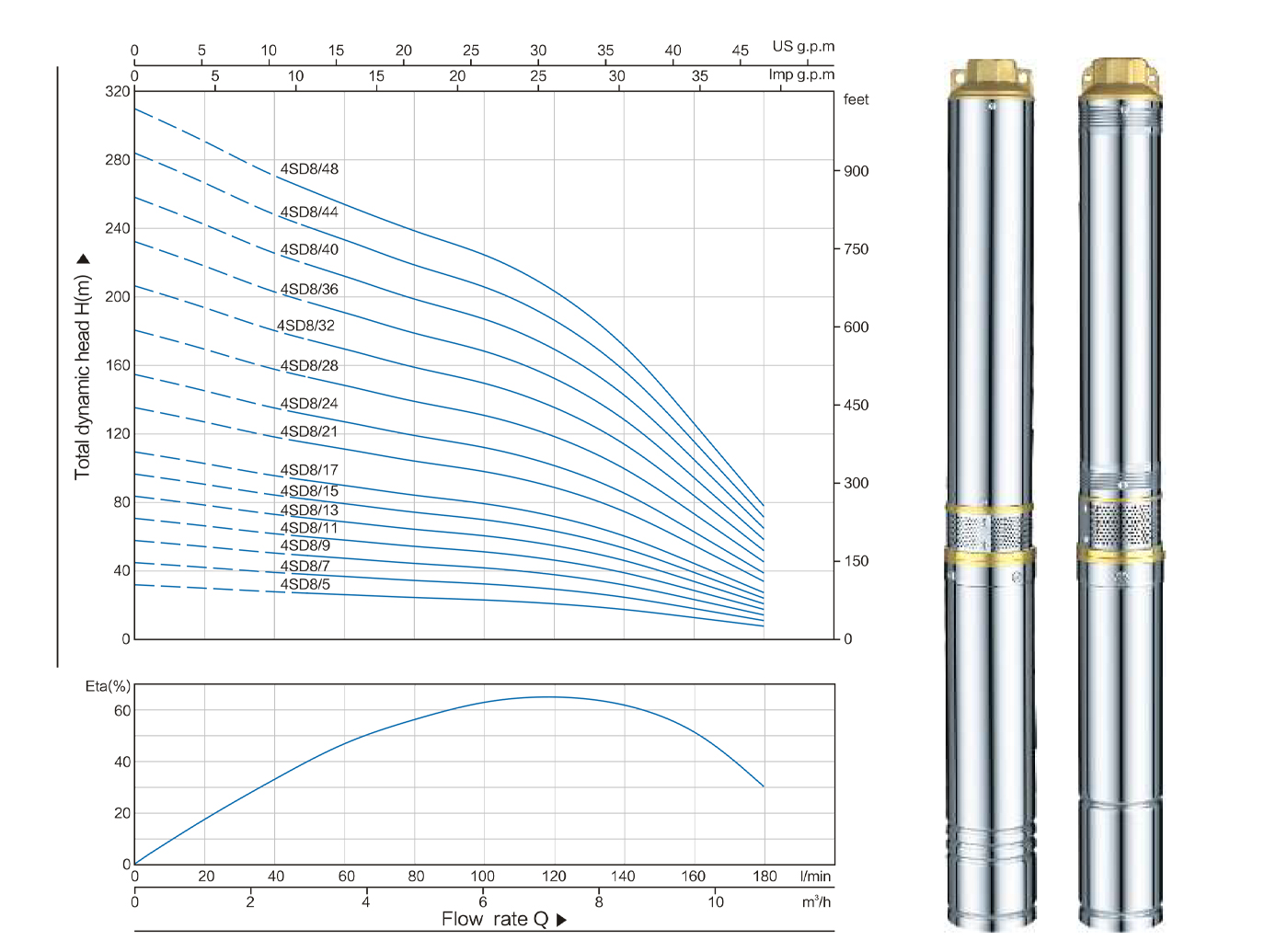

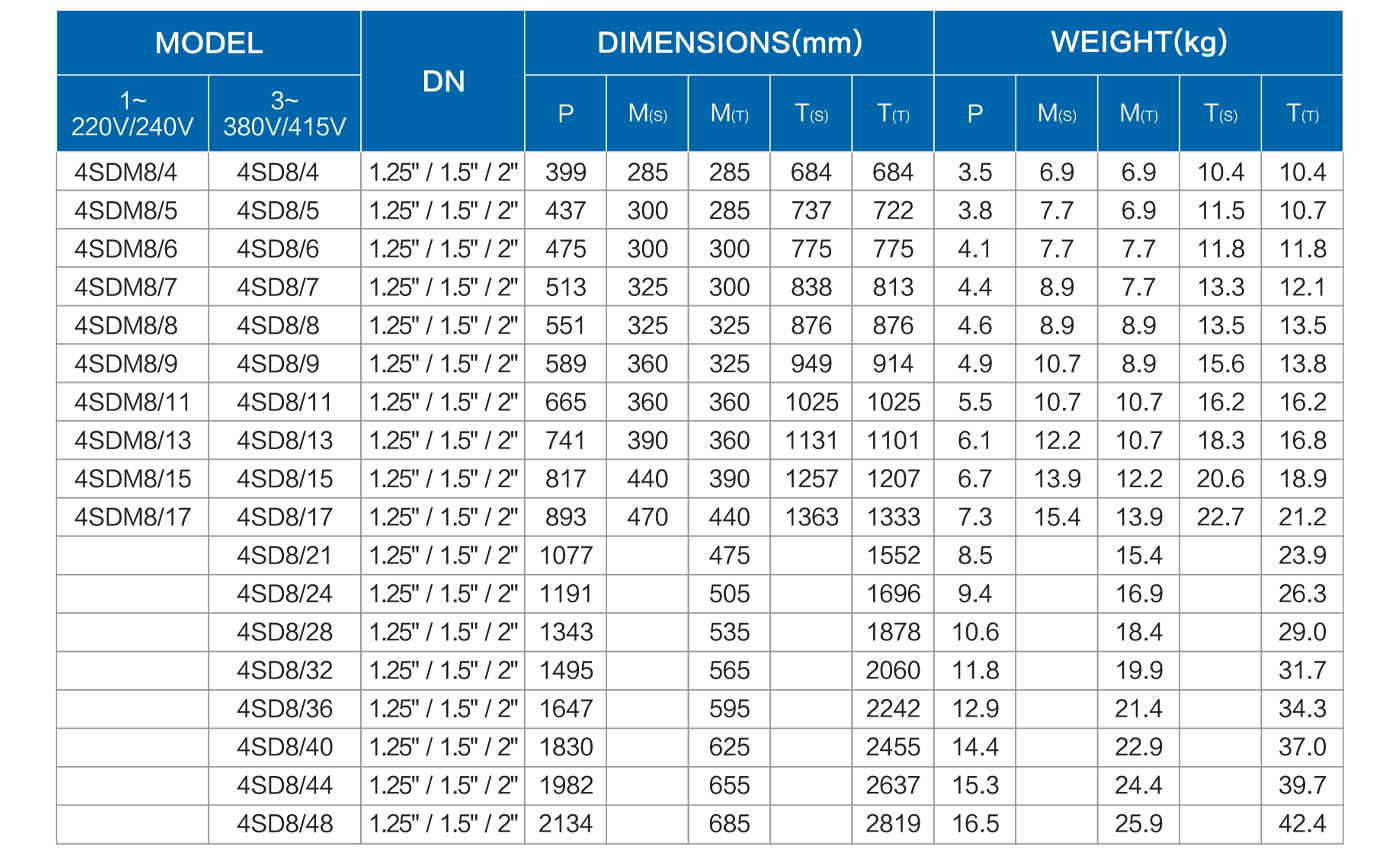

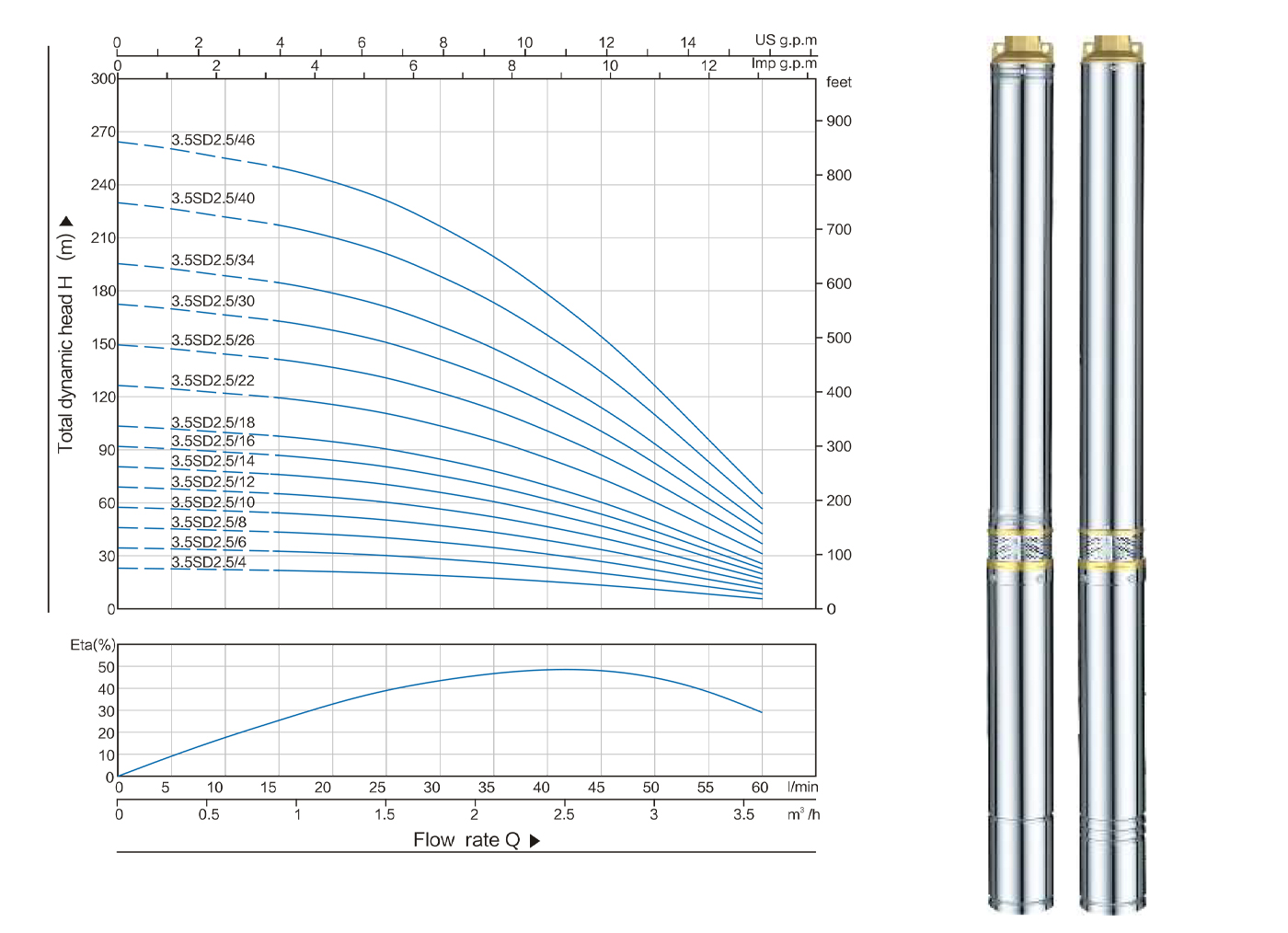

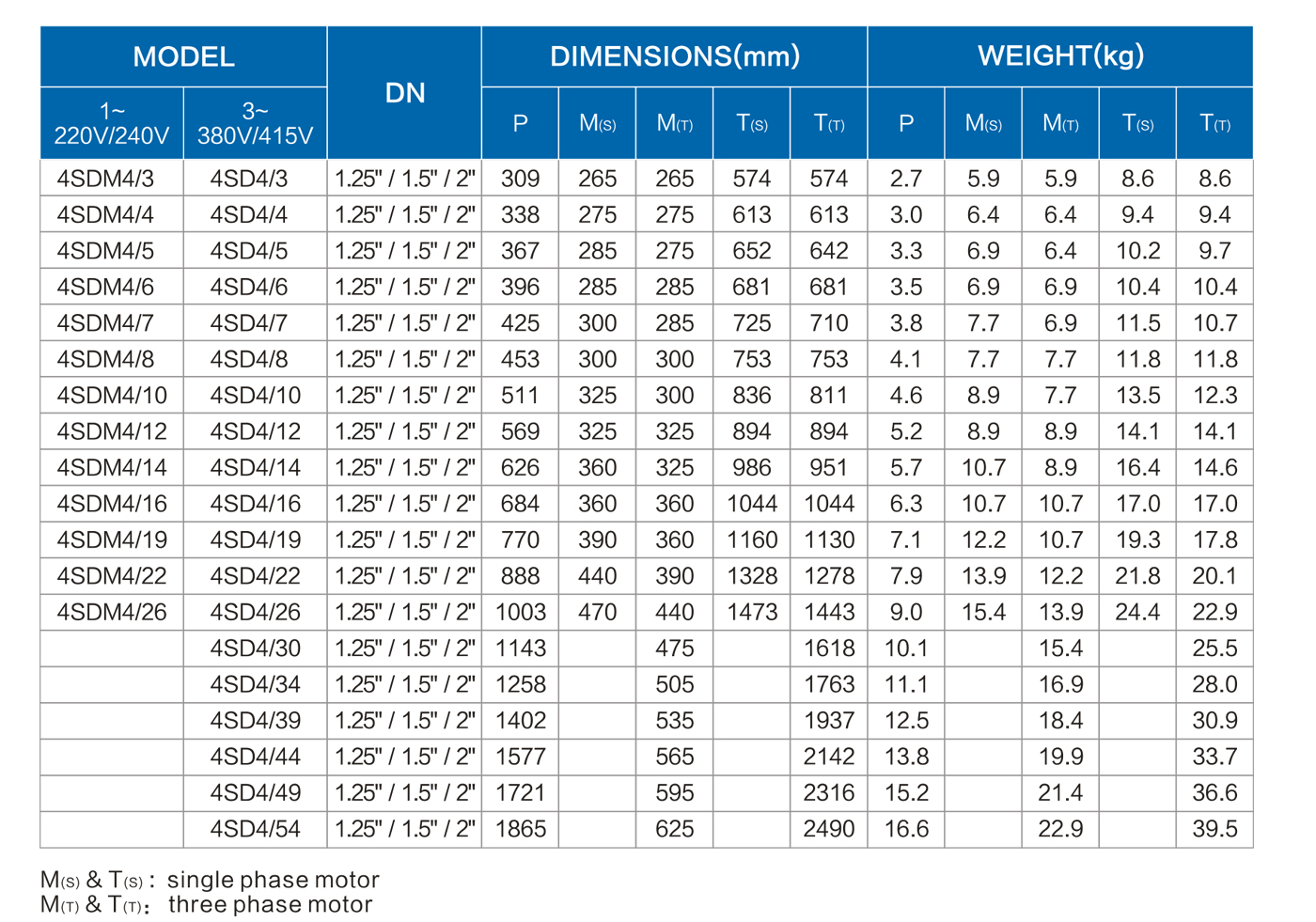

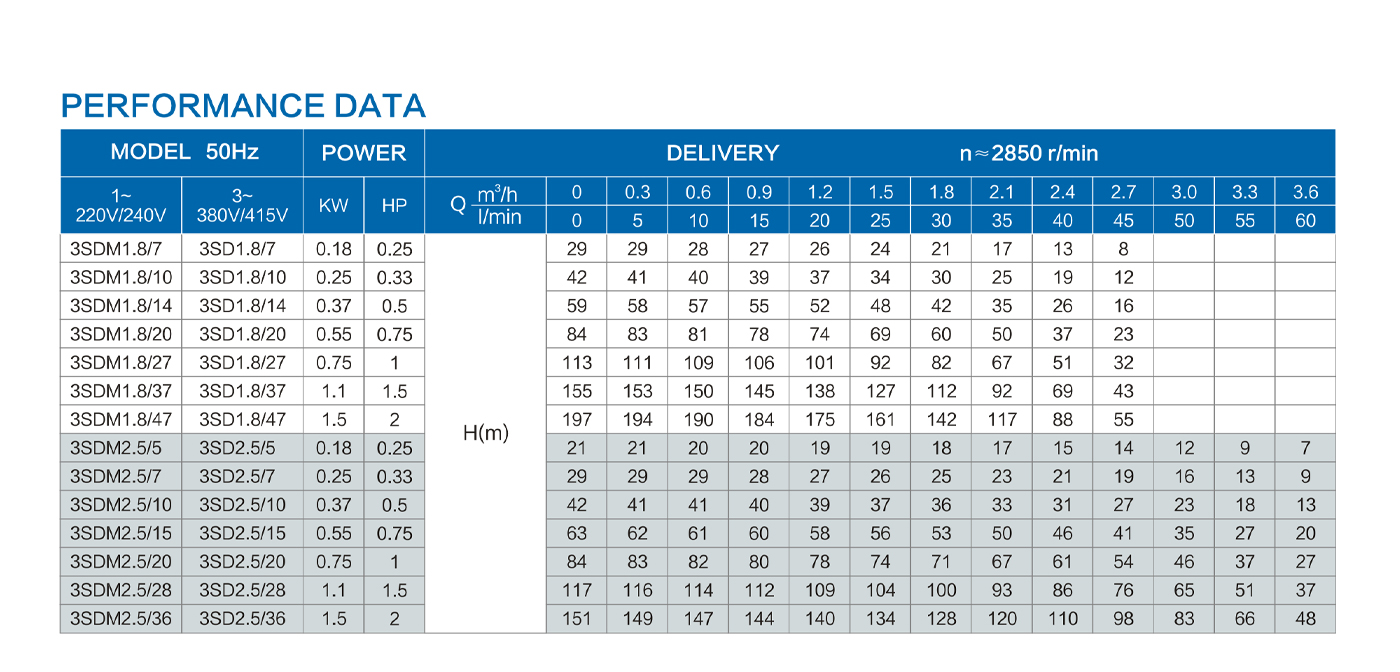

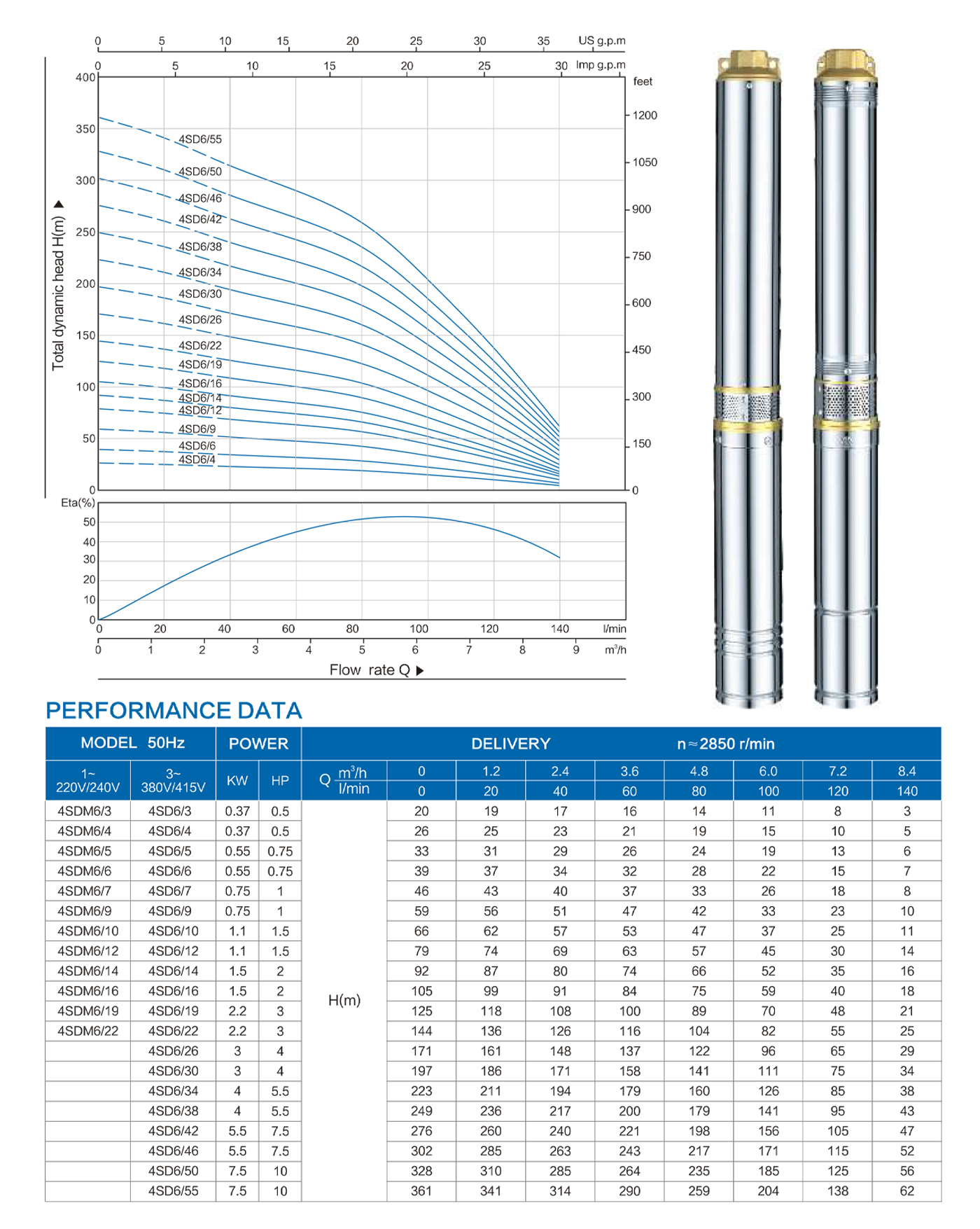

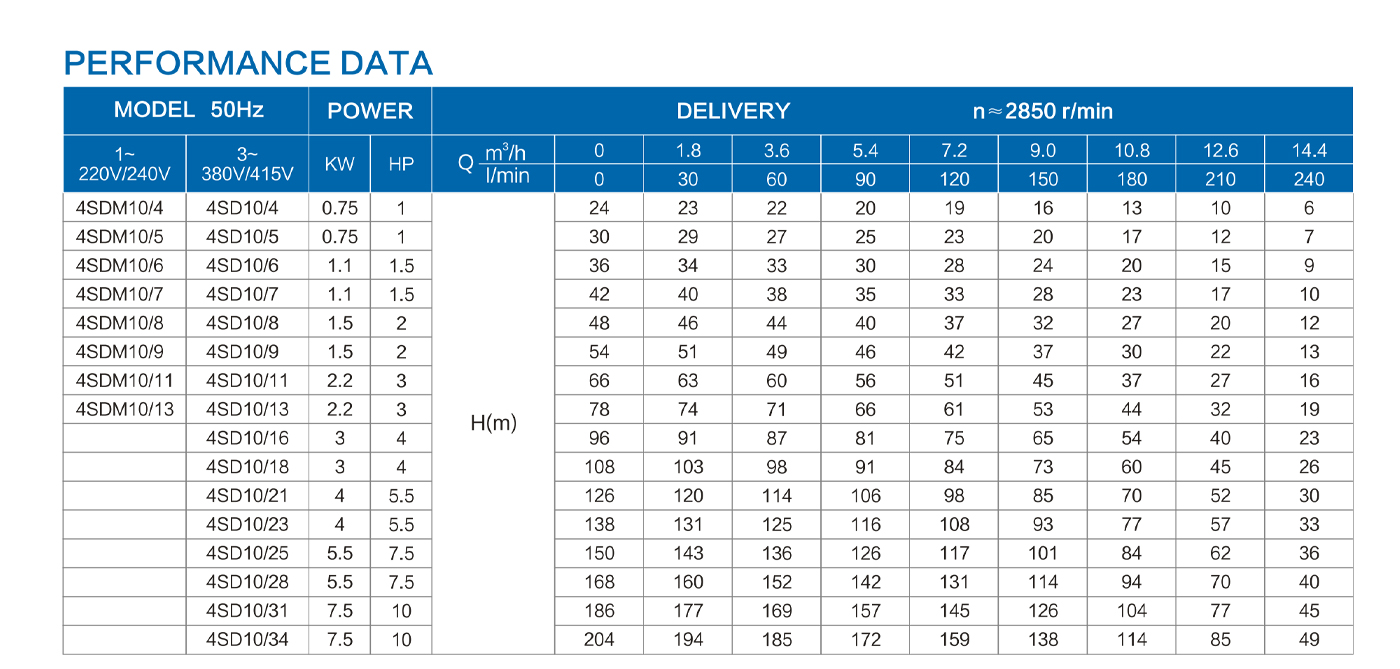

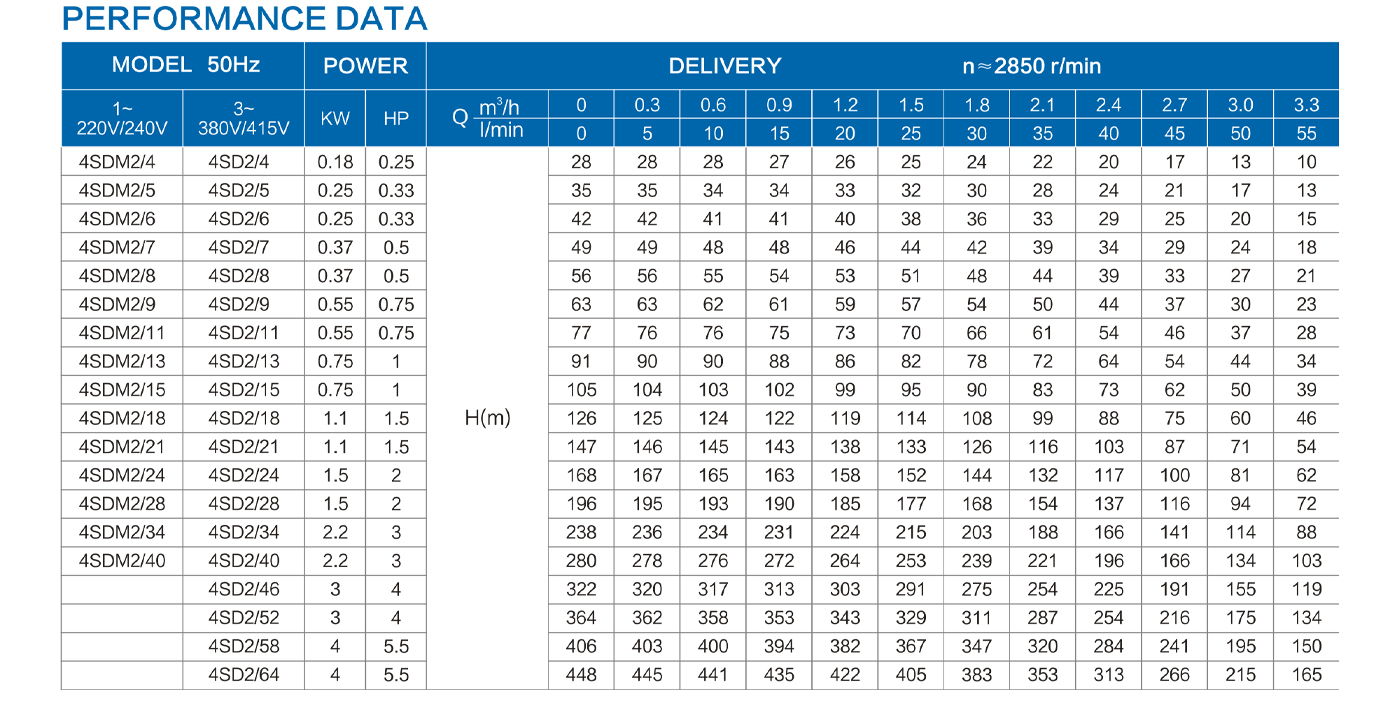

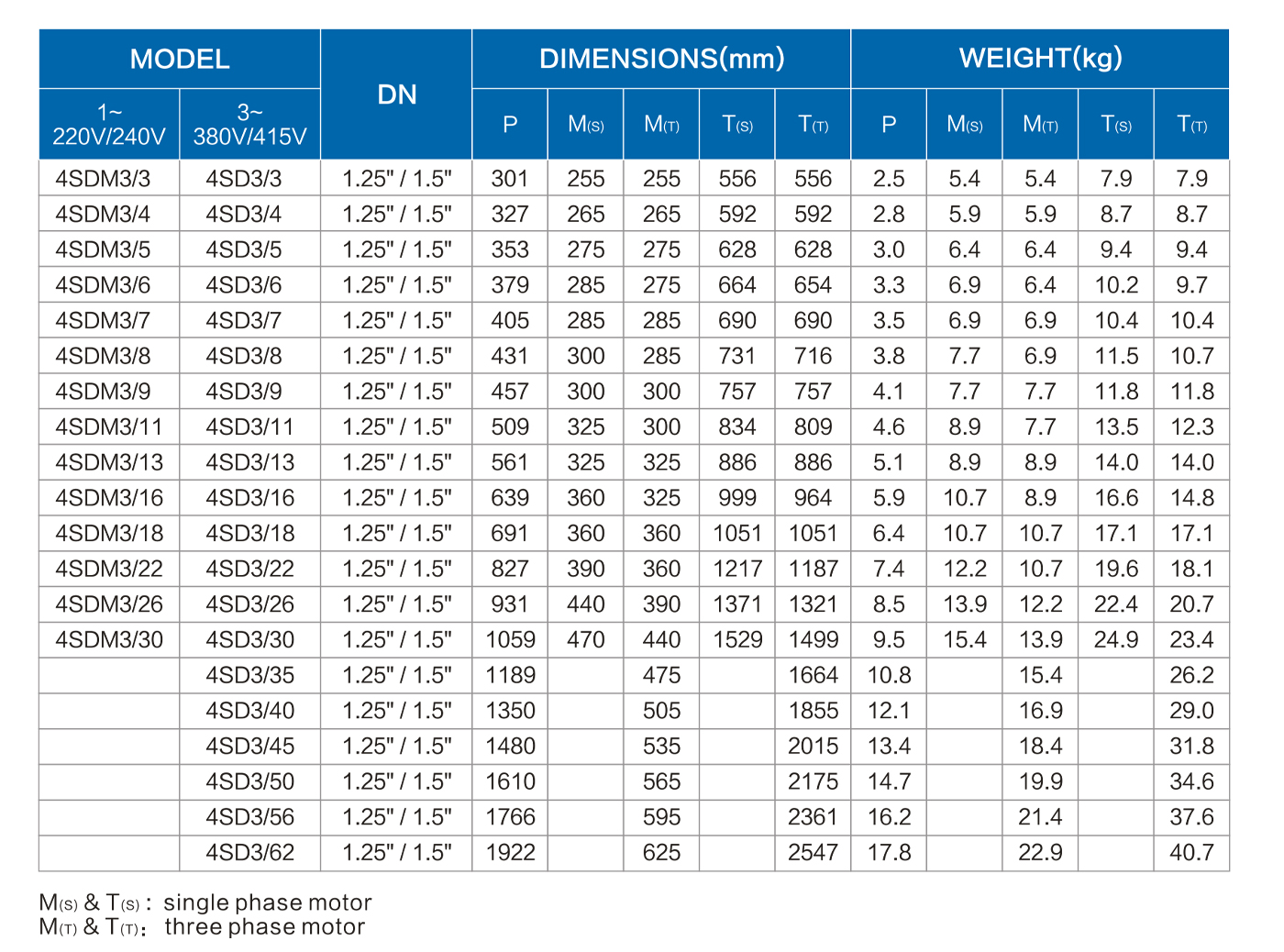

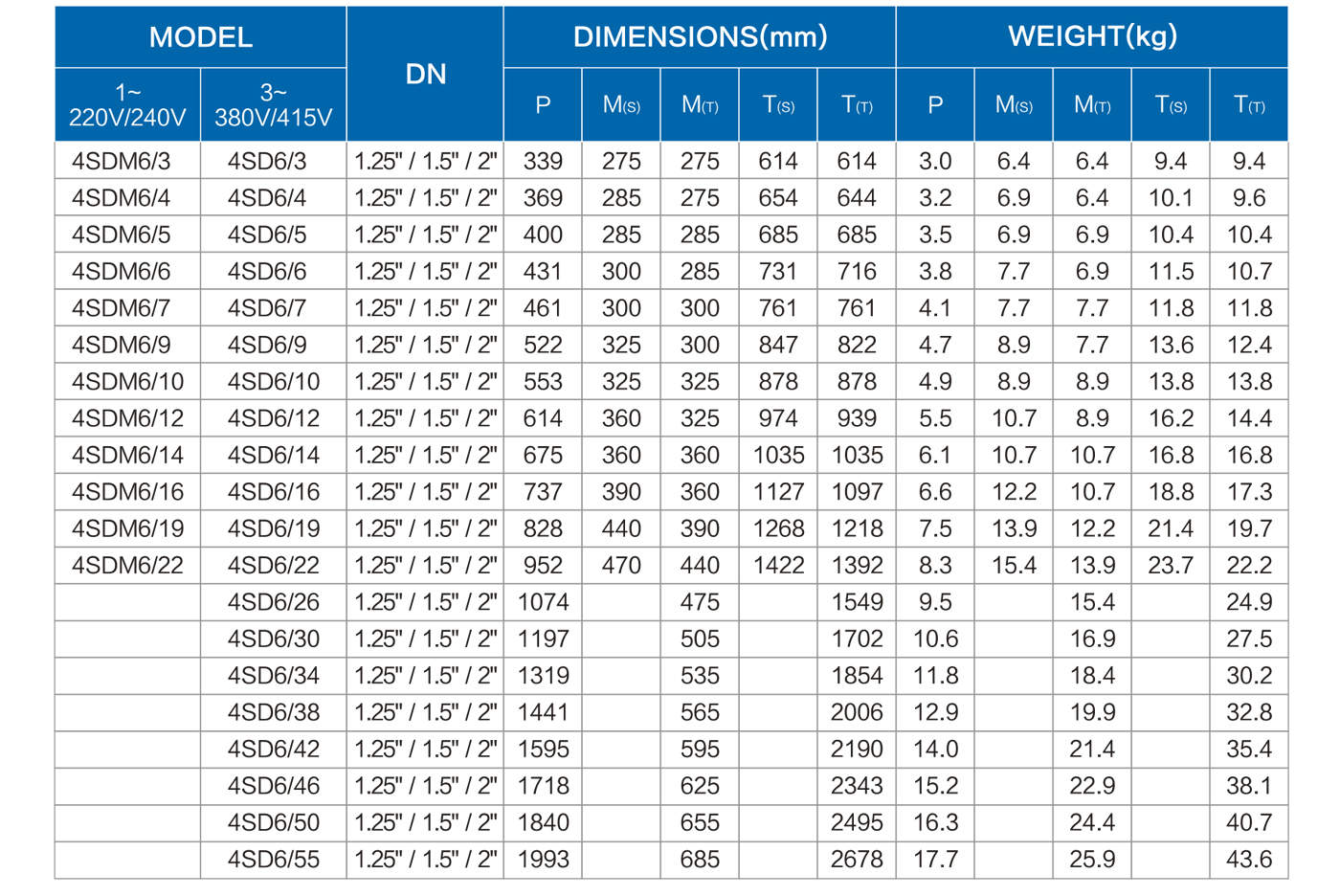

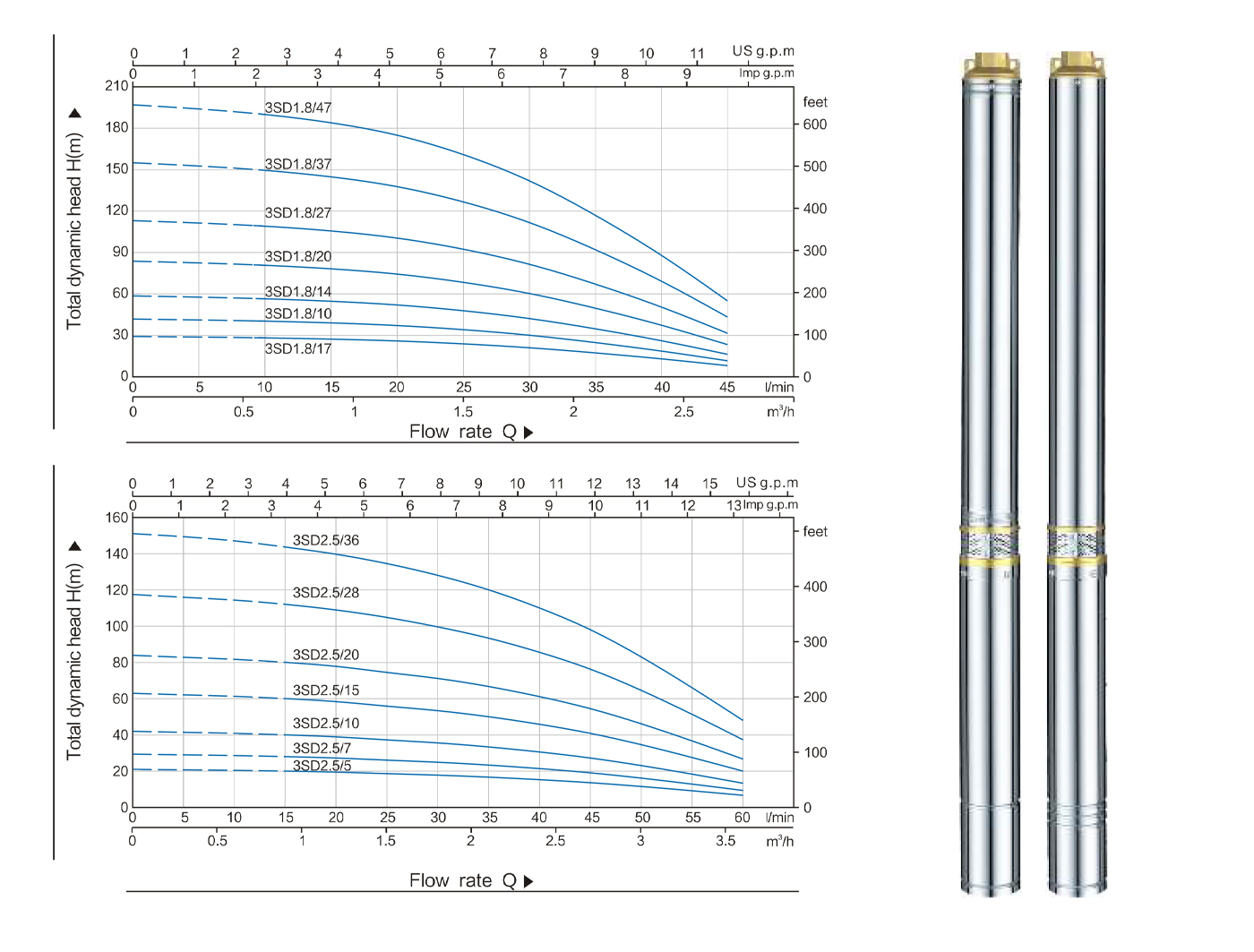

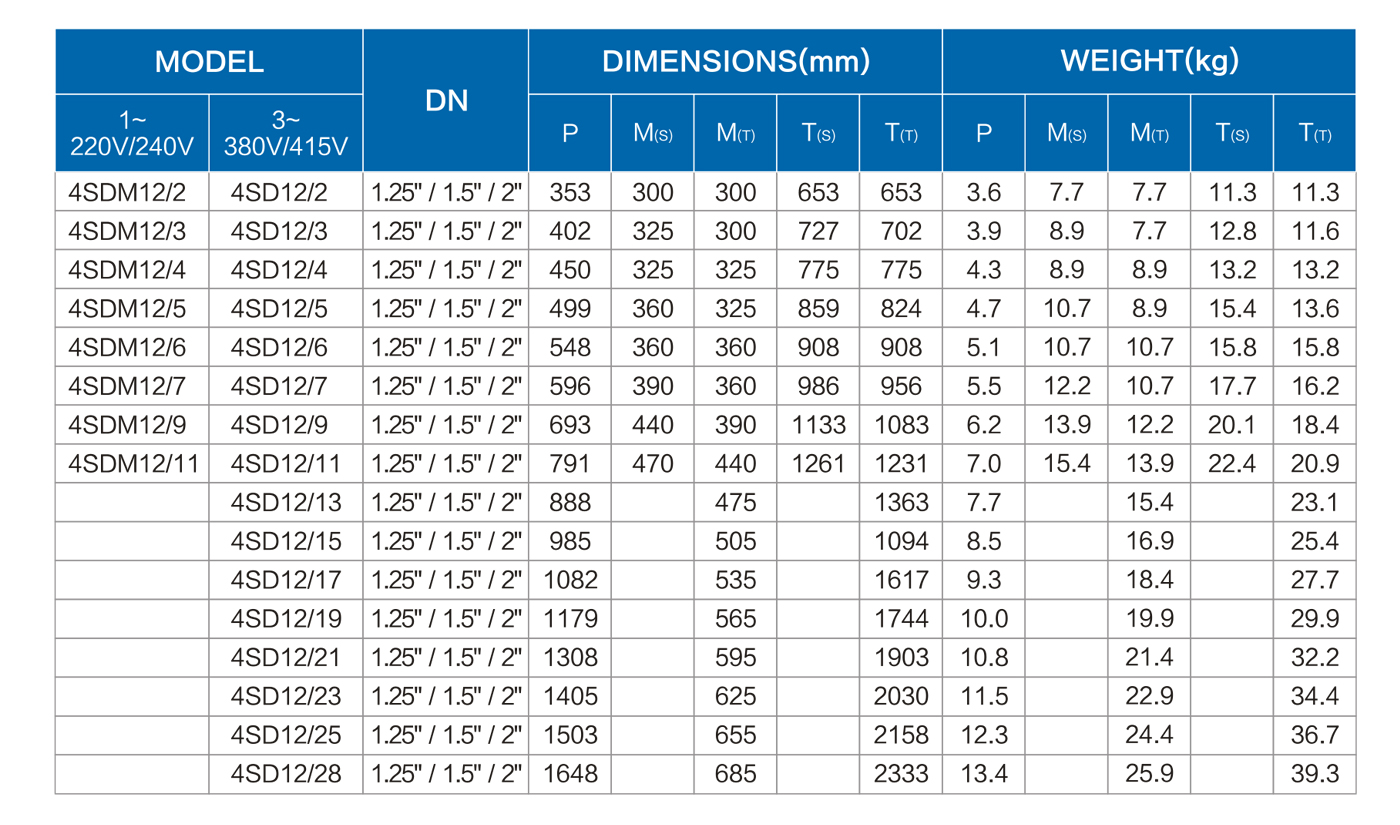

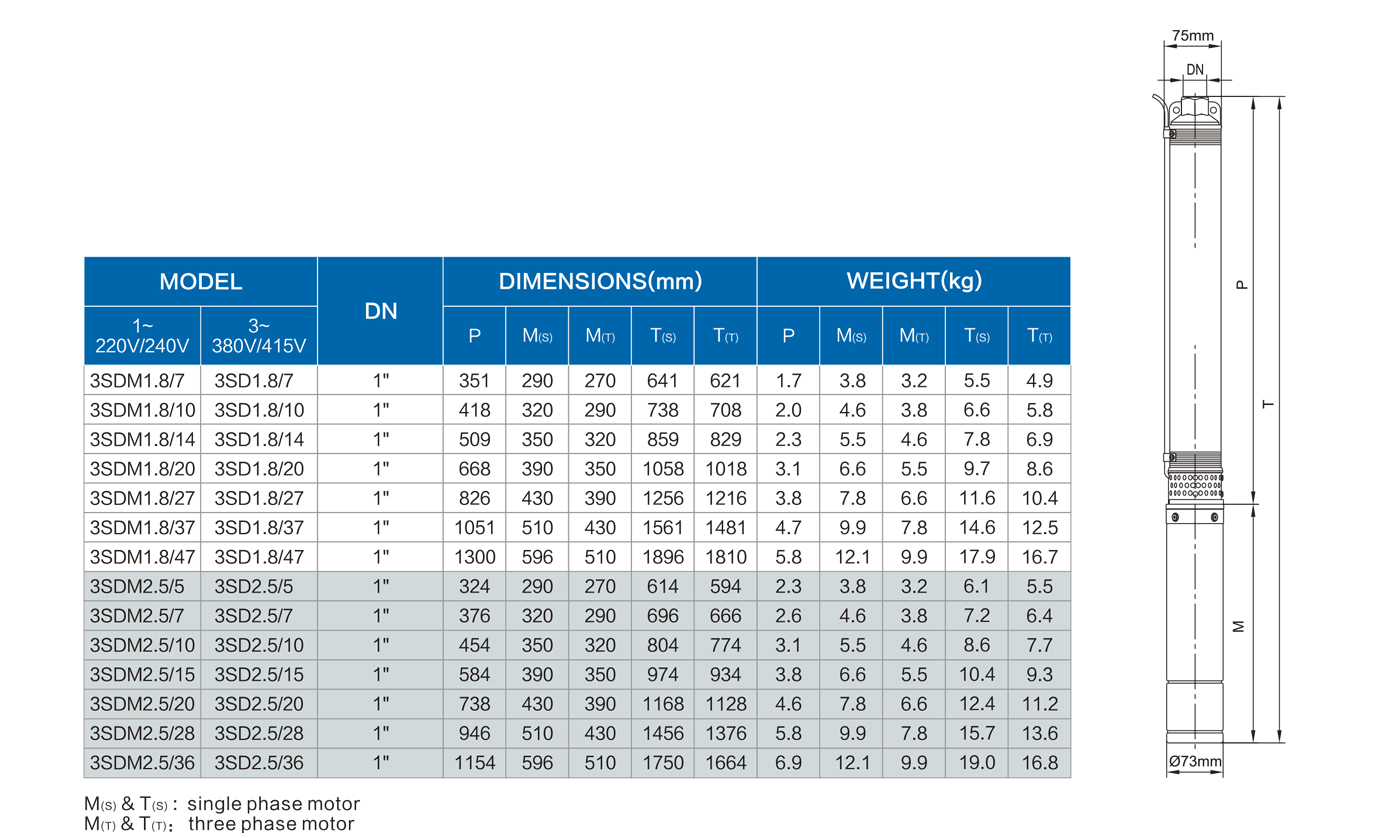

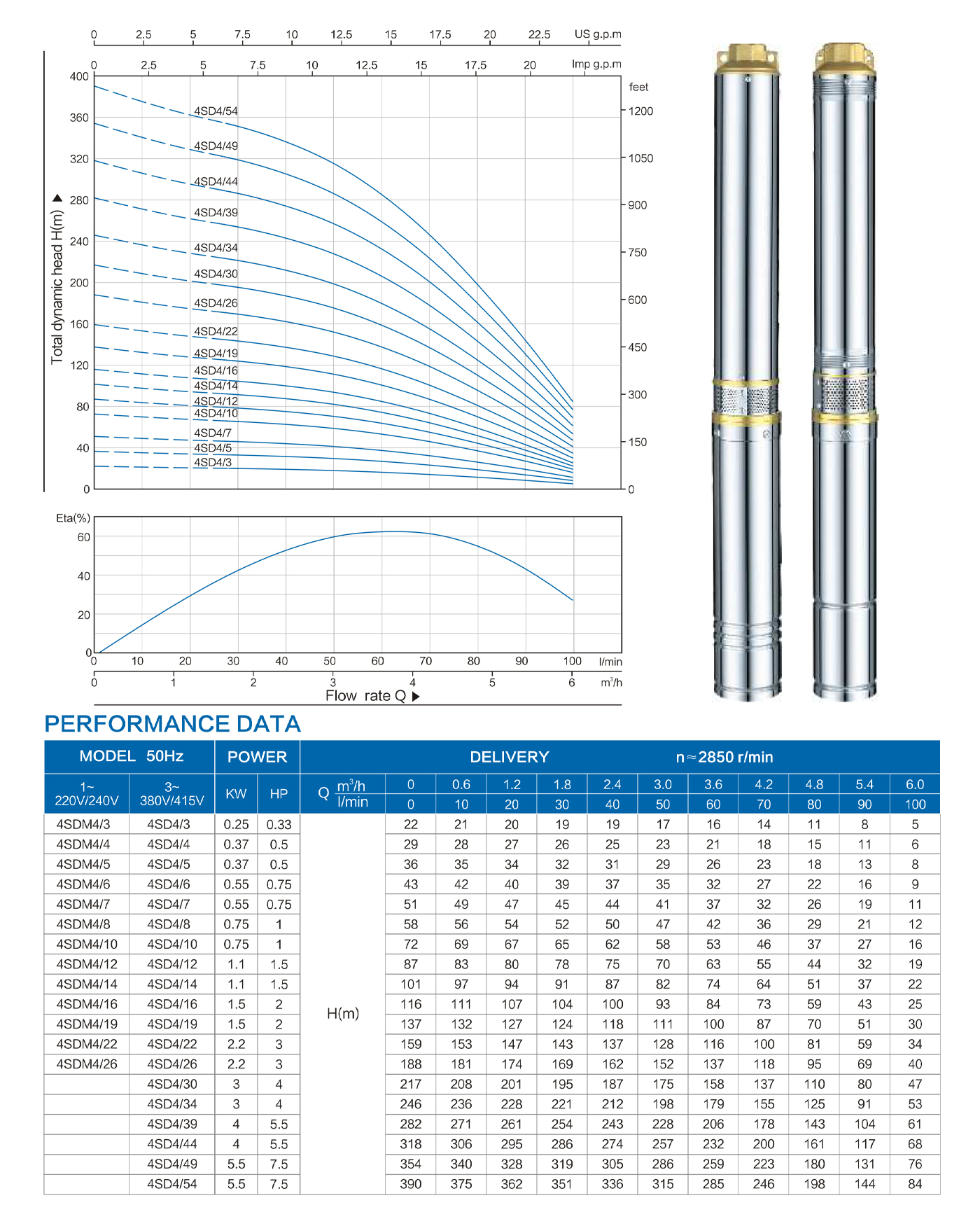

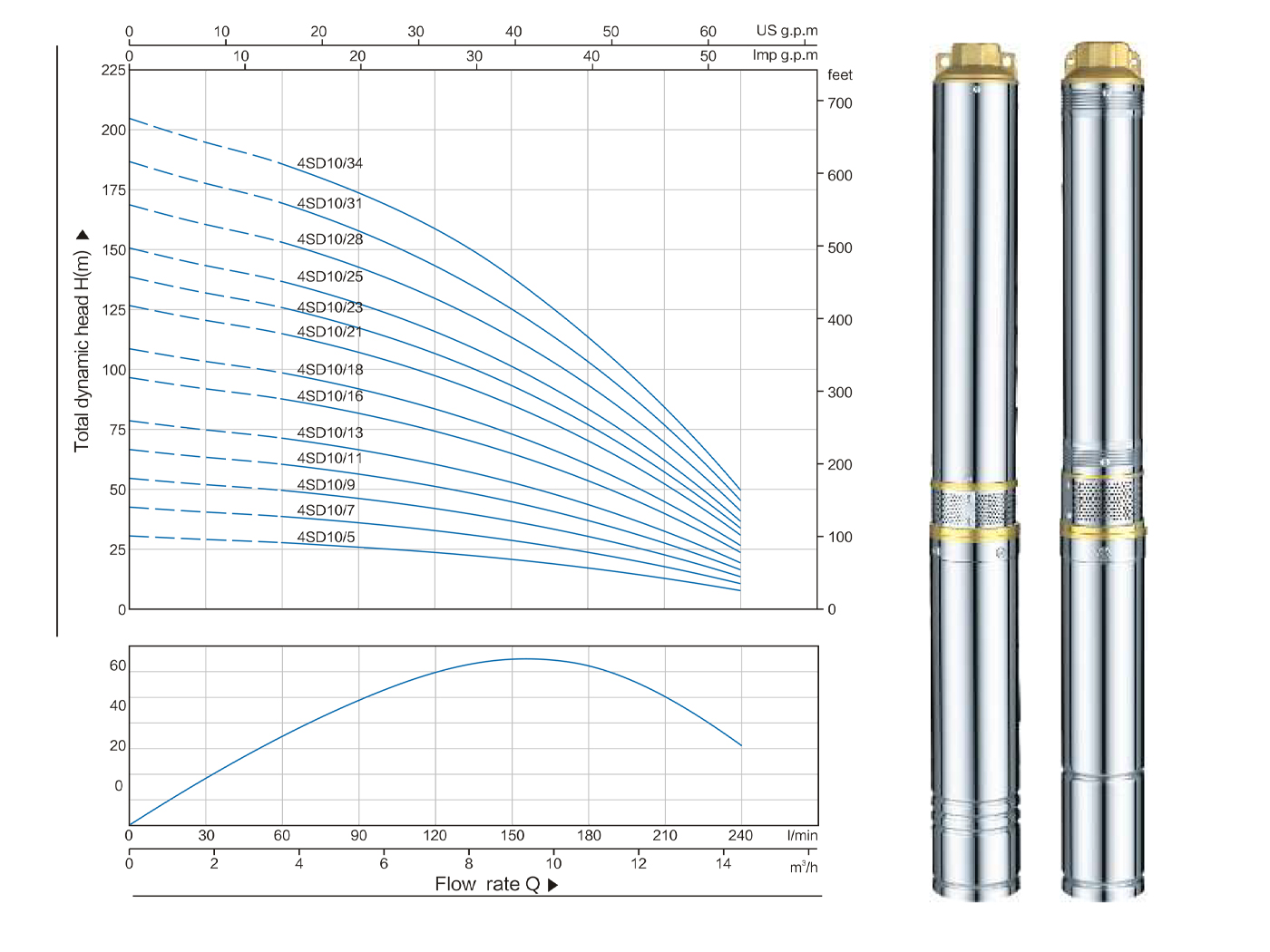

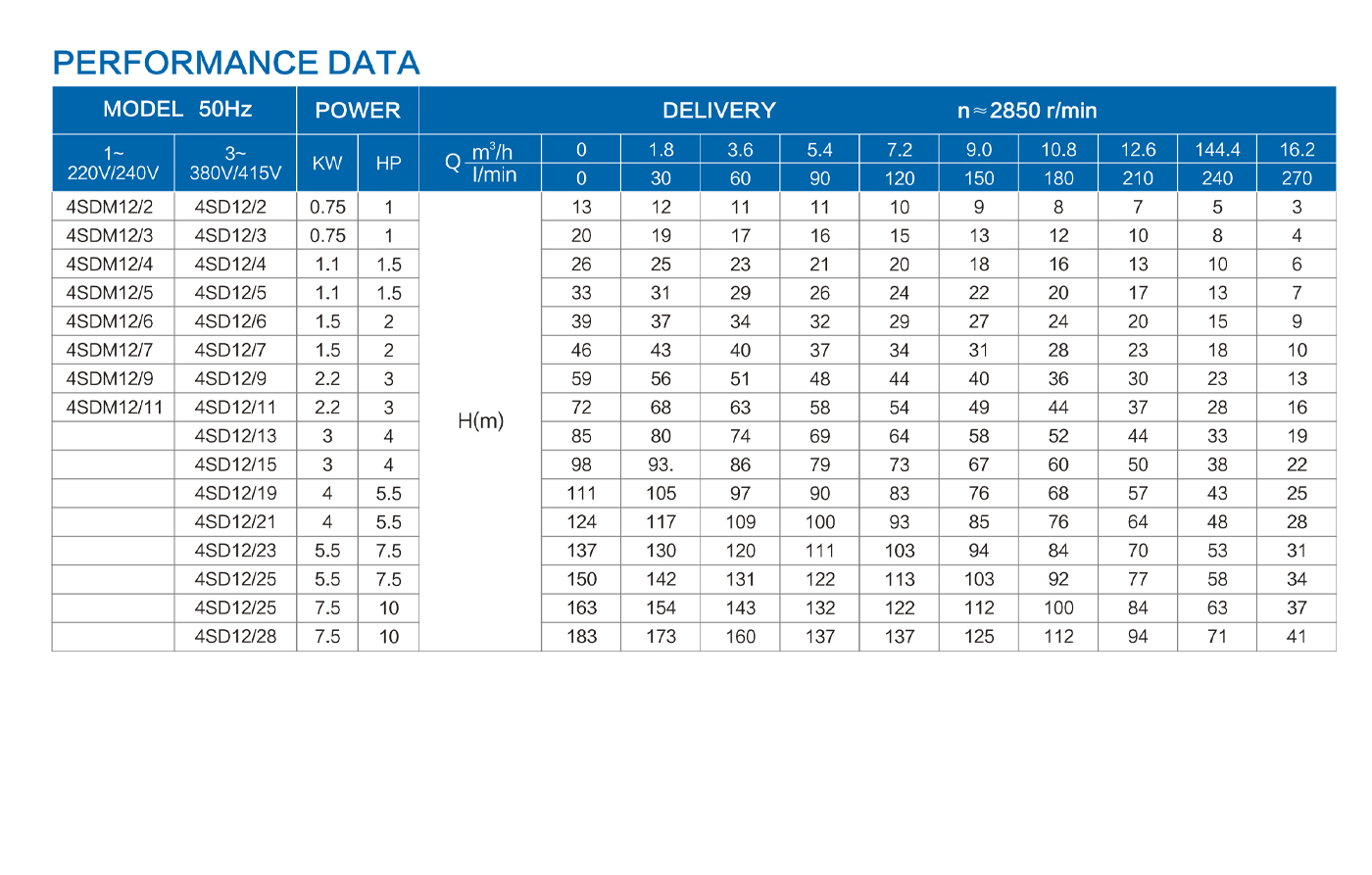

50Hz product parameter
60Hz product parameter
Videos
Q&A

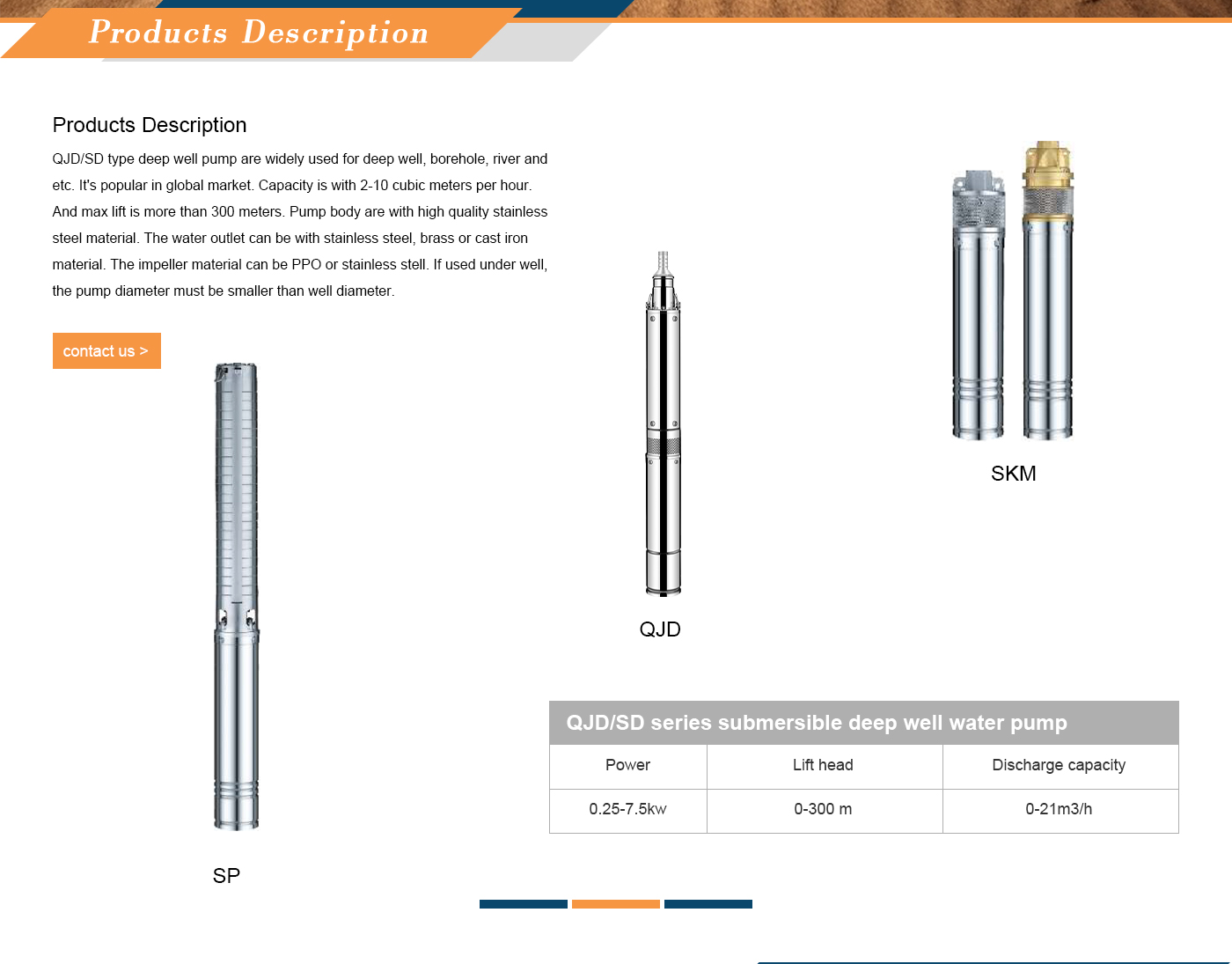

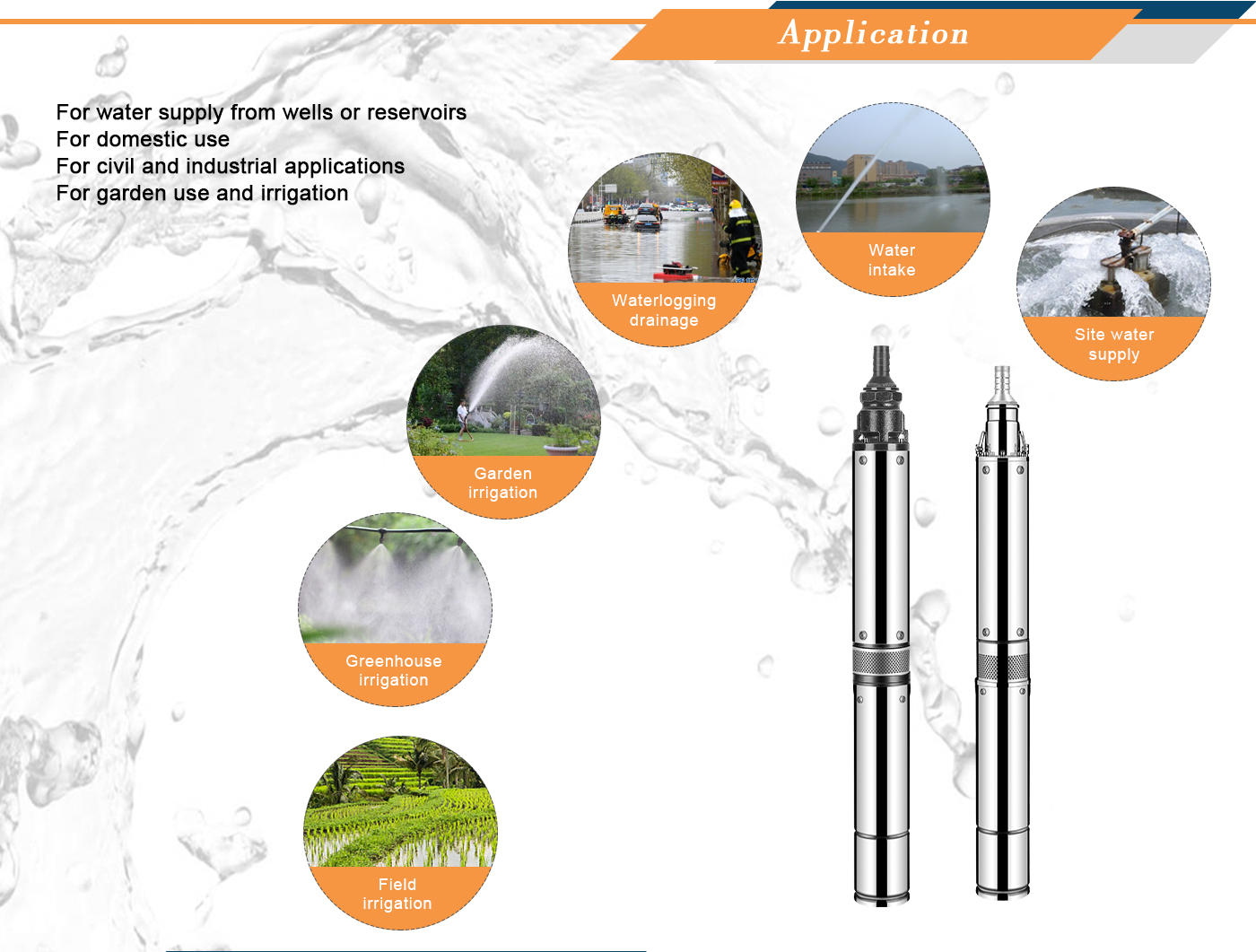

QJD/SD type deep well pump are widely used for deep well, borehole, river and etc. It's popular in global market. Capacity is with 2-10 cubic meters per hour. And max lift is more than 300 meters. Pump body are with high quality stainless steel material. The water outlet can be with stainless steel, brass or cast iron material. The impeller material can be PPO or stainless stell. If used under well, the pump diameter must be smaller than well diameter.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced QJD/SD series submersible deep well water pump for irrigation suppliers and wholesale QJD/SD series submersible deep well water pump for irrigation manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
