Clean Water Electric submersible water pump

Sewage Pump

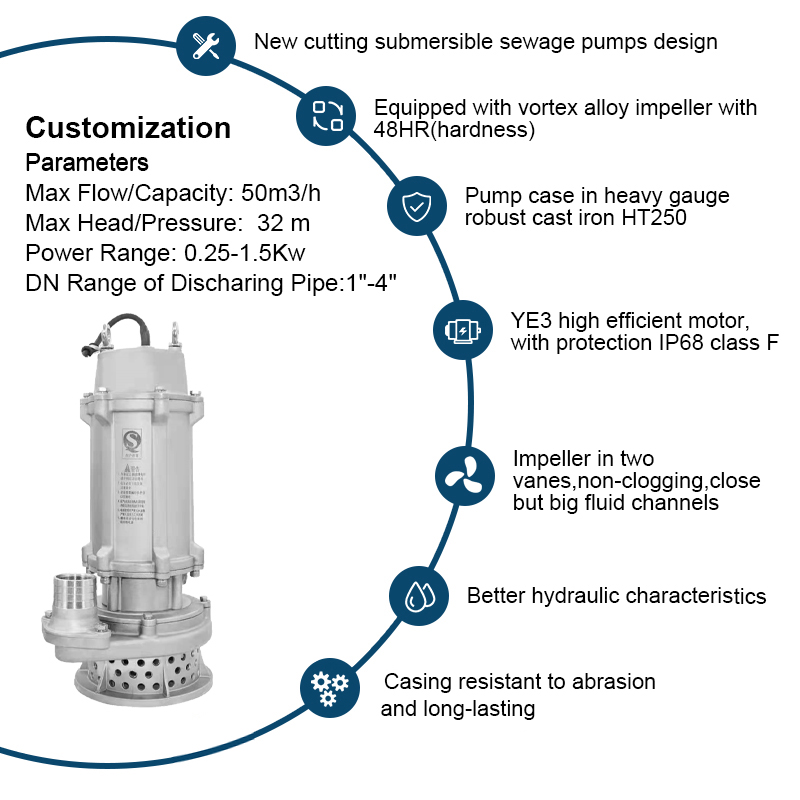

DN Range of Discharing Pipe:1"-4"
Max Flow/Capacity: 50m3/h
Max Head/Pressure: 32 m
Power Range: 0.25-1.5Kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

The shaft of electric pump is plated with hard chromium, which effectively improves the abrasion resistance and corrosion resistance of the shaft, and is conducive to the maintenance and disassembly of the impeller.
The motor is equipped with thermal protector, which can automatically disconnect the power supply to protect the motor in case of phase loss, overload and motor overheating.
Due to its small size and light weight, this series of electric pumps are especially suitable for underground pumping, farmland irrigation, garden irrigation and domestic water supply in rural areas. It can also be used to remove industrial water, water supply and drainage for construction and aquaculture.

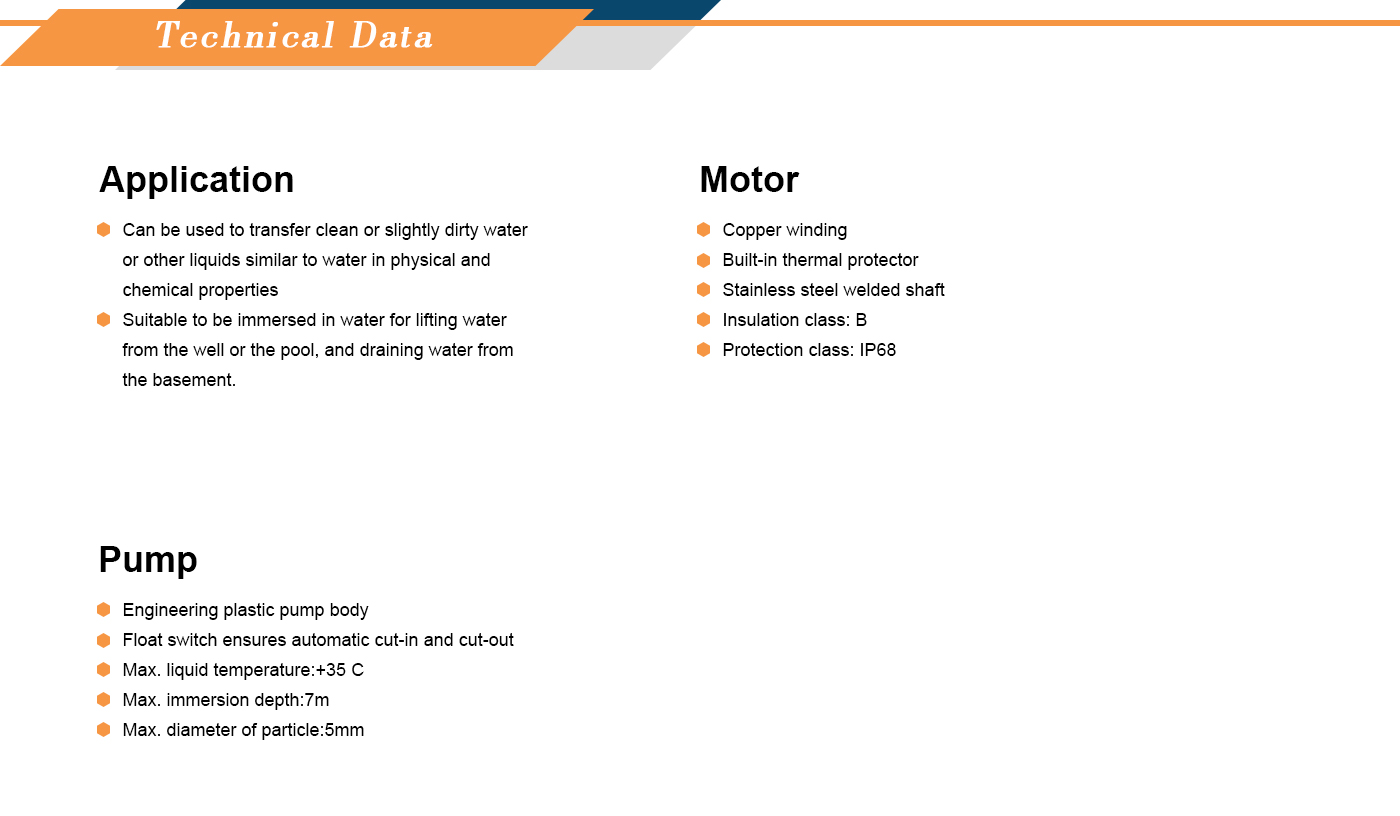

The pump could delivery water or liquid that physical and chemical similar to water.Liquid temperature shall not higher than 35 ºC.And the max diameter of particle is 5 mm.

Product Details

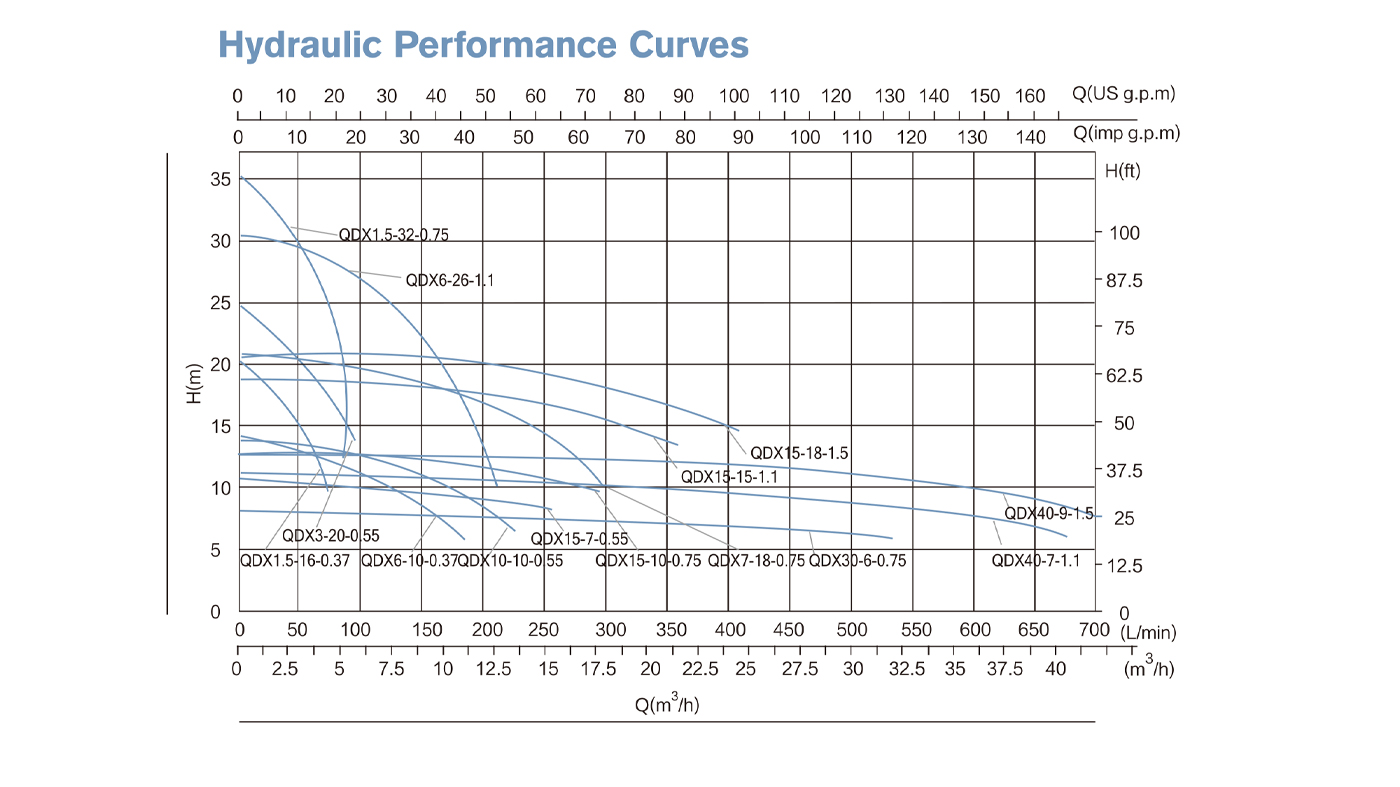

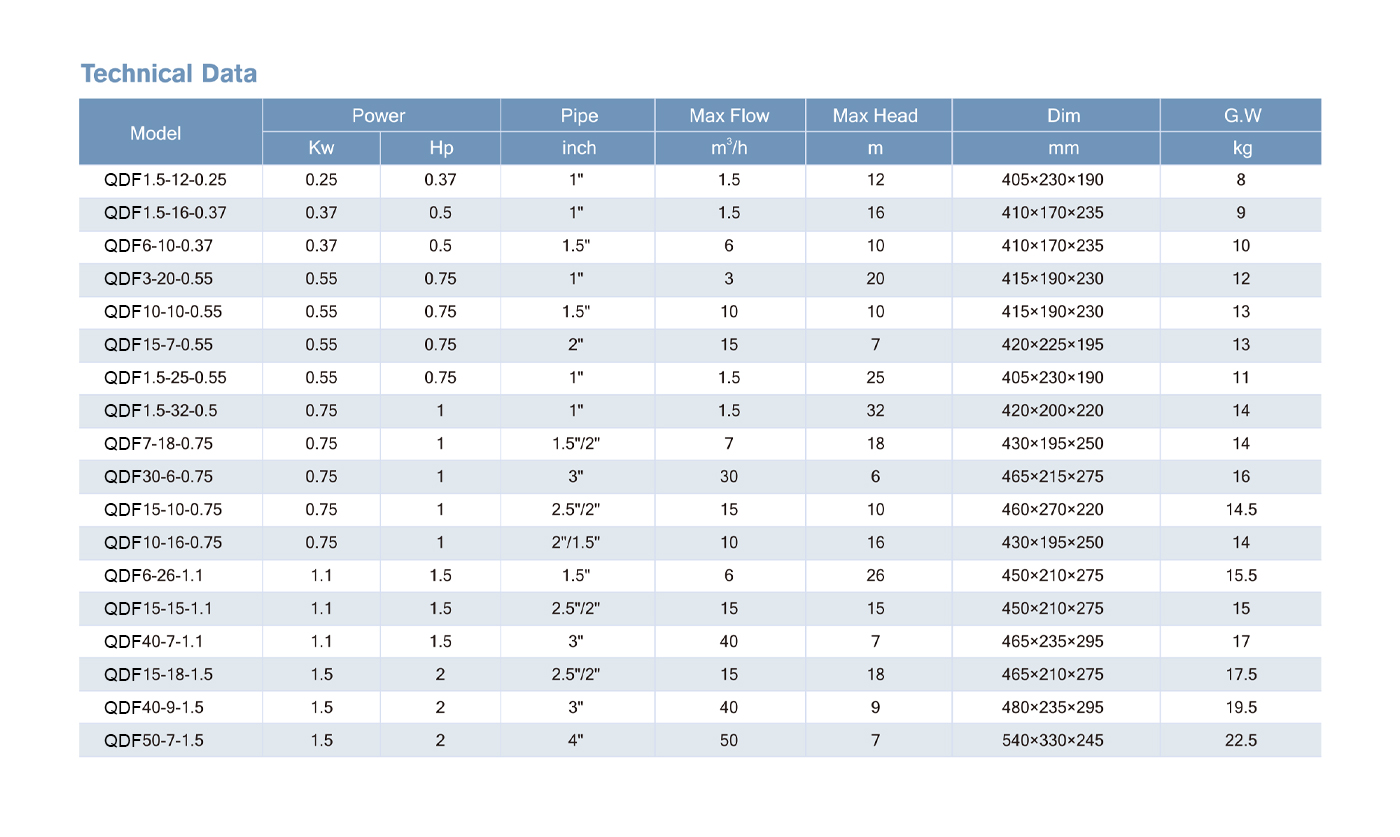

50Hz product parameter
60Hz product parameter
Videos
Q&A

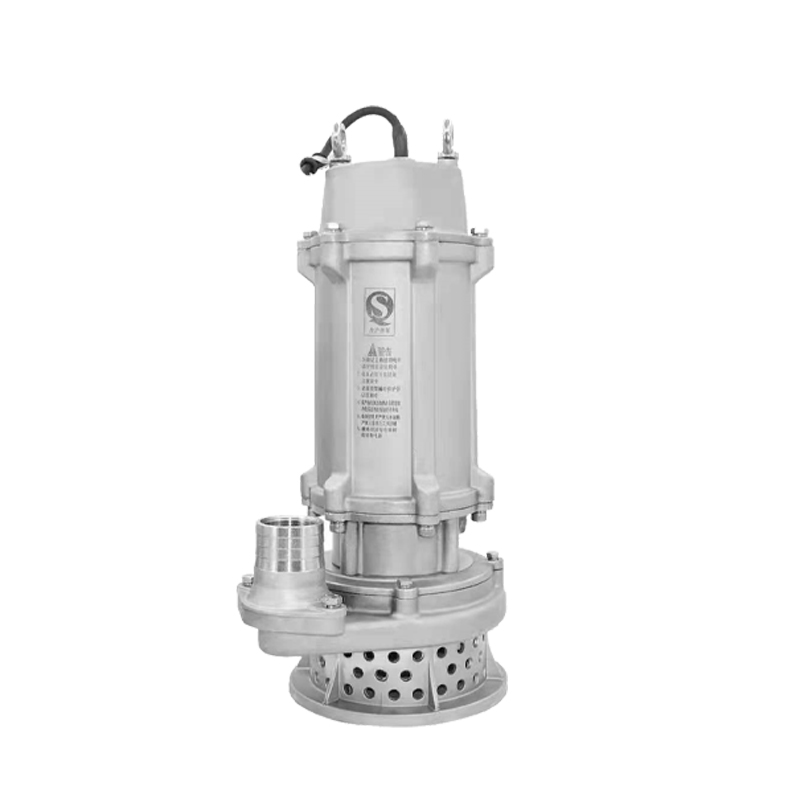

WQF series submersible pump consist of pump, seal and motor, ,and equipmented with protection apparatus.It is designed for clean water, widely used for drawing water from well, farm irrigation, garden, building construction, breeding industry, and daily life. Moreover, it has small volume and light weight, more easy to use.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced Clean Water Electric submersible water pump suppliers and wholesale Clean Water Electric submersible water pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
